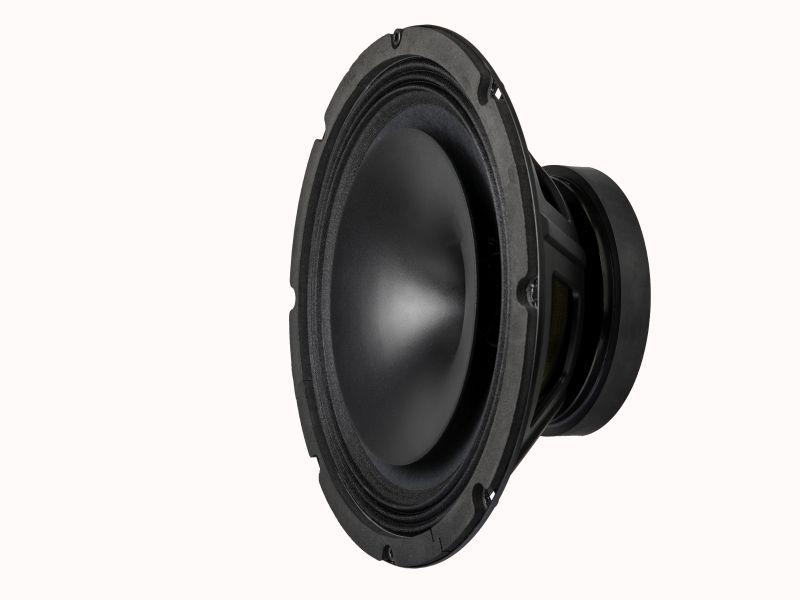

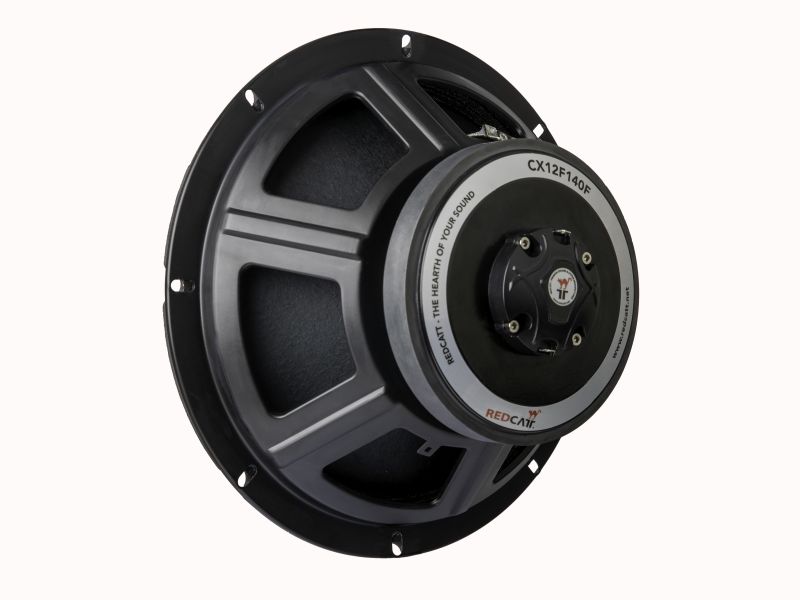

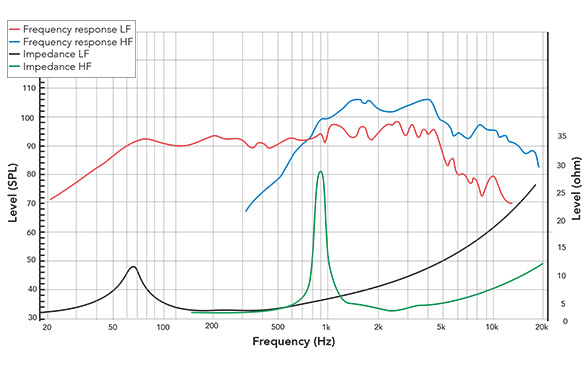

CX12F140F

CX12F-140FX8-376B — COAXIAL DRIVER ENCLOSURE & SYSTEM ANALYSIS
DRIVER IDENTITY
Code         : CX12F-140FX8-376B
Description  : 12" LF Coaxial / 1.4" HF Coaxial — Ferrite-Neodymium Hybrid
LF Section   : 12" / Ferrite+Neodymium / Carbon Fiber-Reinforced Paper / 200 W AES / 8 Ω
HF Section   : 1.4" / Ferrite+Neodymium / PEN Dome / 30 W AES / 8 Ω
Nominal Imp  : 8 Ω (both sections)
Category     : Coaxial
Brand        : REDCATT
Method       : Broken-in
Note         : Description field states 150 W LF; AES Power field (200 W) used as authoritative.

THIELE-SMALL PARAMETERS
--- LF SECTION ---
Fs           : 56 Hz
Re           : 5.5 Ω
Qes          : 0.54
Qms          : 6.53
Qts          : 0.50
  Qts verify : 1 / (1/0.54 + 1/6.53) = 1 / (1.852 + 0.153) = 1/2.005 = 0.499 ≈ 0.50 ✓
Vas          : 63.9 L
Sd           : 530.93 cm²
Sensitivity  : 96.83 dB (2.83 V / 1 m)
Mms          : 50.3 g
Rms          : 2.71 N·s/m
Cms          : 0.16 mm/N
Bl           : 13.4 T·m
  Bl verify  : √(ω₀ × Mms × Re / Qes) = √(351.86 × 0.0503 × 5.5 / 0.54) = √180.3 = 13.43 T·m ✓
Le           : 0.70 mH
Lm           : 95.2 dB (1 W / 1 m, 8 Ω)
Xmax         : 3.9 mm (one-way linear)
Xmech        : 11.9 mm (one-way mechanical)
Xprot        : not provided in catalog data
AES Power    : 200 W (LF)
Cont. Power  : 400 W (LF)
Peak Power   : 800 W (LF)
VC Diameter  : 50.8 mm
VC Wire      : Copper (solid — differs from CX8/CX10 CCAW; improves thermal conductivity
               at cost of higher VC mass; appropriate for 200 W AES power handling)
Former       : Glass Fiber
L-Winding    : 15.38 mm LF / 2.5 mm HF (field value "1538/2.5" — European decimal artifact)
  Xmax check : (15.38 − 8 T-plate) / 2 = 3.69 mm (geometric); stated 3.9 mm (Δ = 0.21 mm;
               likely Xmax defined from BL linearity limit, not purely geometric overhang)
Cone         : Carbon fiber-reinforced paper pulp (Paper CF)
Spider       : Nomex
T-Plate      : 8 mm
Surround     : Fabric

--- HF SECTION ---
Fs           : 1,000 Hz
Re           : 5.5 Ω
Lm           : 105 dB (1 W / 1 m, 8 Ω)
AES Power    : 30 W (HF)
Cont. Power  : 60 W (HF)
Peak Power   : 120 W (HF)
VC Diameter  : 35.6 mm
Former       : Kapton
Dome         : PEN (polyethylene naphthalate)
Surround     : PEN
Waveguide    : Integrated symmetrical aluminum horn (rotationally symmetric — identical H/V coverage)
Features     : Aluminum demodulation ring (Faraday ring); hybrid ferrite-neodymium shared magnetic circuit

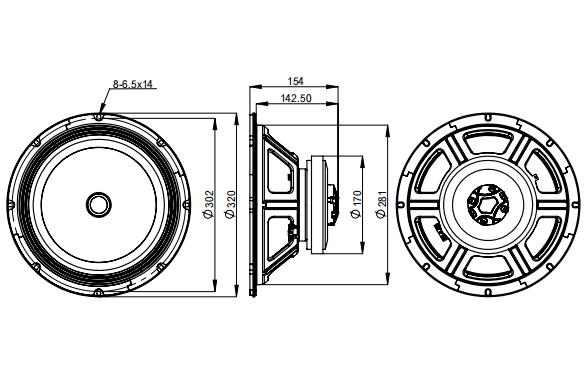

PHYSICAL DIMENSIONS
Overall Diameter       : 320 mm
Bolt Circle Diameter   : 302 mm
Baffle Cutout Diameter : 281 mm
Mounting Holes         : 8
Depth                  : 142.5 mm
NET Weight             : 5.3 kg
Packed Weight          : 6.1 kg
Magnet System          : Hybrid ferrite-neodymium (combined LF + HF magnetic circuit)
Basket                 : Steel

DERIVED VALUES
Vd (LF)           : Sd × Xmax = 530.93 cm² × 0.39 cm = 207.06 cm³
                    → BY FAR the largest Vd of all drivers across both families
                      (CX10: 69.28 cm³; CX8: 42.76 cm³; CX6: 28.2 cm³)
                      CX12 Vd is 3.0× CX10 and 7.3× CX6

Sensitivity Check (LF):
  Expected (2.83V) = Lm + 10·log₁₀(8.009 / Re)
                   = 95.2 + 10·log₁₀(8.009 / 5.5)
                   = 95.2 + 10·log₁₀(1.456)
                   = 95.2 + 1.631 = 96.831 dB
  CSV Sensitivity  : 96.83 dB
  Discrepancy      : 0.001 dB ✓ (perfect consistency — 8 Ω driver confirmed)

Max SPL (LF)      : Lm + 10·log₁₀(200 W) = 95.2 + 23.01 = 118.2 dB
                    → Highest LF MaxSPL in coaxial family
Max SPL (HF)      : 105 + 10·log₁₀(30 W)  = 105 + 14.77 = 119.8 dB
HF/LF Mismatch    : 105 − 95.2 = 9.8 dB (HF section requires 9.8 dB attenuation to match LF)
                    → LESS than CX10's 11.6 dB — trend reversal due to CX12's higher LF Lm
                      (95.2 dB vs 93.4 dB for CX10), driven by larger Sd, higher Bl, and
                      solid copper VC providing a more efficient motor at this cone area

f_Le (LF)         : Re / (2π × Le) = 5.5 / (2π × 0.00070) = 5.5 / 0.004398 = 1,251 Hz
                    → LOWEST f_Le of all drivers across both families
                    → f_Le falls WITHIN the recommended crossover range (see crossover section)

f_beam (LF)       : c / (π × r_cone); r_cone = √(530.93 / π) = √(169.01) = 13.00 cm
                    f_beam = 34,400 / (π × 13.00) = 34,400 / 40.84 = 842 Hz
                    → LOWEST f_beam of all drivers across both families
                      (CX10: 1,043 Hz; CX8: 1,327 Hz; CX6: 1,635 Hz)

f_array           : c / (2 × OD) = 34,400 / (2 × 32.0 cm) = 34,400 / 64.0 = 538 Hz (OD = 320 mm)
                    → LOWEST f_array of all drivers across both families
                      (CX10: 672 Hz; CX8: 830 Hz; CX6: 1,040 Hz)

Zobel Network (LF):
  Rz = Re         : 5.5 Ω
  Cz = Le / Re²   : 0.70 × 10⁻³ / (5.5²) = 0.70 × 10⁻³ / 30.25 = 23.1 μF
                    (largest Cz in coaxial family; reflects highest Le)

ENCLOSURE RECOMMENDATIONS — LF SECTION
Qts = 0.50 → BOUNDARY CASE (exactly on 0.50 threshold between vented-leaning and sealed-preferred)
Both sealed and vented alignments are valid; designer has genuine freedom of choice.

For PA column applications with active subwoofer below 80–120 Hz:
  Sealed Qtc = 1.00–1.20 (compact, good transient, simple build) — RECOMMENDED
For extended low-frequency PA monitor or studio-use applications:
  Sealed Qtc = 0.707–0.85 (Butterworth at 63.9 L — practical for a 12" PA cabinet)
  Vented with 100 mm port — extends bass below Fs; requires larger cabinet

--- SEALED ALIGNMENTS ---

Qtc   Vb (L)   fc (Hz)   f−3dB (Hz)   Notes
0.707   63.9    79.2       79.2        Butterworth — practical 12" PA floor cabinet size
0.85    33.8    95.2       81.8        Extended bass; medium PA enclosure
1.00    21.3   112.0       88.0        Compact PA column; recommended for sub-assisted use
1.20    13.4   134.4       98.9        Very compact; sub crossover ≥ 120 Hz
1.50     8.0   168.0      117.4        Minimal enclosure; sub crossover ≥ 140 Hz

Calculations:
  Vb = Vas / ((Qtc/Qts)² − 1)
  fc = Fs × (Qtc/Qts)
  f-3dB: u = [−(2 − 1/Qtc²) + √((2 − 1/Qtc²)² + 4)] / 2; Ω = √u; f-3dB = Ω × fc

Example (Qtc = 1.00):
  Vb = 63.9 / ((1.00/0.50)² − 1) = 63.9 / (4.0 − 1) = 63.9 / 3.0 = 21.3 L
  fc = 56 × (1.00/0.50) = 112.0 Hz
  u = [−1 + √5] / 2 = 0.618; Ω = 0.786; f-3dB = 0.786 × 112.0 = 88.0 Hz

Note: Unlike CX10 (132 L Butterworth), CX12's lower Qts = 0.50 makes the Butterworth
alignment viable at 63.9 L — a reasonable cabinet for a 12" PA driver.

--- VENTED ALIGNMENTS (secondary / equal-weight option) — 100 mm round port ---

Port area    : Ap = π × (50 mm)² = 7,854 mm² = 78.54 cm²
End corr.    : flanged end 0.85 × 50 = 42.5 mm; unflanged end 0.61 × 50 = 30.5 mm; total 73.0 mm
Port formula : Leff = (Ap × c²) / (4π² × Fb² × Vb); c = 344 m/s; 4π² = 39.478
Velocity     : v_peak = Vd × 2π × Fb / Ap (SI units)

Vb (L)   Fb (Hz)   Leff (mm)   L_phys (mm)   v_peak (m/s)   Limit check
  30       45        387.7         315           7.45         ≤ 22 m/s PA ✓
  50       35        384.4         311           5.80         ≤ 17 m/s hi-fi ✓
  80       28        375.3         302           4.64         ≤ 17 m/s hi-fi ✓

Near-constant port length: physical lengths span 302–315 mm (13 mm range) — Helmholtz
  equation cancellation of opposing Vb / Fb trends holds at 100 mm port across this family.
  The 30L/45Hz option (7.45 m/s) is within PA limits but above hi-fi limits; suitable for
  PA-only applications.

CROSSOVER AND SYSTEM INTEGRATION — HF/LF COAXIAL
HF minimum operating frequency (horn-loaded, est. from HF Fs = 1,000 Hz) : ~1,100–1,200 Hz
LF f_beam onset (cone directivity narrows):                                    842 Hz
LF f_Le (inductance rolloff begins):                                         1,251 Hz

CRITICAL — MOST CONSTRAINED CROSSOVER IN COAXIAL FAMILY:
  f_beam_LF = 842 Hz is 0.5 octave below the HF horn minimum. The LF cone is beaming
  significantly at any frequency above 842 Hz, including at the crossover point.
  f_Le = 1,251 Hz falls INSIDE the recommended crossover range; the LF section's natural
  inductance rolloff (6 dB/oct above f_Le) provides useful high-frequency attenuation
  that assists the crossover transition.

Recommended crossover: 1,200–1,500 Hz (LR4 minimum; LR6 preferred).

  Design considerations:
  1. At 1,200 Hz: LF cone is 0.51 oct above f_beam (beaming well established);
     f_Le natural rolloff is just beginning (1,251 Hz). Coaxial co-location moderates
     practical off-axis impact. The LF inductance rolloff assists the filter response.
  2. At 1,500 Hz: LF is 0.84 oct above f_Le; natural LF acoustic rolloff is ~5 dB
     from inductance alone — significantly eases the electronic filter requirement.
  3. Zobel network (5.5 Ω + 23.1 μF) must be fitted before crossover filter design.
     Without Zobel: the LF impedance rise due to Le alters the crossover filter
     response substantially. With Zobel: impedance is flat, filter works as designed,
     and the acoustic Le rolloff remains available as a natural benefit.
  4. Active / DSP crossover: model Le rolloff explicitly in the LF section transfer
     function (6 dB/oct highpass character above f_Le = 1,251 Hz).

HF/LF Level Matching:
  Mismatch = 9.8 dB (reduced vs CX10's 11.6 dB due to CX12's higher LF Lm)
  Passive L-pad (HF, 5.5 Ω nominal): series ≈ 2.2 Ω, shunt ≈ 1.5 Ω gives ~9 dB
                                       attenuation — fine-tune by measurement.
  Active / DSP: −9.8 dB gain trim on HF amplifier channel.

Column Array Directivity — Three Regimes (CX12 in vertical line array):
  < 538 Hz       : Array-controlled directivity (determined by column geometry and driver count)
  538–1,500 Hz   : Transition zone — widest of all coaxial family members. f_beam (842 Hz)
                   falls in the lower portion of this zone. System directivity is complex:
                   individual driver beaming is established before the crossover point, and
                   the array coherence limit (538 Hz) is well below the crossover. This zone
                   must be measured, not modelled by simplified assumptions.
  > 1,500 Hz     : Horn-controlled directivity (integrated symmetrical aluminum horn).

  Note: The 320 mm OD makes CX12 the largest-format driver in the catalogue. In densely-packed
  vertical columns, the inter-driver distance equals the OD (320 mm), setting f_array = 538 Hz.
  For a single CX12 in a trapezoidal PA cabinet, directivity narrows gradually from ~538 Hz
  (array cancellation onset for closely-spaced pairs) upward.

Aluminum Demodulation Ring (Faraday Ring) in HF Section:
  Reduces Le non-linearity and intermodulation distortion in both sections.
  Particularly important for CX12 where f_Le (1,251 Hz) and the crossover zone overlap.

Solid Copper LF Voice Coil:
  Higher density than CCAW → increased Mms contribution (50.3 g total Mms — heaviest in family).
  Higher thermal conductivity → better heat transfer to former (glass fiber) at 200 W AES.
  Lower bulk resistivity than aluminum → same Re (5.5 Ω) achieved with shorter wire length
  compared to CCAW, reducing Mms penalty partially.
  Net result: solid copper preferred at this cone size / power level for thermal robustness
  despite the mass increase.

Carbon Fiber-Reinforced Paper Pulp Cone (LF):
  Same material as CX10; pushes breakup modes to higher frequencies relative to plain paper.
  Highest cone area of family (Sd = 530.93 cm²) means fundamental breakup is well above the
  crossover regardless of reinforcement, so CF provides incremental SPL and linearity benefit.

COAXIAL FAMILY COMPARISON TABLE (4 Drivers)

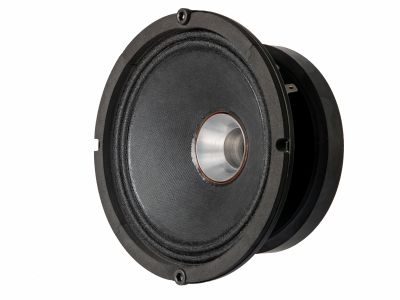

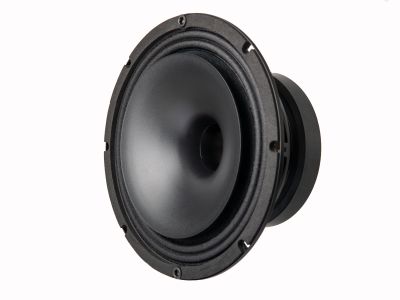

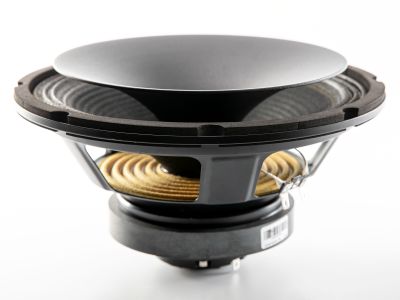

Parameter               CX6F140FX8X8   CX8F-140FX8X8  CX10F-140FX8   CX12F-140FX8
                        -361C          -374B           -375B           -376B
LF Cone Size            6.5"           8"              10"            12"
HF Waveguide            CNC Al wg.     Int. Al horn    Int. Al horn   Int. Al horn
Magnet                  Hybrid Fe+Nd   Hybrid Fe+Nd    Hybrid Fe+Nd   Hybrid Fe+Nd
AES LF / HF (W)         100 / 30       150 / 30        200 / 30       200 / 30
Nominal Imp. (Ω)        8              8               8              8
Fs LF (Hz)              121            86              75             56
Re LF (Ω)               5.4            5.6             5.5            5.5
Qts LF                  0.47           0.59            0.65           0.50
Vas LF (L)              4.4            10.7            24.2           63.9
Sd LF (cm²)             141.0          213.8           346.4          530.93
Xmax LF (mm)            2.0            2.0             2.0            3.9   ← Largest by far
Vd LF (cm³)             28.2           42.76           69.28          207.06 ← Largest (3× CX10)
Bl (T·m)                9.27           9.93            10.36          13.4  ← Largest
Le LF (mH)              0.45           0.47            0.49           0.70  ← Highest
Mms LF (g)              —              —               31.2           50.3
Lm LF / HF (dB)         93.8 / 101     92.44 / 103     93.4 / 105     95.2 / 105
MaxSPL LF / HF (dB)     113.8 / 115.8  114.2 / 117.8   116.4 / 119.8  118.2 / 119.8
HF/LF Mismatch (dB)     7.2            10.56           11.6           9.8  (trend reversal)
f_Le LF (Hz)            1,911          1,896           1,786          1,251 ← Lowest
f_beam LF (Hz)          1,635          1,327           1,043          842   ← Lowest
f_array (Hz)            1,040          830             672            538   ← Lowest
OD (mm)                 165.2          207             256            320
Enclosure Preference    Vented         Sealed          Sealed         Sealed/Vented (boundary)
Crossover Range (Hz)    1,500–2,000    1,400–1,600     1,200–1,500    1,200–1,500
Zobel (Ω / μF)          5.4 / 15.4     5.6 / 15.0      5.5 / 16.2     5.5 / 23.1
VC Wire (LF)            CCAW           CCAW            CCAW           Copper (solid)
Cone Material (LF)      Paper          Paper           Paper CF       Paper CF
Former (LF)             —              Glass Fiber     Glass Fiber    Glass Fiber
Basket                  Steel          Steel           Steel          Steel
Sensitivity consist.    ✓ 0.01 dB      ✓ 0.01 dB       ✓ 0.00 dB      ✓ 0.001 dB

TRENDS ACROSS COAXIAL FAMILY (6.5" → 8" → 10" → 12"):
  • Fs decreasing (121 → 86 → 75 → 56 Hz) — consistent with increasing moving mass
  • Vd growing rapidly (28.2 → 42.76 → 69.28 → 207.06 cm³) — CX12 Xmax jump (2→3.9 mm)
    drives a step-change: Vd × 3.0 from CX10 despite cone area increasing only × 1.53
  • Qts non-monotone: 0.47 → 0.59 → 0.65 → 0.50; CX12 breaks the upward trend,
    returning to the boundary case (0.50) — reflects higher Bl/Qes balance at 12" scale
  • f_beam consistently decreasing (1,635 → 1,327 → 1,043 → 842 Hz)
  • f_array consistently decreasing (1,040 → 830 → 672 → 538 Hz)
  • Crossover upper bound contracting (2,000 → 1,600 → 1,500 → 1,500 Hz)
  • HF/LF mismatch: 7.2 → 10.56 → 11.6 → 9.8 dB — trend reversal at CX12 because
    LF Lm rises to 95.2 dB (driven by larger motor and Sd) while HF Lm stays at 105 dB
  • Bl increasing (9.27 → 9.93 → 10.36 → 13.4 T·m) — largest step at CX12
  • Le increasing (0.45 → 0.47 → 0.49 → 0.70 mH) — largest step at CX12; pulls f_Le
    below the crossover range for the first time in the family
  • CX12 is the only driver in the family where f_Le falls inside the crossover zone
  • VC wire shifts from CCAW (CX6/CX8/CX10) to solid copper at CX12 for thermal reasons
  • All four share: 8 Ω nominal, Nomex spider, 30 W HF AES, hybrid Fe+Nd combined
    magnetic circuit, PEN dome HF assembly, aluminum demodulation ring in HF section

SUMMARY
The CX12F-140FX8-376B is the largest driver in the REDCATT coaxial family, pairing a 12-inch,
200 W AES LF section with the same 1.4-inch PEN dome HF assembly used across the range, mounted
in an integrated symmetrical aluminum horn that provides rotationally symmetric, orientation-
independent coverage. The LF section's 50.8 mm solid copper voice coil on a glass fiber former
represents a deliberate thermal upgrade from the CCAW winding used in CX8 and CX10: at
200 W AES power handling, solid copper's superior thermal conductivity justifies the added
moving mass. The carbon fiber-reinforced paper pulp cone (Paper CF, also used in CX10) and Nomex
spider complete the high-power construction. With Lm = 95.2 dB (sensitivity field agreement:
0.001 dB — perfect), Maximum SPL of 118.2 dB (200 W AES), and Bl = 13.4 T·m (highest in the
family), the CX12 is a high-efficiency, high-force motor. Its dominant specification is volume
displacement: Vd = 207.06 cm³ (Sd = 530.93 cm², Xmax = 3.9 mm) — the largest of every driver
across both the full-range and coaxial families, nearly three times the CX10's 69.28 cm³,
driven by the near-doubling of Xmax from 2.0 mm to 3.9 mm.

The LF section's Qts = 0.50 sits exactly on the boundary between vented-preferred and
sealed-preferred, giving the system designer genuine freedom of choice — unlike the CX10 where
Qts = 0.65 heavily favoured sealed. For sealed enclosures, the Butterworth alignment at 63.9 L
(fc = 79.2 Hz, f-3dB = 79.2 Hz) is a practical cabinet size for a 12" PA driver; Qtc = 1.00
(21.3 L, f-3dB = 88 Hz) and Qtc = 1.20 (13.4 L, f-3dB = 98.9 Hz) suit compact column
cabinets with active subwoofer support. Vented alignments with a 100 mm port across 30–80 L
(Fb 28–45 Hz, physical port 302–315 mm — near-constant 13 mm span) extend bass below Fs; the
30L/45Hz option reaches 7.45 m/s peak port velocity, within PA limits, while 50L/35Hz and
80L/28Hz remain within hi-fi velocity limits as well.

The crossover analysis is the most challenging in the coaxial family. The LF f_beam = 842 Hz —
the lowest of all drivers processed — means the 12-inch cone is directional throughout the
entire crossover zone. The LF f_Le = 1,251 Hz is the only case in the family where the
inductance rolloff frequency falls inside the recommended crossover range (1,200–1,500 Hz): this
is simultaneously a constraint and an asset, as the natural 6 dB/oct LF acoustic rolloff above
f_Le assists the crossover transition and reduces the electronic filter burden, but it must be
explicitly modelled in any active DSP crossover design rather than treated as a flat-passband
handoff. The Zobel network (5.5 Ω + 23.1 μF — the largest Cz in the family, reflecting the
highest Le) must be fitted to stabilise LF impedance before crossover filter design; without it,
the substantial Le-driven impedance rise distorts the filter response severely. HF/LF mismatch
of 9.8 dB is reduced versus CX10's 11.6 dB because the CX12's larger Sd and higher Bl lift
LF Lm to 95.2 dB while HF Lm remains constant at 105 dB, requiring −9.8 dB HF gain trim or
equivalent passive L-pad. An LR4 minimum — and preferably LR6 — crossover slope is recommended
to manage the beaming LF cone and the narrow frequency margin between HF horn minimum and f_Le.

For column array deployment, the 320 mm OD yields f_array = 538 Hz — the lowest in the entire
catalogue — establishing three directivity regimes: below 538 Hz the column controls directivity;
between 538 and 1,500 Hz a wide, complex transition zone develops in which both f_array and
f_beam (842 Hz) sit, creating a region where driver beaming, array interference, and crossover
transition interact simultaneously, demanding measurement or full acoustic modelling rather than
approximations; above 1,500 Hz the integrated symmetrical aluminum horn governs coverage with
consistent, predictable directivity. The widening transition zone across the coaxial family
(CX6: 460 Hz span → CX12: 962 Hz span) is the key system-design challenge that scales with
driver size: the CX12 demands the most careful directivity engineering of the four models.
