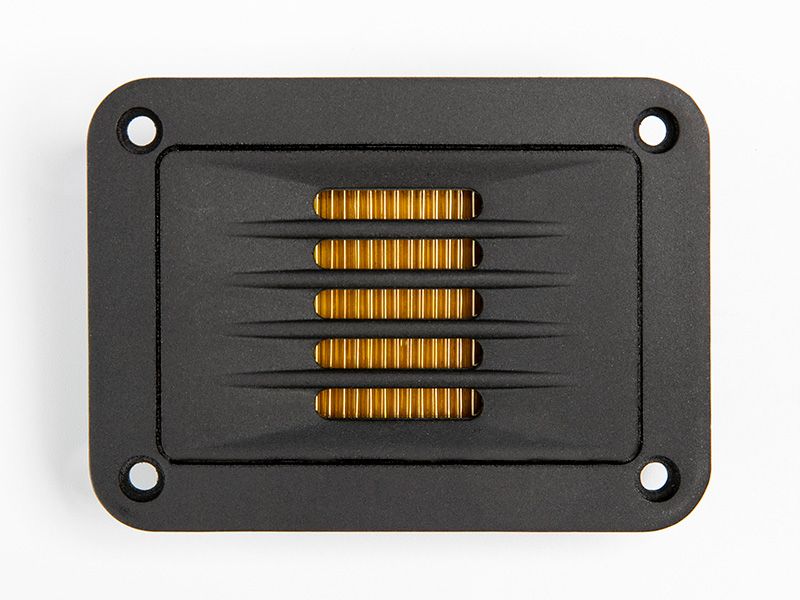

AMT2838 AMT2838
HF AMT 1"

AMT2838

Code: AMT2838X4-541A

AMT/93*63/Neo/4ohm

Key Features

  • Smooth frequency response in working rage, very low harmonic distortion
  • compact design with integrated waveguide
  • Best use in high performing hi-fi audio systems

Quick Specs

Impedance

4 Ω

Program Power

20 W

Sensitivity

96.00 dB

Fs

2200.00 Hz

Magnet

Neodymium

Design Notes

Introducing our Air Motion Transformer AMT2838, meticulously engineered to elevate the auditory experience in high-fidelity audio products. Designed to be the pinnacle of sound reproduction, the AMT2838 delivers ultra-clean, detailed, and well-defined mid to high-frequency sound, setting a new standard in audio excellence.

Crafted with precision manufacturing, stringent quality control processes, and advanced glue dispensing techniques, our AMT2838 is engineered for long-term durability and unwavering performance, ensuring that the product in your hands is synonymous with reliability and stability.

The AMT2838’s magnetic system provides a robust B field to the formed diaphragm, enhancing its overall performance and contributing to its exceptional sound output. The diaphragm assembly is a marvel in engineering, featuring polyimide foils encapsulating aluminum conductive film. Our innovative high-precision forming technique ensures that each diaphragm is crafted with a high degree of repeatability, enhancing unit-to-unit consistency and delivering stability, resulting in unparalleled audio performance.

Specifications

General Specs

Nominal Diameter 1"
Rated Impedance 4 Ohm
Magnet Neodymium
Basket Material Plastic

Power Handling

AES Power 10 W
Continuous Power 20 W
Peak Power 40 W

Voice Coil

Former kapton

T/S Parameters

Resonant Frequency (Fs) 2200.00 Hz
Re 4.00 \u2126
Sensitivity 96.00 dB

Design Details

Cone/Dome Material Composite
Mounting Holes 4
Depth (flange to rear) 27.10 mm
Net Weight 0.22 kg

Ordering Codes

Product Code AMT2838X4-541A

Frequency Response & Impedance

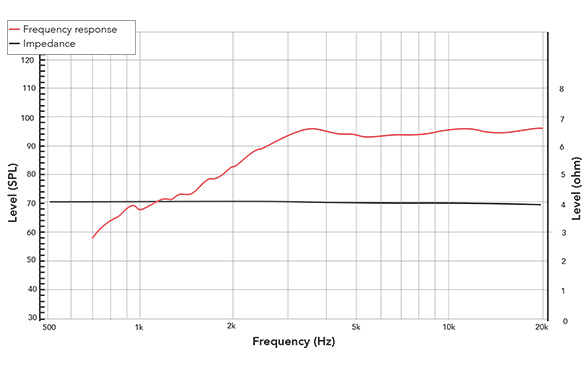

Frequency response of AMT2838

2D Drawing

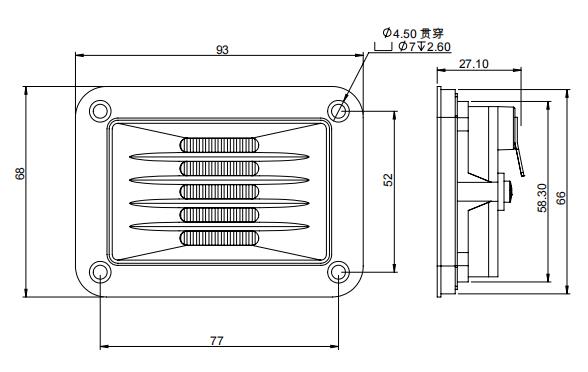

2D drawing of AMT2838

Frequently Asked Questions

  • - Smooth frequency response in working rage, very low harmonic distortion
  • - compact design with integrated waveguide
  • - Best use in high performing hi-fi audio systems
AES Power: 10 W, Continuous: 20 W, Peak: 40 W. Sensitivity: 96.00 dB (1W/1m).
