HF
Tweeter
1"

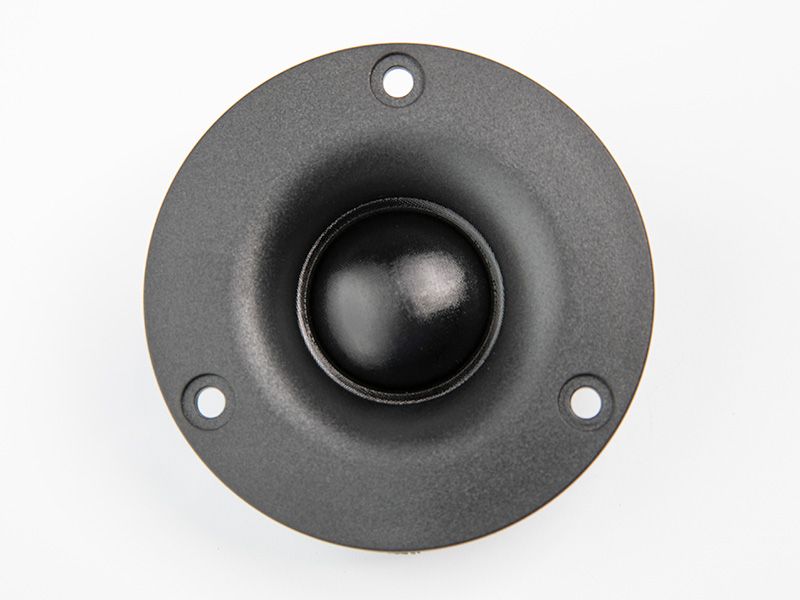

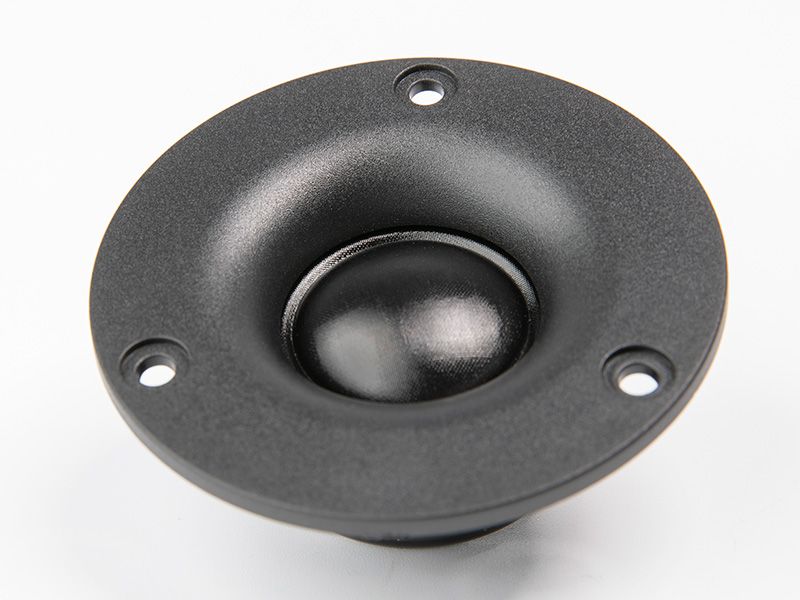

252TN
Code: 252TNX4-563A
Dome Tweeter/1.0inch/Neo/Silk/10W/4ohm
Key Features
- Helmholtz resonant chamber
- Compact and lightweight
- Low Fs
Quick Specs
Impedance
4 Ω
Program Power
20 W
Sensitivity
93.00 dB
Fs
850.00 Hz
Magnet
Neodymium
Voice Coil
25.4 mm
Design Notes
Introducing the 252TN, the latest innovation in our compact tweeter lineup. Engineered with a natural fiber silk dome, this tweeter is crafted from the ground up using advanced FEM tools, paired with a highly optimized neodymium-based magnetic circuit and a finely tuned Helmholtz resonant chamber.
The result? An exceptionally high-performing tweeter that excels in a variety of applications, from smaller bookshelf speakers and portable systems to high-fidelity floor-standing towers and automotive audio. Its low resonant frequency enables a lower crossover point, enhancing overall sound quality.
Designed for versatility, the 252TN is fully weather-sealed, making it ideal for even the most demanding environments. Elevate your audio experience with the 252TN—where cutting-edge technology meets outstanding performance.
The result? An exceptionally high-performing tweeter that excels in a variety of applications, from smaller bookshelf speakers and portable systems to high-fidelity floor-standing towers and automotive audio. Its low resonant frequency enables a lower crossover point, enhancing overall sound quality.
Designed for versatility, the 252TN is fully weather-sealed, making it ideal for even the most demanding environments. Elevate your audio experience with the 252TN—where cutting-edge technology meets outstanding performance.
Specifications
General Specs
Nominal Diameter
1"
Rated Impedance
4 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
10 W
Continuous Power
20 W
Peak Power
40 W
Voice Coil
Diameter
25.4 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
1.6 mm
T/S Parameters
Resonant Frequency (Fs)
850.00 Hz
Re
3.50 \u2126
Sensitivity
93.00 dB
Design Details
Surround Material
Silk
Cone/Dome Material
Silk
T-Plate
2.5 mm
Xmax (peak)
0.45 mm
Xmech
2.95 mm
Overall Diameter
69.80 mm
Bolt Circle Diameter
58.80 mm
Baffle Cutout Dia.
42.50 mm
Mounting Holes
3
Depth (flange to rear)
33.30 mm
Net Weight
0.10 kg
Ordering Codes
Product Code
252TNX4-563A
Downloads

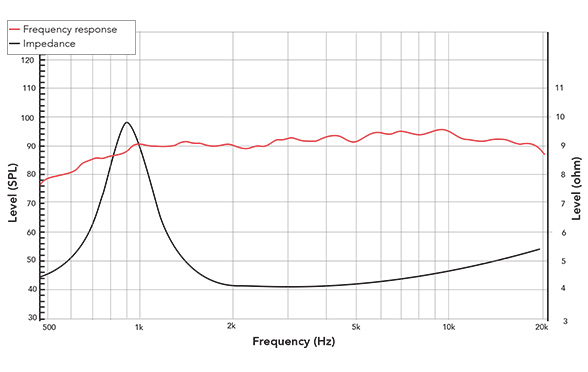

Frequency Response & Impedance

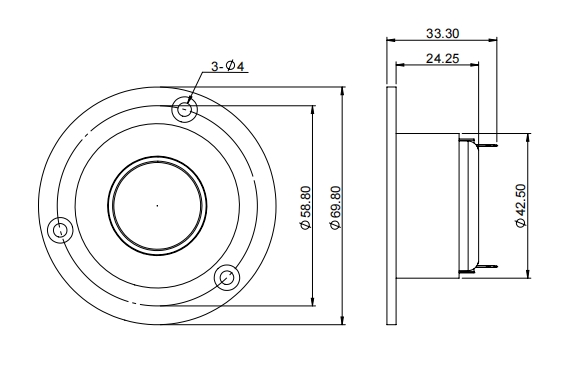

2D Drawing
Frequently Asked Questions
- - Helmholtz resonant chamber
- - Compact and lightweight
- - Low Fs
AES Power: 10 W,
Continuous: 20 W,
Peak: 40 W.
Sensitivity: 93.00 dB (1W/1m).
