25NFRX8-279 — Enclosure Design Reference & AI Summary
Generated by REDCATT Speaker Enclosure Tool
=== DRIVER IDENTITY ===
Code:         25NFRX8-279
Platform:     25NFR

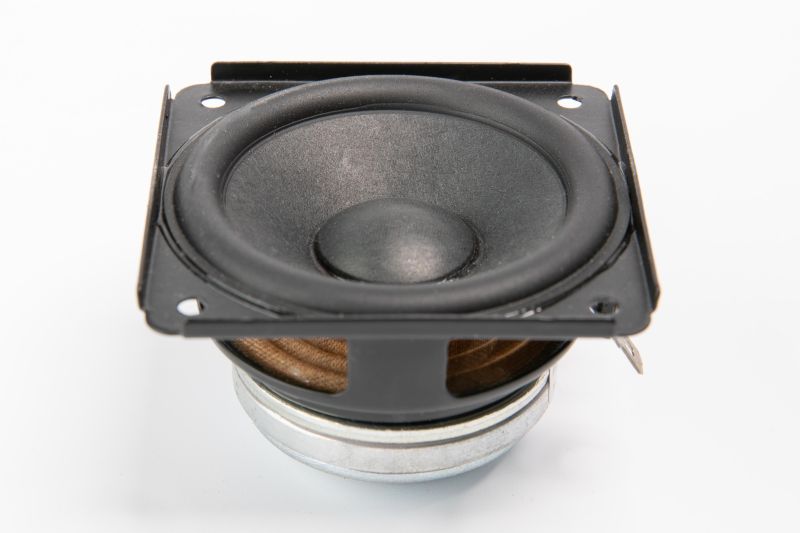

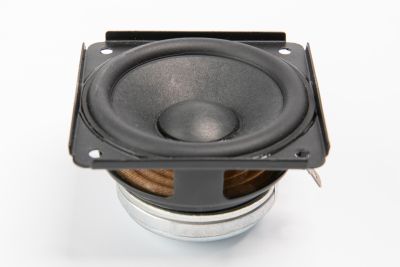

Description:  2.5-inch Full-Range | Neodymium Ring | Glass Fiber Paper | 20W AES / 8Ω
Intended Use: Column speaker arrays, multi-way Hi-Fi products, portable speakers,
              space-limited applications requiring genuine bass extension from a compact driver

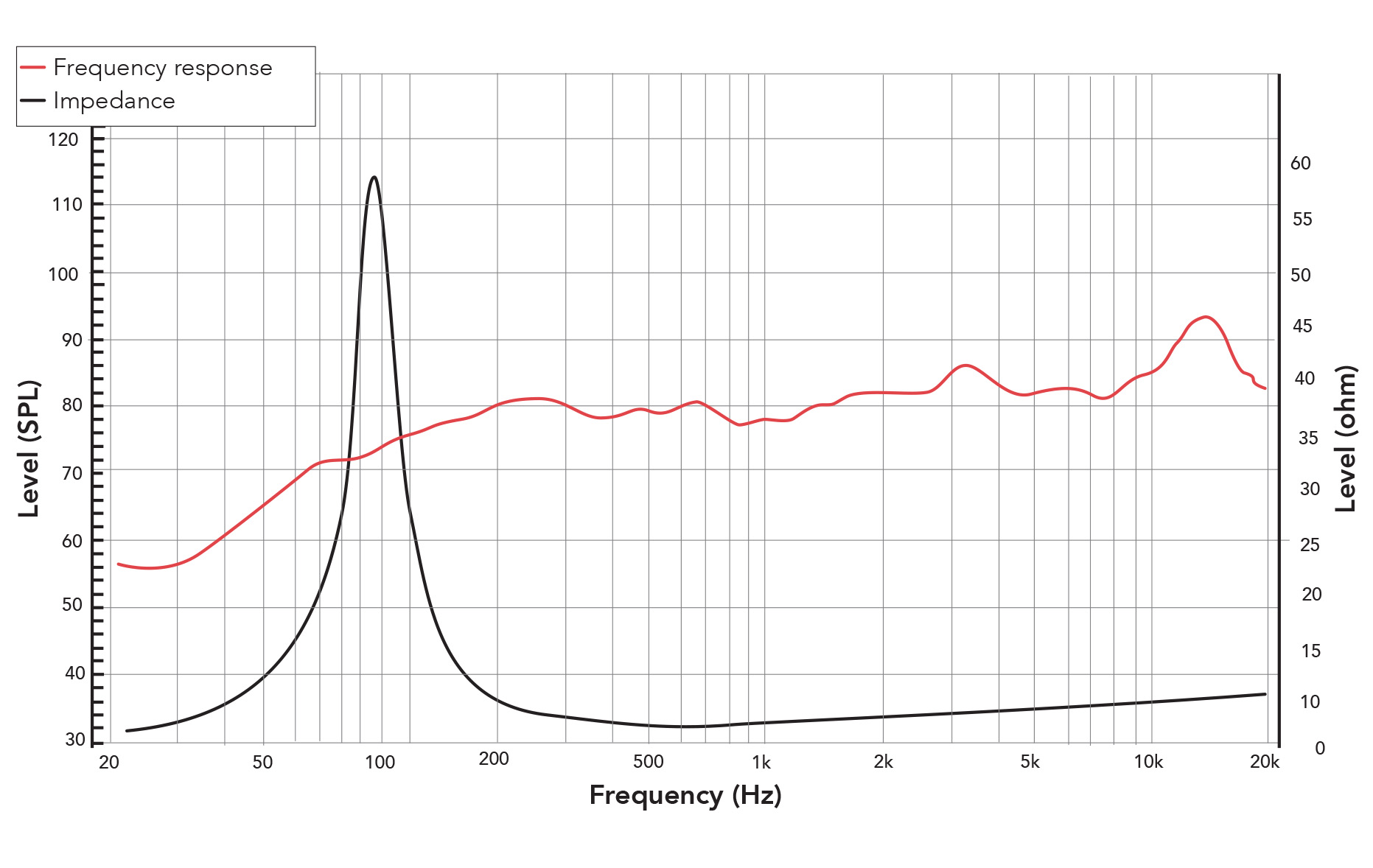

=== THIELE-SMALL PARAMETERS ===
Fs:          123 Hz
Re:          7.3 Ω
Qes:         0.81
Qms:         5.97
Qts:         0.71
Vas:         0.46 L  (460 mL)
Sd:          21.2 cm²
Sensitivity: 82.69 dB (2.83V/1m) / 82.34 dB (1W/1m)
Mms:         2.2 g
Rms:         0.285 N·s/m
Cms:         0.76 mm/N
Bl:          4.0 T·m
Le:          0.09 mH
Xmax:        2.65 mm (one-way, peak)
Xmech:       5.65 mm
Xprot:       7.8 mm
Power:       20W AES / 40W continuous / 80W peak / 8Ω nominal
Voice Coil:  ~20mm (0.8") CCAW on Kapton former
Cone:        Glass fiber reinforced paper
Surround:    NBR rubber blend (durable, weather-tolerant)
Spider:      Nomex
Basket:      Steel
Magnet:      Neodymium ring (vs. slug in 20/21/22NFR — ring topology for reduced modulation distortion)

=== DERIVED PARAMETERS ===
Volume displacement (Vd):         Sd × Xmax = 21.2 × 0.265 cm = 5.62 cm³
Inductance rolloff onset (f_Le):  Re / (2π × Le) = 7.3 / (2π × 0.00009) ≈ 12,920 Hz
Cone radius (r_cone):             √(Sd/π) = √(21.2/π) = 2.60 cm
Cone beaming onset (f_beam):      c / (π × r_cone) = 34,400 / (π × 2.60) ≈ 4,215 Hz
Max SPL @ 20W AES:                82.34 + 10·log₁₀(20) = 95.4 dB (1m)
Max SPL @ 40W continuous:         82.34 + 10·log₁₀(40) = 98.4 dB (1m)
Zobel network:                    R_z = 7.3 Ω (series), C_z = Le/Re² = 1.7 μF (series)

NOTE ON NEODYMIUM RING MAGNET:

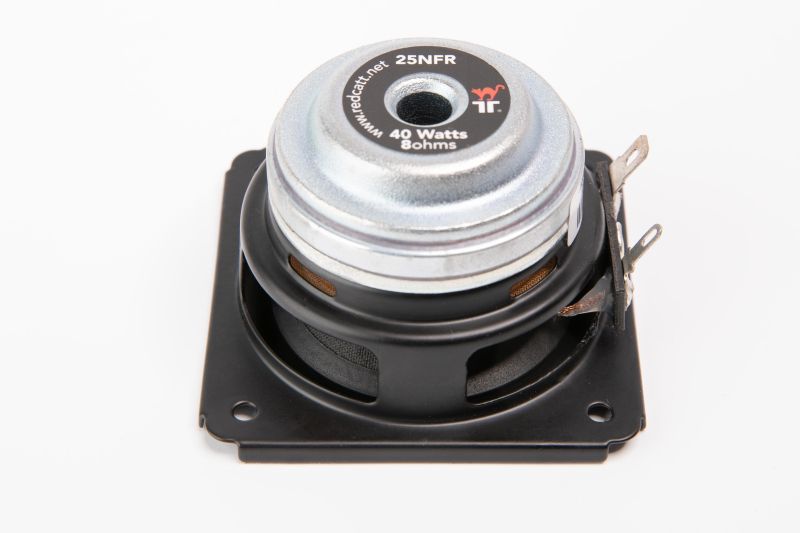

The 25NFR uses a neodymium ring magnet topology rather than the axial slug with U-cup
steel used in the 20/21/22NFR drivers. The ring motor geometry provides more uniform
magnetic flux across the voice coil travel range and inherently lower flux modulation
distortion, particularly at higher excursion levels. This contributes to the driver's
linearity across its 2.65mm Xmax stroke — a key advantage when DSP bass boost is applied.

NOTE ON Vd AND BASS CAPABILITY:
At 5.62 cm³, the volume displacement of the 25NFR is the largest in the 2"/2.5" NFR
family — 1.65× that of the 20NFR (3.40 cm³), 2.8× the 21NFR (2.0 cm³), and 4.7× the
22NFR (1.19 cm³). Combined with the lowest Fs (123 Hz) in the family, this driver
offers by far the most genuine bass capability of the four variants.

=== ENCLOSURE RECOMMENDATION ===
Qts = 0.71 → Free-air / open-back strongly preferred.

IMPORTANT — SEALED BOXES DO NOT IMPROVE BASS FOR THIS DRIVER:
Qts = 0.71 is marginally above the Butterworth value of 0.707. This means the driver
is already operating in a near-Butterworth condition in free air, with f-3dB essentially
equal to Fs = 123 Hz. Any sealed rear cavity raises Qtc above 0.71, increasing f-3dB:

  Free air (Qtc ≈ 0.71):   f-3dB ≈ 123 Hz  ← best available; near-Butterworth in free air
  Qtc = 1.00 (468 mL box): f-3dB ≈ 136 Hz  (13 Hz higher — worse)
  Qtc = 1.20 (248 mL box): f-3dB ≈ 153 Hz  (30 Hz higher — worse)
  Qtc = 1.50 (133 mL box): f-3dB ≈ 182 Hz  (59 Hz higher — worse)

Free-air or open-back installation is the correct choice for this driver. Where a
sealed rear cavity is required for structural reasons (e.g. portable speaker housing),
use the largest cavity the product allows and compensate with DSP.

--- FREE-AIR / OPEN-BACK (strongly preferred) ---
In free air, the driver operates at its natural Qts ≈ 0.71 with a near-Butterworth
response shape, yielding:
  System resonance: Fs = 123 Hz
  System f-3dB:     ≈ 123 Hz
  Natural response: flat from ~130 Hz upward; gentle rolloff below 123 Hz with minimal
                    overhang or ringing due to the near-Butterworth damping

With DSP equalization, usable bass response can be extended below 123 Hz. The 2.65mm
Xmax provides meaningful excursion headroom for modest bass boost — the largest Xmax
of the NFR family after the 20NFR (3.0mm). A bass extension of 10–15 dB at 80 Hz
should remain within mechanical limits at moderate drive levels.

--- SEALED MICRO-ENCLOSURES (secondary — structural requirement only) ---
Where a sealed housing is required. DSP correction mandatory in all cases.

Alignment 1 — Largest practical sealed cavity
  Cabinet volume (Vb):    468 mL
  System Qtc:             1.00
  System fc:              173 Hz
  System f-3dB:           136 Hz
  Notes: Best sealed alignment; lightly peaked response; modest DSP correction needed

Alignment 2 — Compact sealed (portable / soundbar)
  Cabinet volume (Vb):    248 mL
  System Qtc:             1.20
  System fc:              208 Hz
  System f-3dB:           153 Hz
  Notes: Noticeably peaked; mandatory DSP correction for flat playback

Alignment 3 — Minimal sealed
  Cabinet volume (Vb):    133 mL
  System Qtc:             1.50
  System fc:              260 Hz
  System f-3dB:           182 Hz
  Notes: Strongly peaked response; full DSP management required; the 2.5" driver OD
         (65mm) means this volume is achievable in a moderately compact enclosure

=== COLUMN SPEAKER / ARRAY GUIDANCE ===

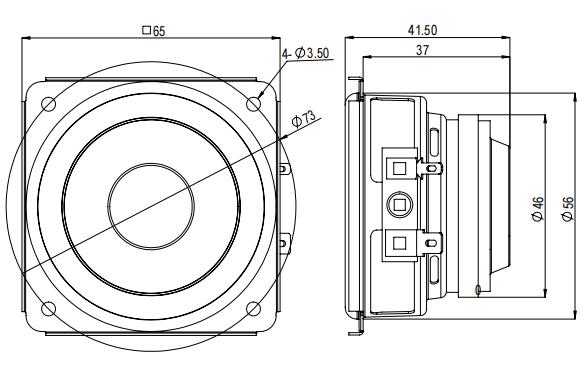

The 65mm overall driver diameter sets the minimum pitch in a vertical column array:
  Maximum coherent array frequency: c / (2 × driver pitch)
                                    = 34,400 cm/s / (2 × 6.5 cm) ≈ 2,646 Hz ≈ 2.6 kHz

Above approximately 2.6 kHz, grating lobes appear in the vertical radiation pattern.
The 4,215 Hz cone beaming onset provides complementary high-frequency directivity
control above the grating lobe threshold.

The 25NFR's 123 Hz free-air f-3dB and 5.62 cm³ volume displacement make it the most
capable full-range driver in the NFR family for column systems requiring genuine bass
coverage without a separate woofer or subwoofer. In a column of four 25NFR drivers at
65mm pitch, coherent bass reproduction extends to approximately 2.6 kHz, and DSP-
assisted bass extension to ~80 Hz is achievable within Xmax limits.

For column enclosures, open-back mounting per driver (or maximum available rear cavity
depth) is recommended. The NBR rubber surround supports outdoor and semi-outdoor
column speaker installations.

=== CROSSOVER / DSP GUIDANCE ===
Full-range operation:  ~130 Hz – 15+ kHz (natural; near-flat from ~130 Hz)
With DSP / host EQ:    Usable bass extension to ~80 Hz with conservative boost
                       within Xmax = 2.65mm limit
High-pass filter:      Recommended at 60–80 Hz minimum; unlike the 22NFR, the 2.65mm
                       Xmax provides meaningful headroom — modest bass boost is viable
Cone beaming:          Onset at ~4,215 Hz; directivity narrows above this frequency
Inductance rolloff:    Onset at ~12,920 Hz — negligible effect across the audio band
Passive crossover:     Zobel network (7.3Ω + 1.7 μF in series across driver terminals)
                       compensates voice coil inductance for passive network designs

In multi-way Hi-Fi systems, the 25NFR is suited as a full-range midrange element
crossed above ~80 Hz to a subwoofer, covering the full midrange and high-frequency
band from 80 Hz to ~10 kHz without a separate tweeter.

=== NFR FAMILY COMPARISON (All Four Variants) ===

Parameter           20NFRX4-345A  21NFRX16-393D  22NFRX8-462A  25NFRX8-279
Size                2"            2"             2"            2.5"
Impedance           4Ω            16Ω            8Ω            8Ω
AES Power           10W           10W            20W           20W
Fs                  185 Hz        157 Hz         255 Hz        123 Hz
Qts                 0.52          0.68           0.85          0.71
Vas                 90 mL         250 mL         80 mL         460 mL
Sd                  11.34 cm²     16.62 cm²      15.9 cm²      21.2 cm²
Xmax                3.0 mm        1.2 mm         0.75 mm       2.65 mm
Vd                  3.40 cm³      2.0 cm³        1.19 cm³      5.62 cm³
Sensitivity (1W/1m) 79.56 dB      85.76 dB       83.49 dB      82.34 dB
Max SPL (AES)       89.6 dB       95.8 dB        96.5 dB       95.4 dB
f-3dB free air      272 Hz        164 Hz         219 Hz        123 Hz
f_beam              5,764 Hz      4,761 Hz       4,867 Hz      4,215 Hz
Surround            Foam          NBR            Fabric        NBR
Cone                Paper GF      Paper CF       Paper GF      Paper GF
Motor               Neo slug      Neo slug       Neo slug      Neo ring
Best enclosure      Small sealed  Free-air       Free-air      Free-air

SELECTION GUIDANCE:

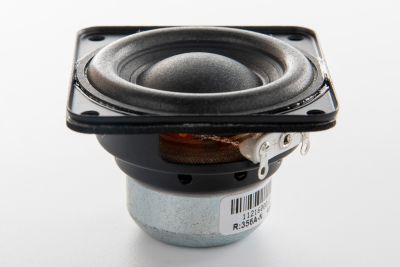

20NFRX4-345A: Choose when a sealed rear cavity actively helps (Qts=0.52); largest
  Xmax (3.0mm) for bass boost; 4Ω for standard consumer amplifier connection.

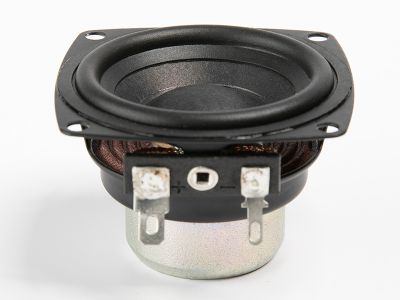

21NFRX16-393D: Choose for column arrays needing 16Ω parallel wiring flexibility;
  lowest Fs of the 2" variants (157 Hz); NBR surround for outdoor use.

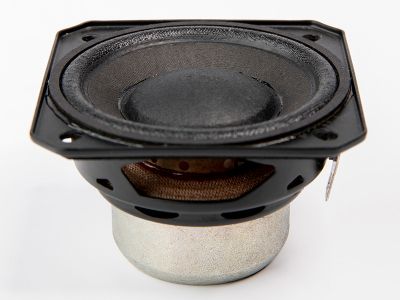

22NFRX8-462A: Choose when power handling (20W) and SPL (96.5 dB) are primary;
  8Ω standard impedance; front/back mounting flexibility; bass extension not critical.
25NFRX8-279: Choose when bass extension is the primary objective from a compact
  driver — lowest Fs (123 Hz), largest Vd (5.62 cm³), near-Butterworth free-air
  response; 2.5" form factor; best all-round full-range capability of the four variants.

=== SUMMARY ===

The 25NFRX8-279 is a 2.5-inch full-range driver built around a neodymium ring magnetic circuit — distinct from the axial slug topology used in the 20/21/22NFR variants — designed to deliver genuine bass extension from a compact form factor for column speakers, multi-way Hi-Fi products, and portable applications. The glass fiber reinforced paper cone is coupled to an NBR rubber surround and Nomex spider, driven by a ~20mm CCAW voice coil on a Kapton former. Sensitivity is 82.34 dB (1W/1m) / 82.69 dB (2.83V/1m) with a Bl of 4.0 T·m, supporting 20W AES / 40W continuous power handling. Qts = 0.71 places this driver in a near-Butterworth condition in free air, with a natural system f-3dB of approximately 123 Hz — the lowest of the four NFR variants — providing the broadest usable bass bandwidth without equalization correction.

With Qts = 0.71 marginally above 0.707, a Butterworth sealed alignment is not achievable; any sealed rear cavity raises Qtc above 0.71 and increases f-3dB above 123 Hz. Free-air or open-back installation is the correct choice for maximum bass extension. Where a sealed cavity is required for structural reasons, three reference alignments are provided:

  • 468 mL / Qtc=1.00 / f-3dB 136 Hz — largest practical sealed; modest DSP correction
  • 248 mL / Qtc=1.20 / f-3dB 153 Hz — compact sealed for portable or soundbar use
  • 133 mL / Qtc=1.50 / f-3dB 182 Hz — minimal cavity; full DSP management required

Amplification of 20–40W from an 8Ω amplifier output is appropriate, delivering a peak SPL of 95.4 dB at 1 metre (20W AES). With 2.65mm Xmax and 5.62 cm³ volume displacement — the largest Vd in the NFR family — DSP-assisted bass extension to approximately 80 Hz is achievable within mechanical limits, providing a meaningful headroom advantage over the 21NFR (2.0 cm³) and 22NFR (1.19 cm³). The neodymium ring motor provides inherently lower flux modulation distortion at excursion, supporting low-distortion performance when bass equalization is applied. The inductance rolloff onset at 12,920 Hz is beyond the audio band, and cone beaming onset at 4,215 Hz defines the upper dispersion limit. In column array applications, the 65mm driver OD limits coherent vertical directivity to approximately 2.6 kHz. The 25NFRX8-279 is suited for vertical column speaker arrays requiring genuine bass coverage without a dedicated woofer; multi-way Hi-Fi systems as a full-range element crossed above 80 Hz to a subwoofer; compact portable speakers where DSP-extended bass response from a 2.5-inch driver is a design objective; and outdoor or semi-outdoor column and surface-mount enclosures where the NBR surround provides long-term environmental durability.
