LF
Woofer
18"
183FIND
Code: 183FINDX8-297
Woofer/18inch/Ferrite/Paper/600W/8ohm
Key Features
- Optimized ferrite magnetic structure
- Lightweight, yet strong paper cone
- Hi spl
Quick Specs
Impedance
8 Ω
Program Power
1200 W
Sensitivity
97.07 dB
Fs
32.00 Hz
Magnet
Ferrite
Voice Coil
76 mm
Design Notes
183FIND is a cost-effective solution for subwoofers. Its lightweight yet strong cone allows the magnetic circuit to be size optimized while delivering a seizable amount of sound pressure. With its high efficiency (97 dB 1watt / 1 meter) and high power handling capabilities, this woofer will excel in all applications with tight budgets. The cone shape and material was developed to provide an optimum low-frequency response, making the woofer good choice for subwoofer systems.
Power Handling
At the core of the 183FIND is its voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures above 280°C. The winding with high-temperature specification copper wire ensures the long life of the voice coil, without the costly service cycles.
The cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Power Handling
At the core of the 183FIND is its voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures above 280°C. The winding with high-temperature specification copper wire ensures the long life of the voice coil, without the costly service cycles.
The cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications
General Specs
Nominal Diameter
18"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Steel
Power Handling
AES Power
600 W
Continuous Power
1200 W
Peak Power
2400 W
Voice Coil
Diameter
76 mm
Winding Wire
Copper
Former
Glass Fiber
Winding Height
19.8 mm
T/S Parameters
Resonant Frequency (Fs)
32.00 Hz
Re
5.90 \u2126
Qes
0.430
Qms
13.20
Qts
0.420
Vas
329.50 liters
Sd
1225.40 cm\u00B2
Mms
165.00 grams
Rms
2.51
Cms
0.1500
Bl
21.14 T\u00B7m
Le
0.730 mH
Sensitivity
97.07 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper GF
Spider
Conex
T-Plate
8 mm
Xmax (peak)
5.9 mm
Xmech
13.9 mm
Overall Diameter
461.00 mm
Bolt Circle Diameter
442.00 mm
Baffle Cutout Dia.
422.00 mm
Mounting Holes
8
Depth (flange to rear)
184.00 mm
Net Weight
8.80 kg
Ordering Codes
Product Code
183FINDX8-297
Downloads

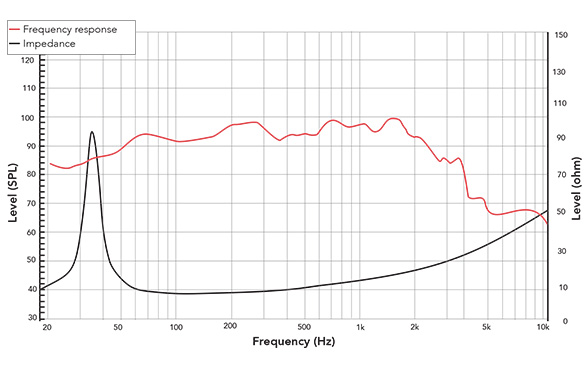

Frequency Response & Impedance

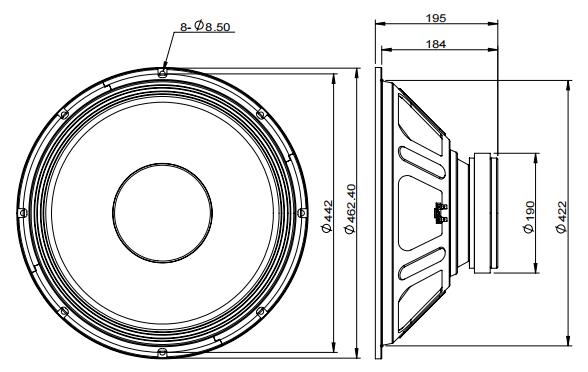

2D Drawing
Enclosure Recommendations
Recommended enclosure alignments (bass reflex): - 215 liters tuned to 37 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 34 Hz, HP filter 29 Hz - 250 liters tuned to 34 Hz: balanced response, general-purpose (recommended); -3 dB approx. 31 Hz, HP filter 24 Hz - 275 liters tuned to 30 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 26 Hz, HP filter 20 Hz
Frequently Asked Questions
- - Optimized ferrite magnetic structure
- - Lightweight, yet strong paper cone
- - Hi spl
Recommended enclosure alignments (bass reflex): - 215 liters tuned to 37 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 34 Hz, HP filter 29 Hz - 250 liters tuned to 34 Hz: balanced response, general-purpose (recommended); -3 dB approx. 31 Hz, HP filter 24 Hz - 275 liters tuned to 30 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 26 Hz, HP filter 20 Hz
High-excursion vented woofer / subwoofer, touring bass bin
AES Power: 600 W,
Continuous: 1200 W,
Peak: 2400 W.
Sensitivity: 97.07 dB (1W/1m).
