LF
Woofer
18"
182FIND
Code: 182FINDX8-127
Woofer/18inch/Ferrite/Paper/1000W/8ohm
Key Features
- Inside / outside wound coil
- Reinforced half pressed cone
- Silicone nomex spider
Quick Specs
Impedance
8 Ω
Program Power
2000 W
Sensitivity
97.78 dB
Fs
31.00 Hz
Magnet
Ferrite
Voice Coil
101.6 mm
Design Notes
The 182FIND is a high efficiency, (98 dB 1watt / 1 meter) 18-inch woofer with extended linear frequency response characteristics. The 182FIND uses durable half-pressed paper cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength at any given situation, high efficiency and a peak to peak maximum excursion of 27mm.
Power Handling
At the core of the 182FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250C, well beyond the thermal requirements of modern professional audio systems. Voice coil winding is wound inside and outside of the former in the 1-3 split.
REDCATT has implemented a silicone spider design to ensure long term shape memory, consistency and diminish anomalies associated with spider deterioration.
Power Handling
At the core of the 182FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250C, well beyond the thermal requirements of modern professional audio systems. Voice coil winding is wound inside and outside of the former in the 1-3 split.
REDCATT has implemented a silicone spider design to ensure long term shape memory, consistency and diminish anomalies associated with spider deterioration.
Specifications
General Specs
Nominal Diameter
18"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
1000 W
Continuous Power
2000 W
Peak Power
4000 W
Voice Coil
Diameter
101.6 mm
Winding Wire
Copper
Former
Glass Fiber
Winding Height
25.5 mm
T/S Parameters
Resonant Frequency (Fs)
31.00 Hz
Re
5.50 \u2126
Qes
0.240
Qms
8.85
Qts
0.230
Vas
208.60 liters
Sd
1257.00 cm\u00B2
Mms
281.00 grams
Rms
6.18
Cms
0.0930
Bl
35.40 T\u00B7m
Le
4.920 mH
Sensitivity
97.78 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper GF
Spider
Nomex
T-Plate
14 mm
Xmax (peak)
5.75 mm
Xmech
19.75 mm
Overall Diameter
468.00 mm
Bolt Circle Diameter
442.00 mm
Baffle Cutout Dia.
426.00 mm
Mounting Holes
8
Depth (flange to rear)
189.00 mm
Net Weight
14.00 kg
Ordering Codes
Product Code
182FINDX8-127
Downloads

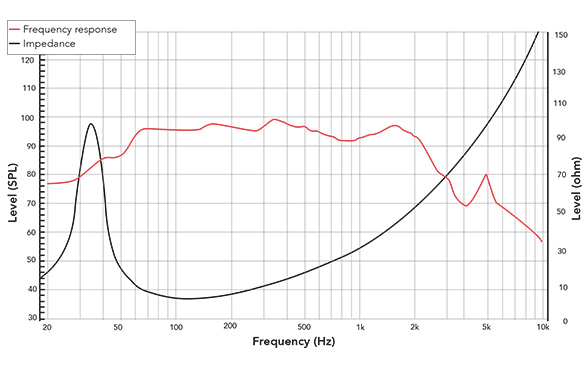

Frequency Response & Impedance

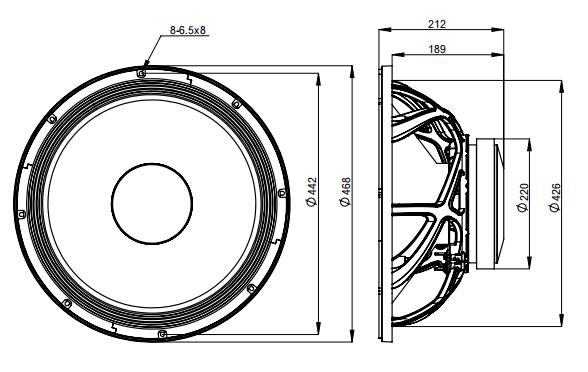

2D Drawing
Enclosure Recommendations
Recommended enclosure alignments (bass reflex): - 250 liters tuned to 29 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 25 Hz, HP filter 25 Hz - 275 liters tuned to 26 Hz: balanced response, general-purpose (recommended); -3 dB approx. 22 Hz, HP filter 22 Hz - 275 liters tuned to 25 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 21 Hz, HP filter 20 Hz
Frequently Asked Questions
- - Inside / outside wound coil
- - Reinforced half pressed cone
- - Silicone nomex spider
Recommended enclosure alignments (bass reflex): - 250 liters tuned to 29 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 25 Hz, HP filter 25 Hz - 275 liters tuned to 26 Hz: balanced response, general-purpose (recommended); -3 dB approx. 22 Hz, HP filter 22 Hz - 275 liters tuned to 25 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 21 Hz, HP filter 20 Hz
Outdoor / weather-resistant; high-excursion vented subwoofer, touring bass bin; weight-critical installs
AES Power: 1000 W,
Continuous: 2000 W,
Peak: 4000 W.
Sensitivity: 97.78 dB (1W/1m).
