HF
Tweeter
0.6"
16TN
Code: 16TNX8-182
Tweeter/0.6inch/Neo/Silk/5W/4ohm
Key Features
- small systems with limited baffle space
- working range up to 20kHz
- lightweight. ideal for portable products.
Quick Specs
Impedance
4 Ω
Program Power
10 W
Sensitivity
82.00 dB
Fs
2000.00 Hz
Magnet
Neodymium
Voice Coil
15.2 mm
Design Notes
The 16TN tweeter was designed with a small form factor in mind. It finds its best use in applications where the baffle space is limited. It is a high performance, high frequency device with extended HF frequency range well over 20kHz. .

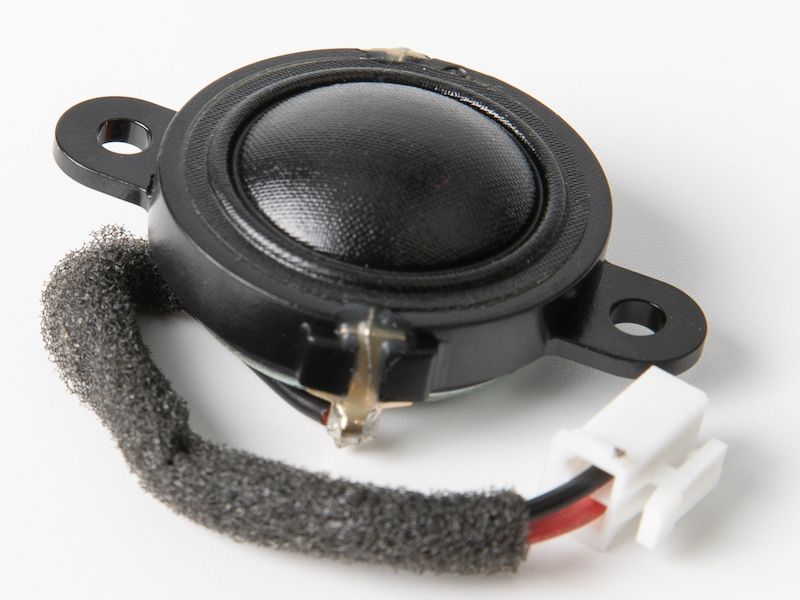

Diaphragm Assembly
The driver features a 16mm Poly-silk diaphragm formed as single piece with suspension. The dome rests on plastic carrier that also consists two mounting holes.
The dome is carefully attached to a 16mm aluminum former voice coil. Further, a common sized connector is used. Optionaly, the connector can be replaced by another type that would suit the best your application, or completelly replaced by conventional fast-on terminals.
Magnetic system uses high-temperature grade neodymium, ensuring the longevity of this tweeter.

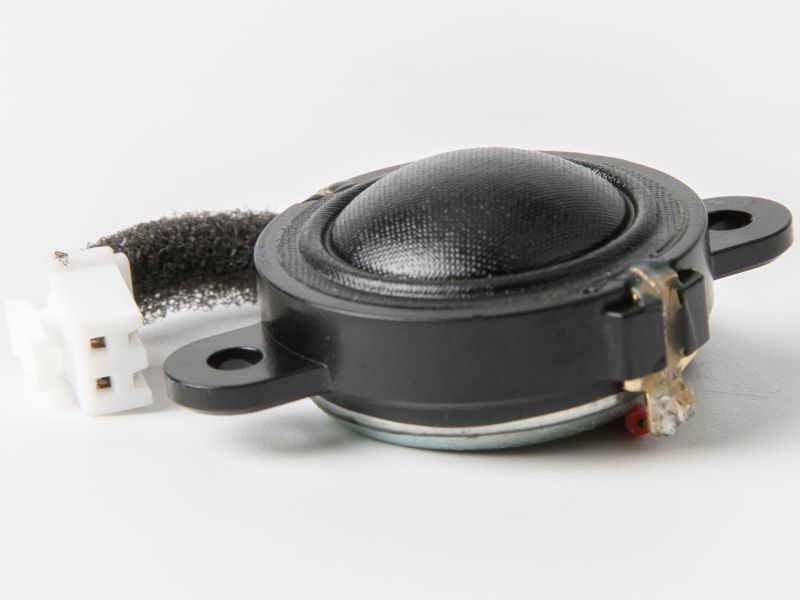

Diaphragm Assembly
The driver features a 16mm Poly-silk diaphragm formed as single piece with suspension. The dome rests on plastic carrier that also consists two mounting holes.
The dome is carefully attached to a 16mm aluminum former voice coil. Further, a common sized connector is used. Optionaly, the connector can be replaced by another type that would suit the best your application, or completelly replaced by conventional fast-on terminals.
Magnetic system uses high-temperature grade neodymium, ensuring the longevity of this tweeter.
Specifications
General Specs
Nominal Diameter
0.6"
Rated Impedance
4 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
5 W
Continuous Power
10 W
Peak Power
20 W
Voice Coil
Diameter
15.2 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
2 mm
T/S Parameters
Resonant Frequency (Fs)
2000.00 Hz
Re
4.00 \u2126
Sensitivity
82.00 dB
Design Details
T-Plate
2 mm
Overall Diameter
26.00 mm
Bolt Circle Diameter
31.80 mm
Mounting Holes
2
Depth (flange to rear)
13.50 mm
Net Weight
0.03 kg
Ordering Codes
Product Code
16TNX8-182
Downloads

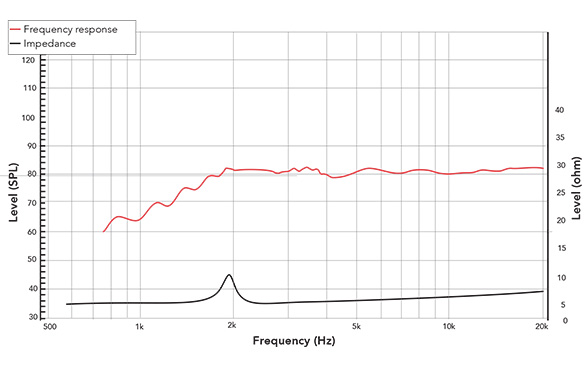

Frequency Response & Impedance

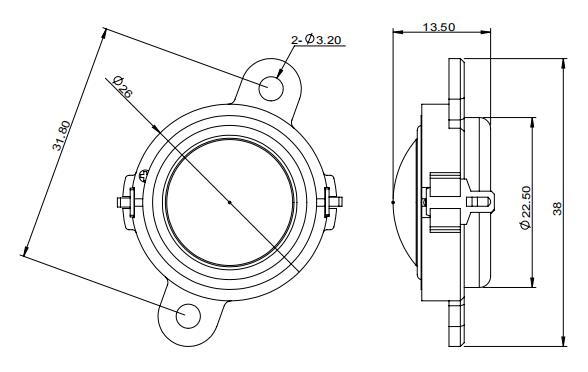

2D Drawing
Frequently Asked Questions
- - small systems with limited baffle space
- - working range up to 20kHz
- - lightweight. ideal for portable products.
AES Power: 5 W,
Continuous: 10 W,
Peak: 20 W.
Sensitivity: 82.00 dB (1W/1m).
