HF
Sub-woofer
0.8"

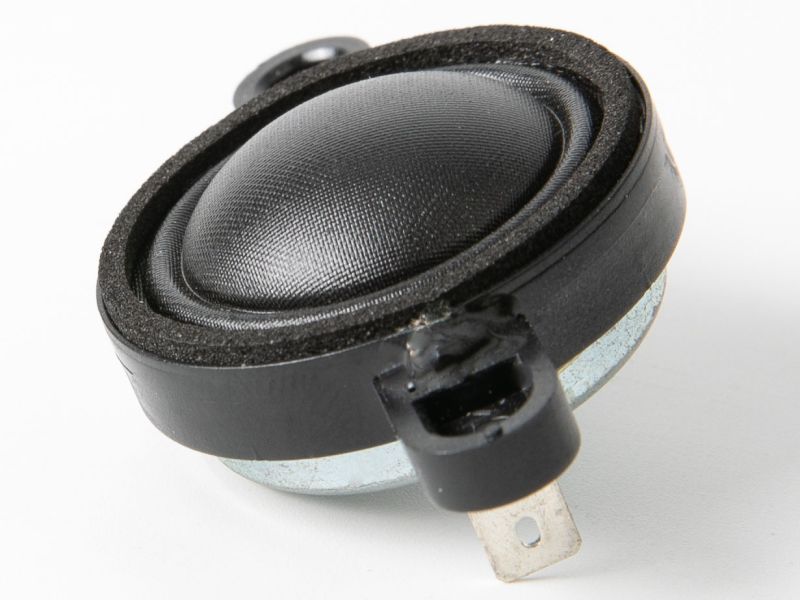

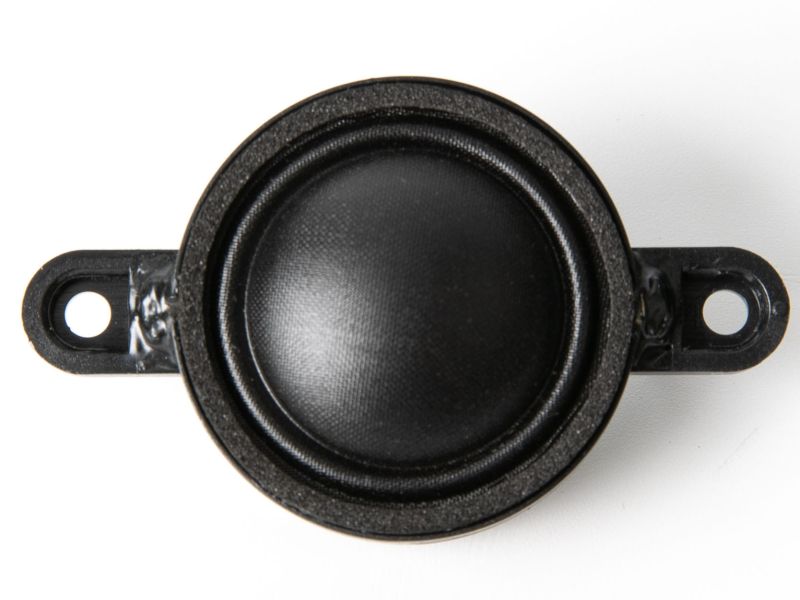

201TN
Code: 201TNX8-399
Dome tweeter/20mm coll/Neo/Aluminium/10W/8ohm
Key Features
- design can be easily implemented in your own waveguide
- wide band frequency response
Quick Specs
Impedance
8 Ω
Program Power
20 W
Sensitivity
86.00 dB
Fs
1900.00 Hz
Magnet
Neodymium
Voice Coil
20.3 mm
Design Notes
The 201TN tweeter has a lower resonance frequency, making the crossover design a non-complicated task. The tweeter is delivered as a “bare” tweeter and shall assembled with your own waveguide or to a baffle with integrated waveguide.
The best application is in tabletop studio monitors, prosumer products, bookshelf speakers, TV bars, micro line-arrays, etc.
The best application is in tabletop studio monitors, prosumer products, bookshelf speakers, TV bars, micro line-arrays, etc.
Specifications
General Specs
Nominal Diameter
0.8"
Rated Impedance
8 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
10 W
Continuous Power
20 W
Peak Power
40 W
Voice Coil
Diameter
20.3 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
1.4 mm
T/S Parameters
Resonant Frequency (Fs)
1900.00 Hz
Re
7.20 \u2126
Sensitivity
86.00 dB
Design Details
T-Plate
2 mm
Overall Diameter
31.50 mm
Bolt Circle Diameter
43.50 mm
Mounting Holes
2
Depth (flange to rear)
19.70 mm
Net Weight
0.04 kg
Ordering Codes
Product Code
201TNX8-399
Downloads

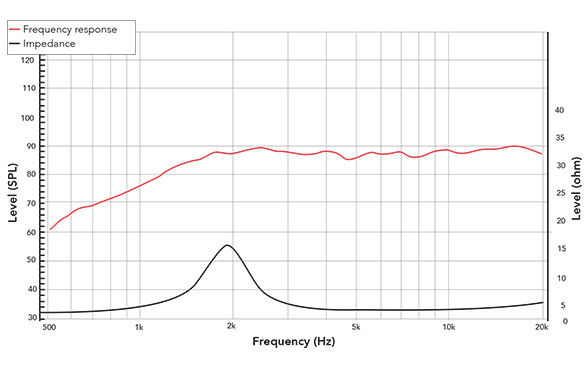

Frequency Response & Impedance

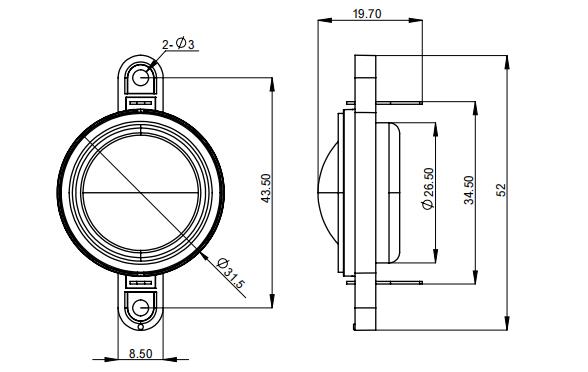

2D Drawing
Frequently Asked Questions
- - design can be easily implemented in your own waveguide
- - wide band frequency response
AES Power: 10 W,
Continuous: 20 W,
Peak: 40 W.
Sensitivity: 86.00 dB (1W/1m).
