125FPM

125FPMX8-187 — Enclosure Design Reference & AI Summary
Generated by REDCATT Speaker Enclosure Tool
=== DRIVER IDENTITY ===
Code:         125FPMX8-187
Platform:     125FPM

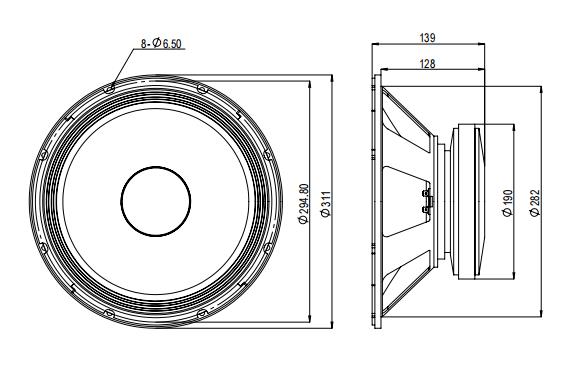

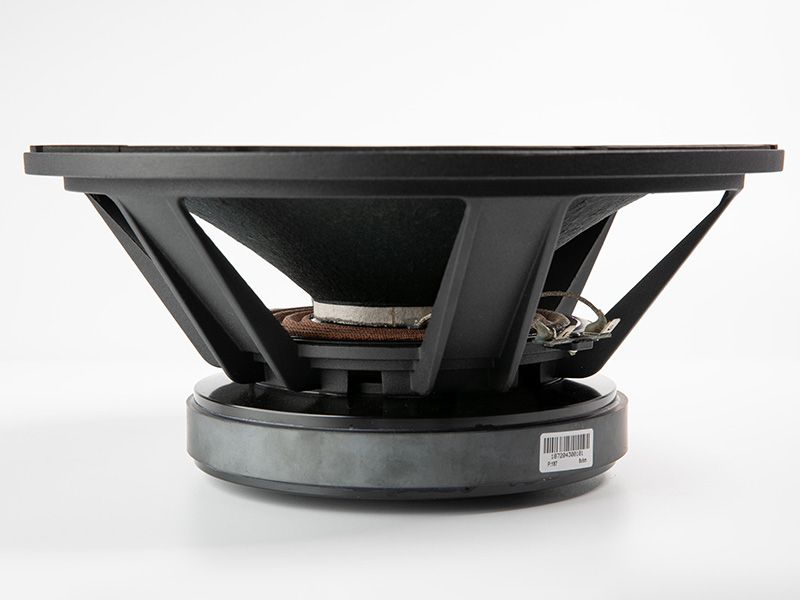

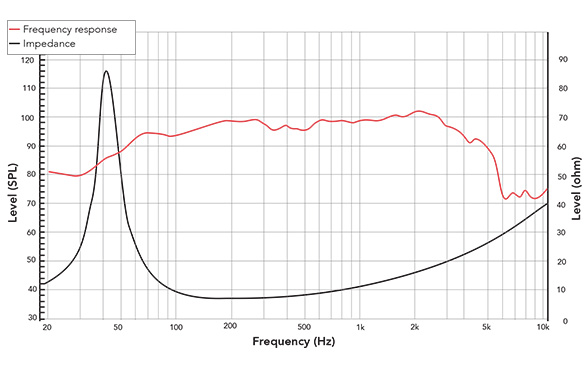

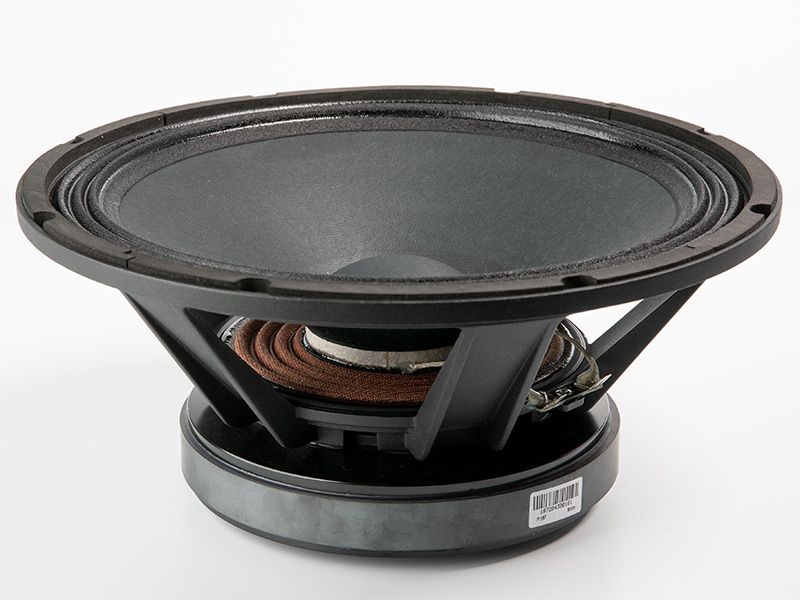

Description:  12-inch Pro Mid-Woofer | Ferrite | Carbon Fiber Paper (Weatherized) | 300W AES / 8Ω
Intended Use: Professional 2-way PA, outdoor/weatherized installations, stage monitors

=== THIELE-SMALL PARAMETERS ===
Fs:          63 Hz
Re:          4.5 Ω
Qes:         0.33
Qms:         7.13
Qts:         0.31
Vas:         48.1 L
Sd:          531 cm²
Sensitivity: 100.0 dB (2.83V/1m) / 97.65 dB (1W/1m)
Mms:         53.2 g
Rms:         2.95 N·s/m
Cms:         0.12 mm/N
Bl:          17.2 T·m
Le:          0.64 mH
Xmax:        2.55 mm (one-way, peak)
Xmech:       12.55 mm
Xprot:       14.6 mm
Power:       300W AES / 600W continuous / 1200W peak / 8Ω nominal
Voice Coil:  76mm CCAW on glass fiber former
Cone:        Carbon fiber reinforced paper (weatherized / humidity resistant)
Surround:    M-shaped constant-geometry fabric
Spider:      Nomex
Basket:      Aluminum
Magnet:      Ferrite

=== DERIVED PARAMETERS ===
Volume displacement (Vd):         Sd × Xmax = 531 × 0.255 cm = 135.4 cm³
Inductance rolloff onset (f_Le):  Re / (2π × Le) = 4.5 / (2π × 0.00064) ≈ 1,119 Hz
Cone radius (r_cone):             √(Sd/π) = √(531/π) = 13.00 cm
Cone beaming onset (f_beam):      c / (π × r_cone) = 34,400 / (π × 13.00) ≈ 842 Hz
Max SPL @ 300W AES:               97.65 + 10·log₁₀(300) = 122.4 dB (1m)
Max SPL @ 600W continuous:        97.65 + 10·log₁₀(600) = 125.4 dB (1m)
Zobel network:                    R_z = 4.5 Ω (series), C_z = Le/Re² = 31.6 μF (series)

=== ENCLOSURE RECOMMENDATION ===
Qts = 0.31 → Vented (bass-reflex) enclosures only.

Sealed enclosures are impractical for this driver. The high motor strength (Bl=17.2 T·m,
Qts=0.31) requires a vented alignment to achieve a flat, extended low-frequency response.
A sealed alignment at Qtc=0.707 would require only ~12 L but the high motor damping would
produce a steeply rising low-frequency response peak; at Qtc=1.0 the box shrinks further
and the response becomes grossly peaked. Vented enclosures are the correct and only choice.

--- VENTED ALIGNMENTS (75mm round port) ---
Port diameter:  75 mm
Port area (Ap): π × (3.75 cm)² = 44.18 cm²
Port velocity limit: ≤22 m/s (pro/PA application)
End correction (flanged + unflanged): ~54 mm subtracted from Leff to obtain physical tube length

Alignment 1 — Compact (stage monitor / wedge / portable cabinet)
  Cabinet volume (Vb):           15 L
  Tuning frequency (Fb):         68 Hz
  Effective port length (Leff):  191 mm
  Physical tube length:          ~137 mm
  Peak port velocity:            13.1 m/s  ✓

Alignment 2 — Standard (general-purpose 2-way PA)
  Cabinet volume (Vb):           20 L
  Tuning frequency (Fb):         60 Hz
  Effective port length (Leff):  184 mm
  Physical tube length:          ~130 mm
  Peak port velocity:            11.6 m/s  ✓

Alignment 3 — Extended low-frequency
  Cabinet volume (Vb):           28 L
  Tuning frequency (Fb):         52 Hz
  Effective port length (Leff):  175 mm
  Physical tube length:          ~121 mm
  Peak port velocity:            10.0 m/s  ✓

NEAR-CONSTANT PORT LENGTH NOTE:
Effective port lengths range only 175–191 mm across all three alignments (16 mm span).
A single 75mm × 130mm port tube serves the standard alignment directly and can be
trimmed ±9 mm to serve the compact or extended alignments. This simplifies tooling and
reduces stocking complexity across multiple cabinet designs sharing this driver platform.

=== CROSSOVER / DSP GUIDANCE ===
Operating band:      ~65–842 Hz (vented Fb to cone beaming onset)
High-pass filter:    Set at or above Fb (52–68 Hz depending on alignment);
                     24 dB/octave Linkwitz-Riley minimum — mandatory given Xmax = 2.55 mm;
                     cone excursion increases steeply below port tuning frequency
Low-pass crossover:  Below 842 Hz (f_beam); 800–1000 Hz to compression driver on horn
                     recommended; 3rd or 4th-order slopes for directivity control
Inductance rolloff:  Begins at ~1,119 Hz; cross well below this point for flat response
EQ / protection:     Subsonic filter mandatory at all times; no unfiltered low-frequency
                     program material below tuning frequency

Zobel network (passive crossover inductance compensation — place across driver terminals):
  R_z = 4.5 Ω in series with C_z = 31.6 μF

=== SUMMARY ===

The 125FPMX8-187 is a 12-inch professional mid-woofer built around a ferrite magnetic circuit with a 76mm CCAW voice coil wound on a glass fiber former and a carbon fiber reinforced paper cone treated for weather resistance, high humidity, and extended outdoor use. The M-shaped constant-geometry fabric surround and Nomex spider provide precise mechanical control across the operating band, while the aluminum basket supports structural rigidity in both permanently installed and portable professional enclosures. Sensitivity is 97.65 dB (1W/1m) / 100.0 dB (2.83V/1m) with a Bl of 17.2 T·m, supporting 300W AES / 600W continuous power handling. Qts = 0.31 reflects a low Qts, high motor strength design optimized to maintain consistent performance at high drive levels, with controlled excursion and reduced thermal compression during long-term operation.

With a Qts of 0.31, this driver requires vented (bass-reflex) enclosures only. Three alignments are provided using a 75mm round port — all three share effective port lengths within a 16mm range, and a single 130mm port tube can serve all three alignments with minor end-trimming:

  • 15 L / 68 Hz — compact monitor or stage wedge; port ~137 mm physical; 13.1 m/s
  • 20 L / 60 Hz — standard general-purpose 2-way PA; port ~130 mm physical; 11.6 m/s
  • 28 L / 52 Hz — extended low-frequency; port ~121 mm physical; 10.0 m/s

Amplification of 300–600W from an 8Ω-rated power amplifier is appropriate, delivering a peak SPL of 122.4 dB at 1 metre (AES rating). A subsonic high-pass filter at the cabinet tuning frequency is mandatory given the 2.55mm Xmax — excursion rises steeply below the port tuning frequency and unprotected operation risks mechanical damage. Crossover to a compression driver or horn at 800–1000 Hz is required; cone beaming onset occurs at approximately 842 Hz and inductance rolloff begins at 1,119 Hz. Third or fourth-order crossover slopes are recommended to maintain controlled directivity above 842 Hz. A Zobel network (4.5Ω series with 31.6 μF, placed across the driver terminals) is recommended for passive crossover designs to compensate for voice coil inductance rise.

The 125FPMX8-187 is suited for compact vented 2-way PA enclosures requiring environmental durability and weather resistance; permanently installed systems in outdoor venues, arenas, and harsh-environment applications where humidity and temperature cycling would degrade standard paper-cone drivers; stage monitor wedges crossed to a compression driver or horn at 1.0 kHz; and portable PA systems requiring a combination of high sensitivity, controlled power handling, and extended service life in demanding conditions.
