121FIND

LOUDSPEAKER ENCLOSURE DESIGN REPORT
Driver: 121FINDX8-234
Generated: 2026-04-12
Application: Professional 2-way PA systems, touring and installation
DRIVER SPECIFICATIONS
Code             : 121FINDX8-234

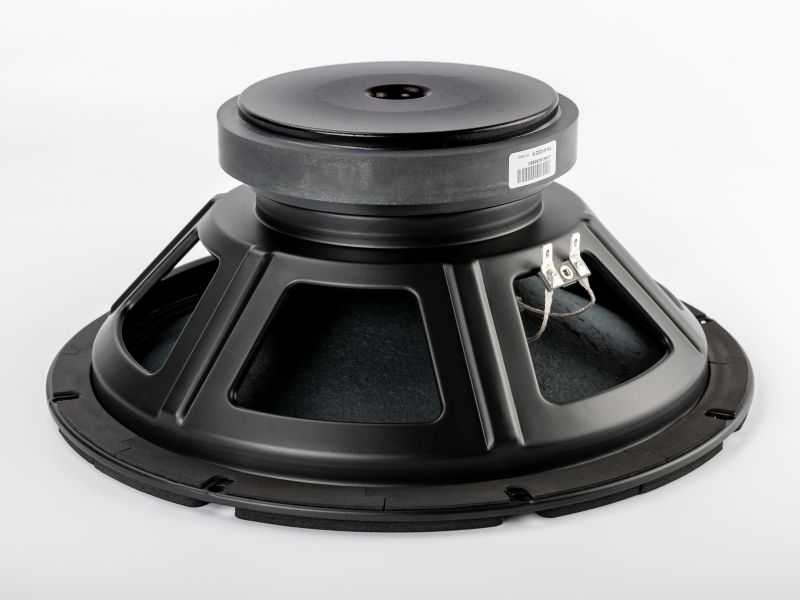

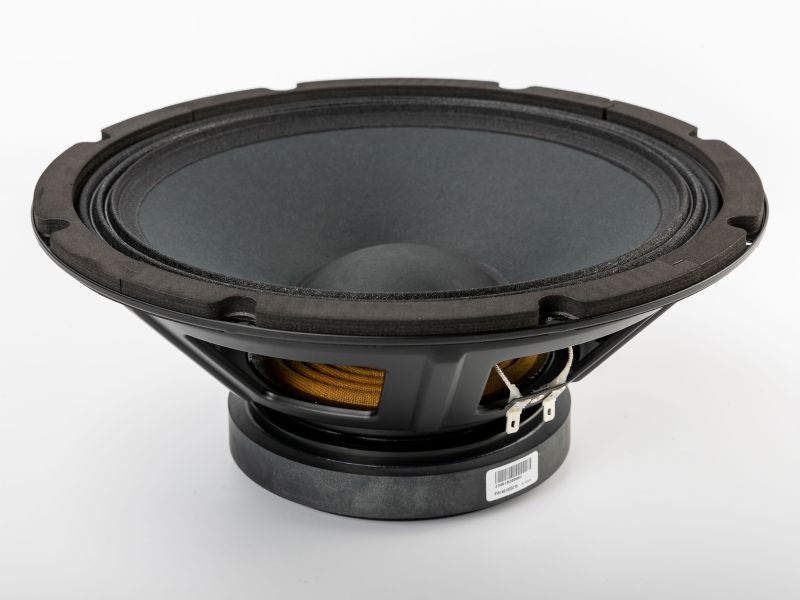

Description      : 12" Ferrite Pro Mid-Woofer — Glass Fiber Treated Paper Cone
Nominal Impedance: 8 Ω
AES Power        : 250 W
Continuous Power : 500 W
Peak Power       : 1,000 W

Fs               : 63 Hz
Re               : 5.3 Ω
Qes              : 0.65
Qms              : 7.47
Qts              : 0.60
Vas              : 49.8 L
Sd               : 531 cm²
Sensitivity      : 96.6 dB (1 W / 1 m)
Mms              : 50.8 g
Rms              : 2.69 kg/s
Cms              : 0.13 mm/N
Bl               : 12.9 T·m
Le               : 0.52 mH
Xmax             : 3.75 mm (one-way, peak)
Xmech            : 11.75 mm

Voice Coil       : 50.8 mm (2"), CCAW, Glass Fiber former
Cone             : Glass fiber treated paper (weatherized, water-repellent)
Surround         : Fabric, M-shaped profile
Spider           : Nomex (non-flammable)
Basket           : Steel (weatherization coated)
Magnet           : Ferrite
DERIVED PARAMETERS
Volume displacement
  Vd = Sd × Xmax = 531 cm² × 0.375 cm = 199.1 cm³

Inductance rolloff onset
  f_Le = Re / (2π × Le) = 5.3 / (2π × 0.00052) ≈ 1,622 Hz

Cone beaming onset
  r_cone = √(Sd / π) = √(531 / 3.14159) = 13.00 cm
  f_beam = c / (π × r_cone) = 34,400 / (3.14159 × 13.00) ≈ 843 Hz

Working band        : ~70 Hz – 843 Hz
Crossover to horn   : 800 Hz – 1.2 kHz

Maximum SPL (anechoic, 1 m)
  At 250 W AES   : 96.6 + 10·log₁₀(250) = 96.6 + 24.0 = 120.6 dB
  At 500 W cont  : 96.6 + 10·log₁₀(500) = 96.6 + 27.0 = 123.6 dB
VARIANT COMPARISON: 121FIND FAMILY
┌───────────────────┬──────────────────┬──────────────────┐
│ Parameter         │ 121FINDX4-233    │ 121FINDX8-234    │
├───────────────────┼──────────────────┼──────────────────┤
│ Impedance         │ 4 Ω              │ 8 Ω              │
│ Fs                │ 59 Hz            │ 63 Hz            │
│ Qts               │ 0.52             │ 0.60             │
│ Sensitivity       │ 96.4 dB          │ 96.6 dB          │
│ Bl                │ 10.2 T·m         │ 12.9 T·m         │
│ Le                │ 0.32 mH          │ 0.52 mH          │
│ Xmax              │ 1.85 mm          │ 3.75 mm          │
│ Vd                │ 98.2 cm³         │ 199.1 cm³        │
│ Enclosure         │ Vented / Sealed  │ Sealed / Vented  │
└───────────────────┴──────────────────┴──────────────────┘

Key differences:
  • 234 (8Ω) has 2× the Xmax and 2× the Vd → significantly more
    bass output capability per watt at high excursion
  • 234 has higher Qts (0.60 vs 0.52) → sealed alignments are more
    natural; vented possible but requires larger enclosures
  • 233 (4Ω) has lower Le (0.32 mH) → flatter impedance through the
    crossover region; preferred where passive crossover accuracy is
    critical
  • 233 suits 4Ω amplifier loads and parallel daisy-chain
    configurations; 234 is the standard 8Ω single-driver load
ENCLOSURE RECOMMENDATION
Qts = 0.60 → Both sealed and vented enclosures are viable.
Sealed is the preferred alignment for this Qts value, providing
controlled transient response and predictable rolloff. Vented is
viable where deeper bass extension or higher efficiency are required
for PA/touring applications.
SEALED ENCLOSURE ALIGNMENTS (PRIMARY)
Formula: Vb = Vas / ((Qtc / Qts)² − 1)
         fc  = Fs × (Qtc / Qts)
         f-3dB: u = [−(2 − 1/Qtc²) + √((2 − 1/Qtc²)² + 4)] / 2
                Ω = √u ;  f-3dB = Ω × fc

┌────────────────────────────────────────────────────────────────────┐
│ Alignment │ Vb (net) │  Qtc  │    fc    │ f−3dB  │ Character      │
├───────────┼──────────┼───────┼──────────┼────────┼────────────────┤
│     A     │   28 L   │ 1.00  │ 105.0 Hz │  83 Hz │ Compact / flat │
│     B     │   17 L   │ 1.20  │ 126.0 Hz │  93 Hz │ Very compact   │
│     C     │   49 L   │ 0.85  │  89.3 Hz │  77 Hz │ Maximum ext.   │
└────────────────────────────────────────────────────────────────────┘

--- Sealed A — 28 L / Qtc = 1.00 ---
  Vb = 49.8 / ((1.00/0.60)² − 1) = 49.8 / 1.778 = 28.0 L
  fc = 63 × (1.00/0.60) = 105.0 Hz
  f-3dB = 0.786 × 105.0 = 82.5 Hz → 83 Hz

  Practical compact sealed format for stage monitors, 2-way PA,
  and installed systems. Controlled transient response; suited to
  applications where excursion protection and predictable rolloff
  above 80 Hz are the priority.

--- Sealed B — 17 L / Qtc = 1.20 ---
  Vb = 49.8 / ((1.20/0.60)² − 1) = 49.8 / 3.00 = 16.6 L → 17 L
  fc = 63 × (1.20/0.60) = 126.0 Hz
  f-3dB = 0.736 × 126.0 = 92.7 Hz → 93 Hz

  Minimum practical sealed volume. Suited to compact installations,
  under-stage fill, and systems relying on a dedicated subwoofer
  for content below 90–100 Hz. Mandatory high-pass filter at
  80–100 Hz (DSP or passive).

--- Sealed C — 49 L / Qtc = 0.85 ---
  Vb = 49.8 / ((0.85/0.60)² − 1) = 49.8 / 1.007 = 49.4 L → 49 L
  fc = 63 × (0.85/0.60) = 89.3 Hz
  f-3dB = 0.859 × 89.3 = 76.7 Hz → 77 Hz

  Maximum bass extension for a sealed alignment; enclosure volume
  is large for a touring PA cabinet but practical for permanent
  installation. Well-damped response; preferred for installed
  systems where a larger footprint is acceptable and flat extended
  bass is required.
VENTED ENCLOSURE ALIGNMENTS (ALTERNATIVE — PA / TOURING)
Port: 100 mm round (Ap = 78.54 cm²)
  Vd = 199.1 cm³; a 75mm port approaches the hi-fi velocity limit
  at tighter tunings (>17 m/s). 100mm is specified for PA
  applications; 75mm may be used for Fb ≤ 55 Hz where velocities
  fall within hi-fi limits.

Leff = (Ap × c²) / (4π² × Fb² × Vb) ; Port velocity: v_peak = Vd × 2π × Fb / Ap
  Vd = 1.991 × 10⁻⁴ m³ ; Ap = 7.854 × 10⁻³ m²

┌──────────────────────────────────────────────────────────────────────┐
│ Alignment │ Vb (net) │  Fb   │ 100mm Port Length│ Port Velocity     │
├───────────┼──────────┼───────┼──────────────────┼───────────────────┤
│     A     │   25 L   │ 68 Hz │      204 mm      │  10.8 m/s  ✓     │
│     B     │   35 L   │ 60 Hz │      187 mm      │   9.6 m/s  ✓     │
│     C     │   50 L   │ 52 Hz │      174 mm      │   8.3 m/s  ✓     │
└──────────────────────────────────────────────────────────────────────┘

Port length calculations:
  Alignment A: Leff = (78.54 × 1,183,360,000) / (39.478 × 4624 × 25,000)
                    = 9.298×10¹⁰ / 4.564×10⁹ = 204 mm
  Alignment B: Leff = (78.54 × 1,183,360,000) / (39.478 × 3600 × 35,000)
                    = 9.298×10¹⁰ / 4.974×10⁹ = 187 mm
  Alignment C: Leff = (78.54 × 1,183,360,000) / (39.478 × 2704 × 50,000)
                    = 9.298×10¹⁰ / 5.337×10⁹ = 174 mm

Physical tube lengths (Leff minus ~75 mm end corrections): 99–129 mm —
easily accommodated in any standard 12" pro cabinet depth.

--- Vented Alignment A — 25 L / Fb = 68 Hz ---
  Compact PA cabinet, tuned above Fs. Strong mid-bass output and
  excursion protection. Suited to compact 2-way touring cabinets
  and stage monitors.

--- Vented Alignment B — 35 L / Fb = 60 Hz ---
  Balanced alignment near Fs. Recommended general-purpose vented
  format for standalone 2-way PA and installation enclosures.

--- Vented Alignment C — 50 L / Fb = 52 Hz ---
  Extended low-frequency coverage to approximately 49 Hz.
  Suited to larger installed 2-way enclosures without a dedicated
  subwoofer. Mandatory high-pass filter at 40–45 Hz.
CROSSOVER AND SYSTEM INTEGRATION
Crossover to compression driver on horn (acoustic): 800 Hz – 1.2 kHz
  f_beam = 843 Hz (primary upper constraint — identical to 4Ω variant)
  f_Le   = 1,622 Hz (above crossover; Le rise at crossover is more
           pronounced than the 4Ω-233 variant due to higher Le)

  Le = 0.52 mH (higher than 233's 0.32 mH); a Zobel network is
  more important for this variant to maintain crossover flatness
  at 800 Hz – 1.2 kHz.

Zobel network:
  R_z = 5.3 Ω (use 5.6 Ω nearest standard)
  C_z = Le / Re² = 0.52e-3 / 28.09 = 18.5 μF → use 18 μF, 100 V non-polar
