LF
Mid-Woofer
6"
61XR
Code: DR-6-006-4R-B2-C0001
Woofer/XR Woofer/6inch/Neo/Paper/100W/4ohm
Key Features
- EXTENDED FREQUENCY RESPONSE, incredible sound reproduction clarity
- Secondary AND STATIC shorting COIL
- High power handling
Quick Specs
Impedance
4 Ω
Program Power
200 W
Sensitivity
87.02 dB
Fs
64.00 Hz
Magnet
Neodymium
Voice Coil
44.5 mm
Design Notes
The 61XR was designed to be simply the best driver for 2-way and multi-way systems on the market. We bring this with clarity in the mid-frequencies and undistorted bass. The combination of our XR patented technology with static shorting coil brings an nonparallel opportunity to the audio designers.
Motor Design
The magnetic design incorporates large neodymium magnets placed along the voice coil winding, together with the 2nd and static coil placed on the pole piece. This has allowed us to push the cone excursion to 30mm peak to peak, while lowering the inductance. The shorting coil covers the complete main coil excursion. This is also an improvement compared to some previous designs on the market.
Our extensive R&D on the surround foam material has yielded material that has proven its benefits over and over again. The surround is extremely light, yet it allows the cone excursion as the traditional, but heavier, rubber surround.
61XR best application is in hi-quality home hi-fi applications and studio monitors where the requirements for precise sound reproduction without distortion artifacts are required.
Motor Design
The magnetic design incorporates large neodymium magnets placed along the voice coil winding, together with the 2nd and static coil placed on the pole piece. This has allowed us to push the cone excursion to 30mm peak to peak, while lowering the inductance. The shorting coil covers the complete main coil excursion. This is also an improvement compared to some previous designs on the market.
Our extensive R&D on the surround foam material has yielded material that has proven its benefits over and over again. The surround is extremely light, yet it allows the cone excursion as the traditional, but heavier, rubber surround.
61XR best application is in hi-quality home hi-fi applications and studio monitors where the requirements for precise sound reproduction without distortion artifacts are required.
Specifications
General Specs
Nominal Diameter
6"
Rated Impedance
4 Ohm
Magnet
Neodymium
Basket Material
Aluminum
Power Handling
AES Power
100 W
Continuous Power
200 W
Peak Power
400 W
Voice Coil
Diameter
44.5 mm
Winding Wire
Copper
Former
Glass Fiber
Winding Height
10.3 mm
T/S Parameters
Resonant Frequency (Fs)
64.00 Hz
Re
3.10 \u2126
Qes
0.960
Qms
2.88
Qts
0.720
Vas
8.60 liters
Sd
132.70 cm\u00B2
Mms
17.30 grams
Rms
2.40
Cms
0.3600
Bl
4.77 T\u00B7m
Le
0.060 mH
Sensitivity
87.02 dB
Design Details
Surround Material
Foam
Cone/Dome Material
Paper CF
Spider
Nomex
T-Plate
26.5 mm
Xmax (peak)
8.1 mm
Xmech
16.6 mm
Overall Diameter
181.50 mm
Bolt Circle Diameter
169.50 mm
Baffle Cutout Dia.
151.00 mm
Mounting Holes
6
Depth (flange to rear)
94.00 mm
Net Weight
1.50 kg
Ordering Codes
Product Code
DR-6-006-4R-B2-C0001
Downloads

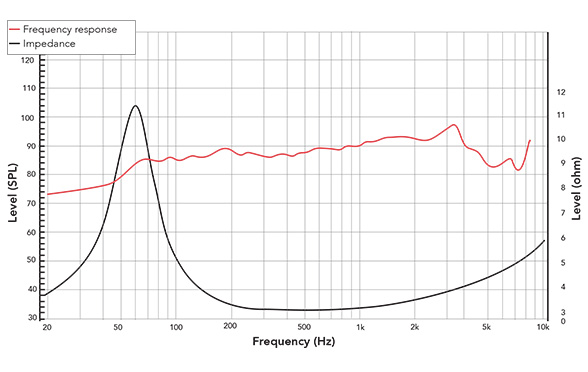

Frequency Response & Impedance

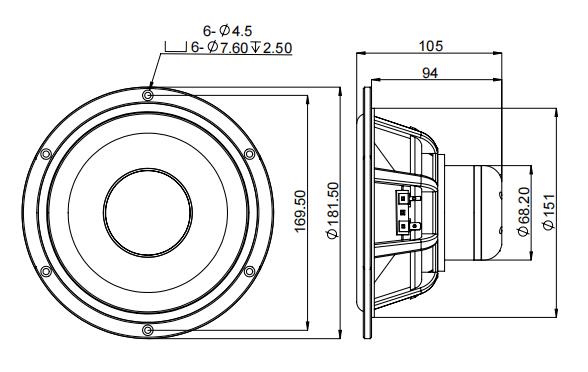

2D Drawing
Technical Summary
The 61XRX4-404D is a 6-inch mid-woofer engineered for high-fidelity home audio and studio monitoring, built around the proprietary XR motor topology with radial neodymium magnets and both secondary and static shorting coils. The dual shorting coil design reduces voice coil inductance to just 0.06 mH, virtually eliminating inductive impedance rise and enabling extended, distortion-free midrange performance well suited for precise crossover integration.
The driver handles 100 W AES (200 W continuous) into its 4-ohm nominal impedance, with exceptional mechanical headroom - 8.1 mm Xmax and 16.6 mm Xmech (30 mm peak-to-peak) - enabling sustained low-frequency output well below the sealed resonance. This excursion capability, unusual for a 6-inch frame, makes the driver effective in both standalone 2-way designs and in active systems with subwoofer support.
Intended applications include premium bookshelf and standmount loudspeakers, nearfield and midfield studio monitors, and mid-woofer duty in multi-way floorstanding systems where clarity, low distortion, and precise imaging are paramount.
The driver handles 100 W AES (200 W continuous) into its 4-ohm nominal impedance, with exceptional mechanical headroom - 8.1 mm Xmax and 16.6 mm Xmech (30 mm peak-to-peak) - enabling sustained low-frequency output well below the sealed resonance. This excursion capability, unusual for a 6-inch frame, makes the driver effective in both standalone 2-way designs and in active systems with subwoofer support.
Intended applications include premium bookshelf and standmount loudspeakers, nearfield and midfield studio monitors, and mid-woofer duty in multi-way floorstanding systems where clarity, low distortion, and precise imaging are paramount.
Recommended enclosure volumes are simulated results. For best enclosure volumes and tuning, we recommend secondary simulation and careful evaluation. Several rounds of samples and fine-tuning may be required for optimal results.
Enclosure Recommendations
Recommended enclosure alignments (sealed): - 8 liters (Qtc approx. 1.0): compact sealed, punchy character with broad resonance lift; system resonance approx. 70 Hz; best for bookshelf or compact 2-way cabinets - 12 liters (Qtc approx. 0.85): moderate sealed, slightly warm character; system resonance approx. 67 Hz; recommended starting point for 2-way home audio - 20 liters (Qtc approx. 0.72): larger sealed, natural smooth rolloff with room gain; system resonance approx. 65 Hz; in-room -3 dB approx. 45-55 Hz with boundary reinforcement Vented enclosures are not recommended for this driver due to the high Qts (0.72); port dimensions become impractical in any cabinet volume suitable for a 6-inch mid-woofer.
Frequently Asked Questions
- - EXTENDED FREQUENCY RESPONSE, incredible sound reproduction clarity
- - Secondary AND STATIC shorting COIL
- - High power handling
Recommended enclosure alignments (sealed): - 8 liters (Qtc approx. 1.0): compact sealed, punchy character with broad resonance lift; system resonance approx. 70 Hz; best for bookshelf or compact 2-way cabinets - 12 liters (Qtc approx. 0.85): moderate sealed, slightly warm character; system resonance approx. 67 Hz; recommended starting point for 2-way home audio - 20 liters (Qtc approx. 0.72): larger sealed, natural smooth rolloff with room gain; system resonance approx. 65 Hz; in-room -3 dB approx. 45-55 Hz with boundary reinforcement Vented enclosures are not recommended for this driver due to the high Qts (0.72); port dimensions become impractical in any cabinet volume suitable for a 6-inch mid-woofer.
Outdoor / weather-resistant; compact 2-way pa top or hi-fi mid-woofer; weight-critical installs
AES Power: 100 W,
Continuous: 200 W,
Peak: 400 W.
Sensitivity: 87.02 dB (1W/1m).
