5FHW

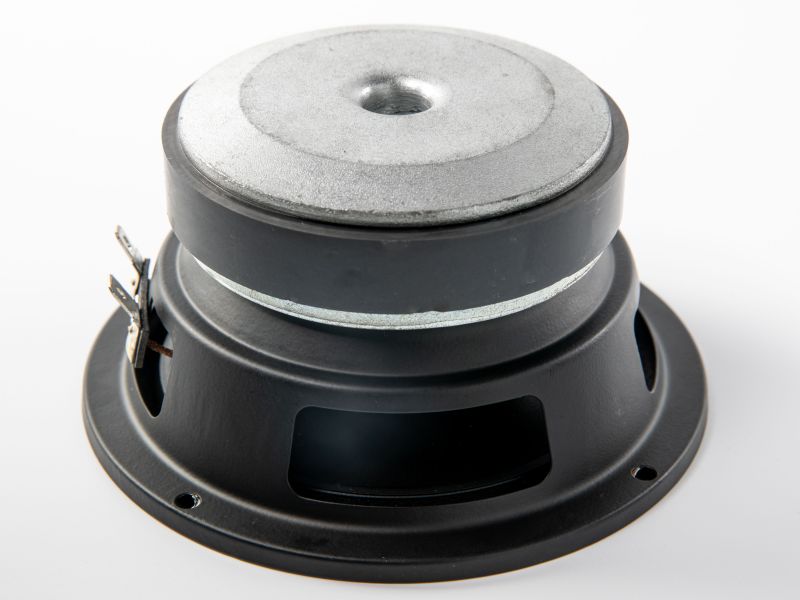

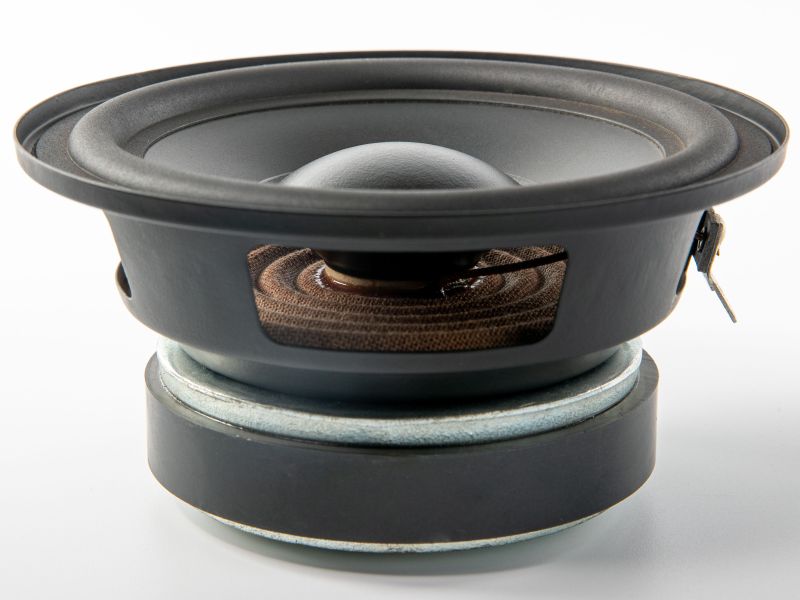

The 5FHW was designed for woofer applications in either home hi-fi or outdoor speaker systems.
Our engineers have designed polypropylene cone and dustcap for this driver, combined with ferrite magnetic circuit.
Overall, this model provides great level of balance between the performance and cost.
The cone, dust cap and surround material are produced with UV stabilizers. Furthermore, the state of the art REDCATT adhesives dispensing and selection ensures the driver is waterproof and thus can be used in outdoor applications.

The 5FHWX4-380 is a 5-inch general-purpose woofer built for demanding environments and broad deployment. Its polypropylene cone and dust cap are moulded with UV stabilisers to resist solar degradation, the NBR surround withstands ozone and moisture exposure without cracking, and all adhesive joints are assembled using REDCATT waterproof dispensing processes - making the driver fully weatherproof and suitable for permanent outdoor installations, marine enclosures, poolside audio, and any application where a conventional paper-cone driver would fail. The ferrite motor paired with a polypropylene cone and Nomex spider provides a robust, thermally stable mechanical system rated at 30 W AES (60 W continuous) into 4 ohms, with an aluminium former ensuring efficient heat transfer under sustained drive. The driver operates on a nominal 4-ohm load, making it straightforward to drive from mainstream consumer amplifiers, class-D modules, and portable battery amplifiers.

For compact or flush-mounted applications where a port is impractical, sealed alignments spanning 0.9 to 2.1 litres are fully viable. The Butterworth sealed alignment at 2.1 L produces Qtc = 0.707 - the maximally flat response with no resonant peak - delivering -3 dB at 101 Hz from a sealed cabinet half the volume of the recommended vented box. This sealed configuration is particularly well-suited to active DSP systems, where a Linkwitz Transform applied to the sealed response can extend usable bass down toward 50-60 Hz from a compact 2.1 L enclosure, combining the mechanical simplicity of a sealed box with vented-class bass extension. Smaller sealed alignments at 0.9 and 1.3 L are practical for in-wall, on-wall, rear-fill, and automotive door installations where the smallest possible cabinet depth is the priority.

The 5FHWX4-380 is suited for compact outdoor speaker columns, garden and terrace audio, marine topside speakers, portable battery-powered enclosures, in-wall and in-ceiling installations in exposed areas, small hi-fi standmounts, two-way multimedia monitors, and rear- or surround-channel speakers in outdoor cinema and entertainment systems. Its weatherproof materials require no additional protective treatment for the driver itself, and its 4-ohm sensitivity-normalised output of 86.39 dB allows a pair to be driven to useful outdoor levels from amplifiers of 20-50 W per channel.
