LF
Mid-Woofer
8"

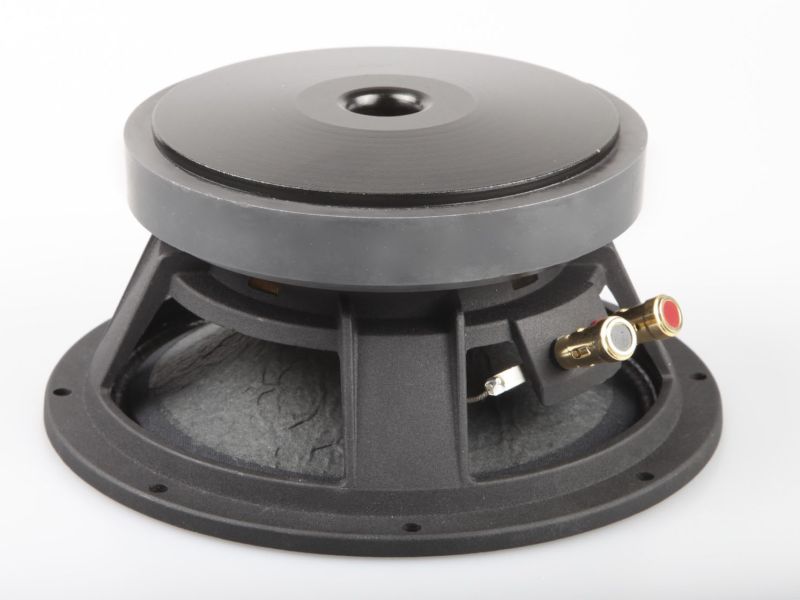

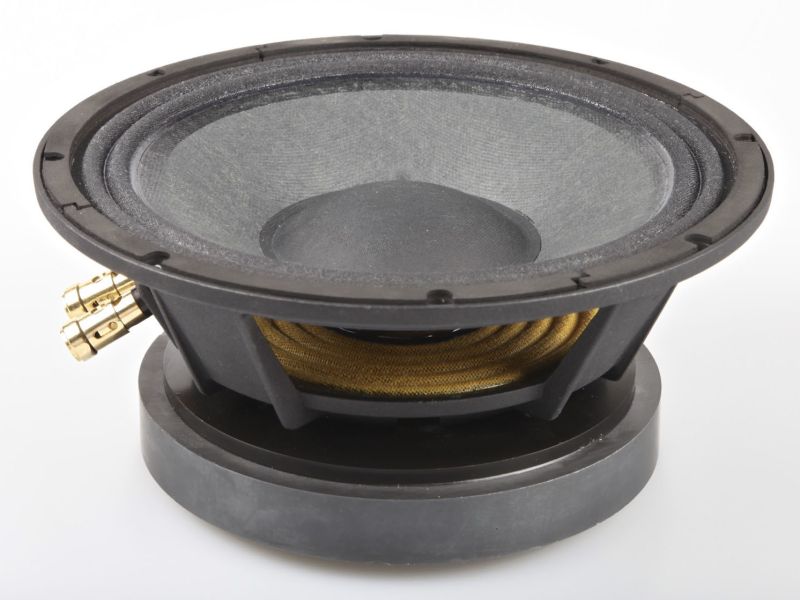

8FIND
Code: 8FINDX8-030
Woofer/8inch/Ferrite/Paper/200W/8ohm
Key Features
- EXTENDED FREQUENCY RESPONSE, high efficiency
- Carbon fiber loaded and reinforced paper cone
- Nomex spider
Quick Specs
Impedance
8 Ω
Program Power
400 W
Sensitivity
97.33 dB
Fs
70.00 Hz
Magnet
Ferrite
Voice Coil
50.8 mm
Design Notes
The 8FIND is a high efficiency, (97 dB 1watt / 1 meter) 8-inch mid bass woofer with incredibly linear frequency response characteristics, high power handling capability while generating low harmonic distortion artifacts.
The 8FIND uses a lightweight carbon fiber loaded cone assembly along with a precision double roll surround. This combination provides remarkable strength, high efficiency and a excursion linearity of 9.4mm.
Magnetic Circuit
REDCATT engineers have developed an efficient, ferrite based magnetic circuit, capable of delivering the highest level of performance providing a consistent, high integrity magnetic flux gap, low distortion characteristic. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.
The 8FIND uses a lightweight carbon fiber loaded cone assembly along with a precision double roll surround. This combination provides remarkable strength, high efficiency and a excursion linearity of 9.4mm.
Magnetic Circuit
REDCATT engineers have developed an efficient, ferrite based magnetic circuit, capable of delivering the highest level of performance providing a consistent, high integrity magnetic flux gap, low distortion characteristic. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.
Specifications
General Specs
Nominal Diameter
8"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
200 W
Continuous Power
400 W
Peak Power
800 W
Voice Coil
Diameter
50.8 mm
Winding Wire
CCAW
Former
Glass Fiber
Winding Height
12.4 mm
T/S Parameters
Resonant Frequency (Fs)
70.00 Hz
Re
5.70 \u2126
Qes
0.250
Qms
6.40
Qts
0.250
Vas
18.20 liters
Sd
227.00 cm\u00B2
Mms
20.70 grams
Rms
1.42
Cms
0.2500
Bl
14.30 T\u00B7m
Le
0.480 mH
Sensitivity
97.33 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper GF
Spider
Nomex
T-Plate
8 mm
Xmax (peak)
2.2 mm
Xmech
10.2 mm
Overall Diameter
209.50 mm
Bolt Circle Diameter
197.50 mm
Baffle Cutout Dia.
185.00 mm
Mounting Holes
8
Depth (flange to rear)
91.50 mm
Net Weight
3.73 kg
Ordering Codes
Product Code
8FINDX8-030
Downloads

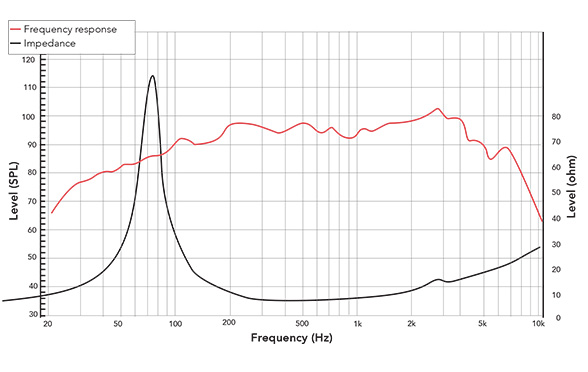

Frequency Response & Impedance

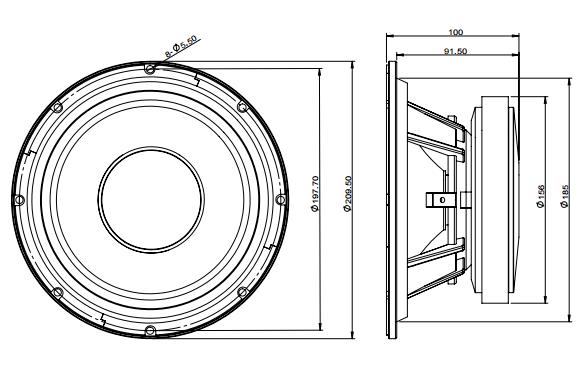

2D Drawing
Enclosure Recommendations
Recommended enclosure alignments (bass reflex): - 22 liters tuned to 66 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 56 Hz, HP filter 58 Hz - 24 liters tuned to 58 Hz: balanced response, general-purpose (recommended); -3 dB approx. 49 Hz, HP filter 48 Hz - 24 liters tuned to 55 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 47 Hz, HP filter 43 Hz
Frequently Asked Questions
- - EXTENDED FREQUENCY RESPONSE, high efficiency
- - Carbon fiber loaded and reinforced paper cone
- - Nomex spider
Recommended enclosure alignments (bass reflex): - 22 liters tuned to 66 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 56 Hz, HP filter 58 Hz - 24 liters tuned to 58 Hz: balanced response, general-purpose (recommended); -3 dB approx. 49 Hz, HP filter 48 Hz - 24 liters tuned to 55 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 47 Hz, HP filter 43 Hz
High-efficiency vented pa mid-woofer or bass-mid cabinet
AES Power: 200 W,
Continuous: 400 W,
Peak: 800 W.
Sensitivity: 97.33 dB (1W/1m).
