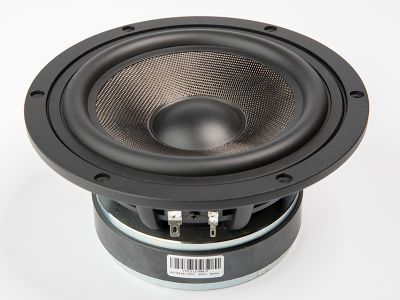

LF
Mid-Woofer
6"
6FHM
Code: 6FHMX8-152C
Mid-Woofer/6inch/Ferrite/CF Honeycomb/40W/8ohm
Key Features
- 3 layer cone, consisting hi-end 1k carbon fiber on nomex honeycomb core
- Fem optimized motor structure
- Low harmonic distortion
Quick Specs
Impedance
8 Ω
Program Power
80 W
Sensitivity
89.01 dB
Fs
36.00 Hz
Magnet
Ferrite
Voice Coil
33 mm
Design Notes

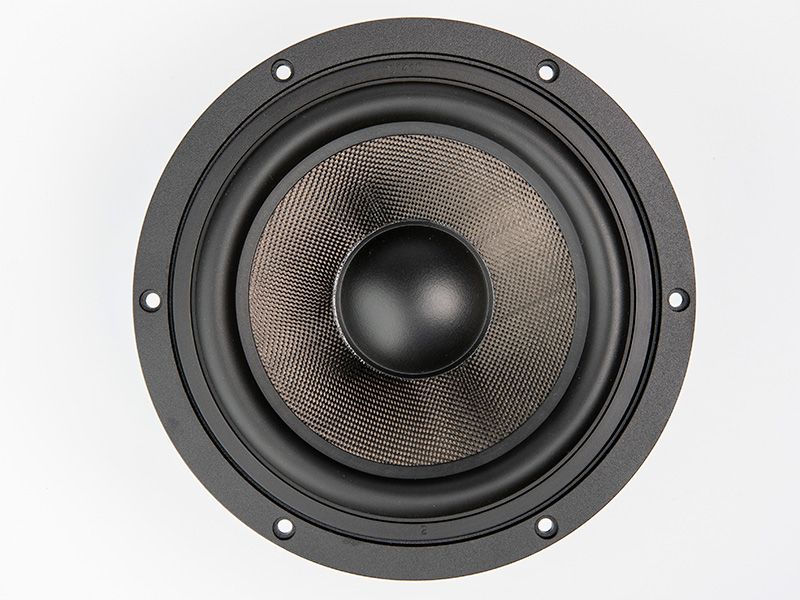

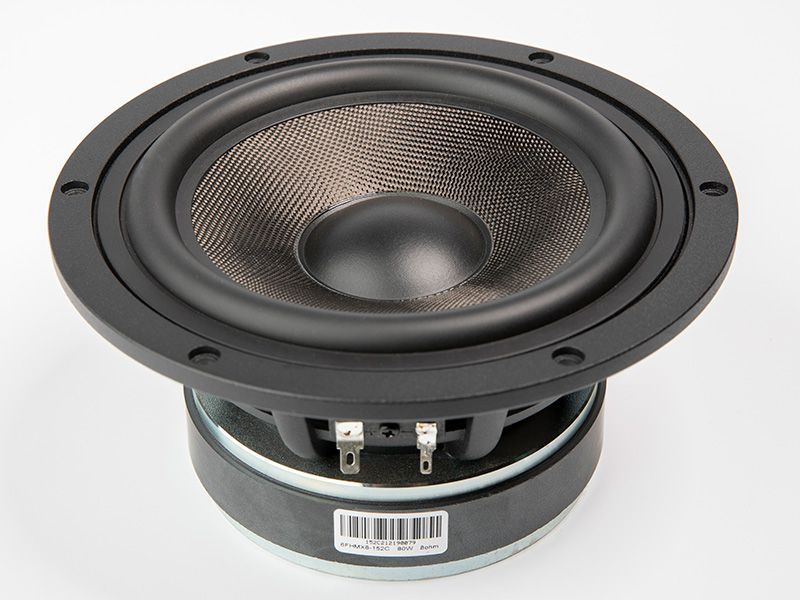

The 6FHM is a high efficiency, (89 dB 1watt / 1 meter) 6-inch mid-woofer with incredibly linear frequency response characteristics and ultra low harmonic distortion artifacts. The 6FHM uses a lightweight 1k carbon fiber material, assembled on both sides of Nomex honey-comb core. This unique cone provides the ideal weight to strength ratio. The rubber surround has been FEM modeled and optimized. The honeycomb cone with high-end 1k carbon fiber material provides remarkable strength, while pushing the cone break-up modes to high frequencies, significantly extending the working range of the speaker.
The cone
The 6FHM cone is made using 1k carbon fiber honey-comb, placed from both sides of Nomex core, while the dustcap is made off hard-anodization reinforced aluminum. The dustcap shape and the hard anodizing are further improving the mid to high frequency behavior.
The cone
The 6FHM cone is made using 1k carbon fiber honey-comb, placed from both sides of Nomex core, while the dustcap is made off hard-anodization reinforced aluminum. The dustcap shape and the hard anodizing are further improving the mid to high frequency behavior.
Specifications
General Specs
Nominal Diameter
6"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
40 W
Continuous Power
80 W
Peak Power
160 W
Voice Coil
Diameter
33 mm
Winding Wire
CCAR
Former
Kapton
Winding Height
14.5 mm
T/S Parameters
Resonant Frequency (Fs)
36.00 Hz
Re
6.90 \u2126
Qes
0.290
Qms
12.70
Qts
0.290
Vas
26.10 liters
Sd
132.70 cm\u00B2
Mms
18.10 grams
Rms
0.32
Cms
1.0800
Bl
9.89 T\u00B7m
Le
0.260 mH
Sensitivity
89.01 dB
Design Details
Surround Material
NBR
Cone/Dome Material
Composite
Spider
Nomex
T-Plate
6 mm
Xmax (peak)
4.25 mm
Xmech
10.25 mm
Overall Diameter
181.50 mm
Bolt Circle Diameter
169.50 mm
Baffle Cutout Dia.
151.00 mm
Mounting Holes
6
Depth (flange to rear)
81.70 mm
Net Weight
2.40 kg
Ordering Codes
Product Code
6FHMX8-152C
Downloads

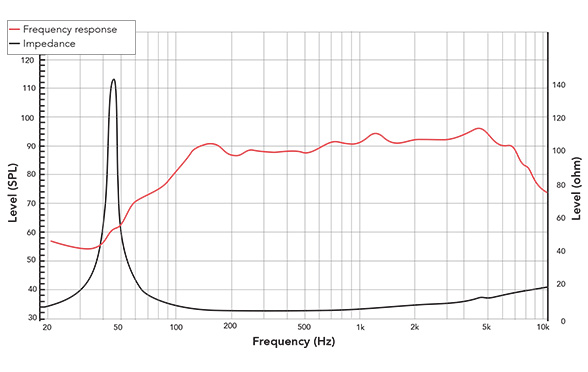

Frequency Response & Impedance

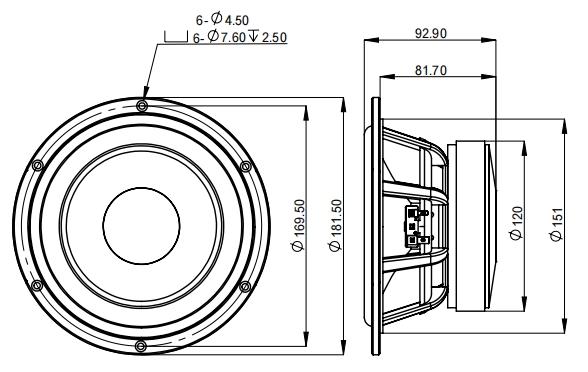

2D Drawing
Frequently Asked Questions
- - 3 layer cone, consisting hi-end 1k carbon fiber on nomex honeycomb core
- - Fem optimized motor structure
- - Low harmonic distortion
AES Power: 40 W,
Continuous: 80 W,
Peak: 160 W.
Sensitivity: 89.01 dB (1W/1m).
