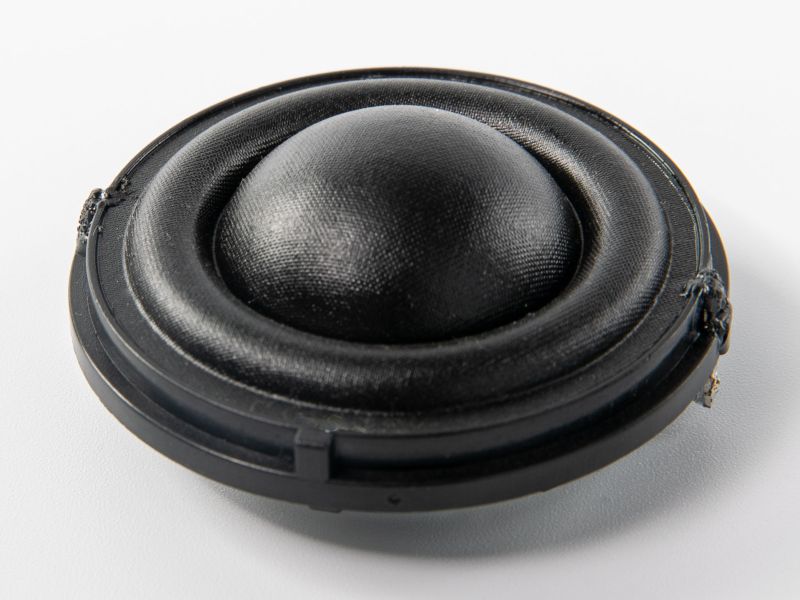

HF
Tweeter
1.3"
33TN
Code: 33TNX8-410B
Tweeter/1.3inch/Neo/Silk/10W/8ohm
Key Features
- smooth frequency response, working range from 1,200Hz ~ 25kHz
- high powerhandling
- very compact size, shallow depth
Quick Specs
Impedance
8 Ω
Program Power
20 W
Sensitivity
92.00 dB
Fs
1200.00 Hz
Magnet
Neodymium
Voice Coil
25.4 mm
Design Notes
33TN tweeter was developped for system applications where high SPL and high power handling is required. The tweeter is supplied as “bullet” in general terms, however based upon a request, our engineers can recommend or design waveguide for your application.
The tweeter sports large surround and unsually tall dome. This combination provides excellent low freqnecy behaviour and smooth frequency response.

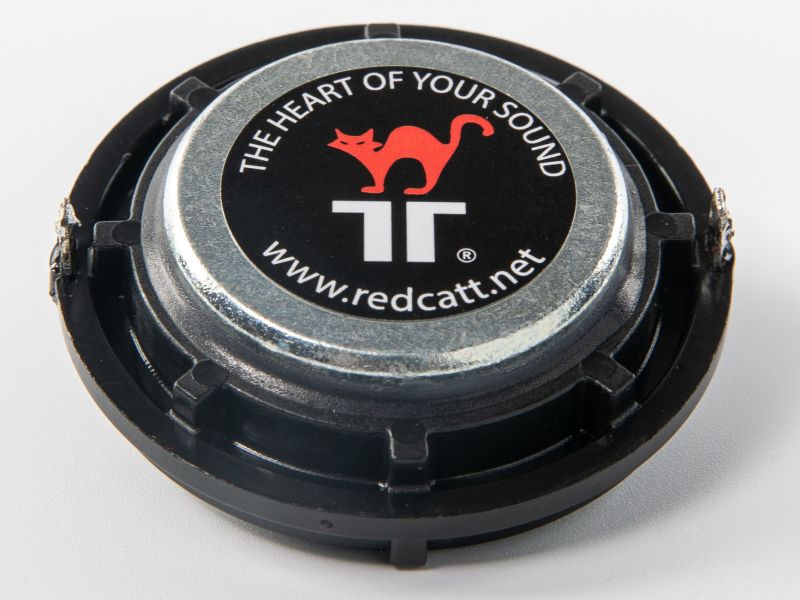

The magnetic structer utilizes high grade neodymium magnets and u-cup style steel. Overall the structe delivers very high performance with consistent BL field.
Connection is made with solder lugs. Based upon request, we can deliver this tweeter with soldered wire harness as per your specifications.
Intended applications are array systems, hi-SPL 2-way and multiway speaker systems and autmotive applications.
The tweeter sports large surround and unsually tall dome. This combination provides excellent low freqnecy behaviour and smooth frequency response.
The magnetic structer utilizes high grade neodymium magnets and u-cup style steel. Overall the structe delivers very high performance with consistent BL field.
Connection is made with solder lugs. Based upon request, we can deliver this tweeter with soldered wire harness as per your specifications.
Intended applications are array systems, hi-SPL 2-way and multiway speaker systems and autmotive applications.
Specifications
General Specs
Nominal Diameter
1.3"
Rated Impedance
8 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
10 W
Continuous Power
20 W
Peak Power
40 W
Voice Coil
Diameter
25.4 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
2.3 mm
T/S Parameters
Resonant Frequency (Fs)
1200.00 Hz
Re
5.50 \u2126
Sensitivity
92.00 dB
Design Details
Surround Material
Silk
Cone/Dome Material
Silk
T-Plate
2.5 mm
Overall Diameter
48.00 mm
Depth (flange to rear)
20.70 mm
Net Weight
0.07 kg
Ordering Codes
Product Code
33TNX8-410B
Downloads

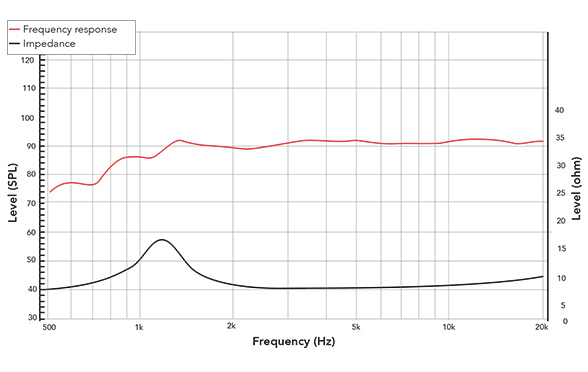

Frequency Response & Impedance

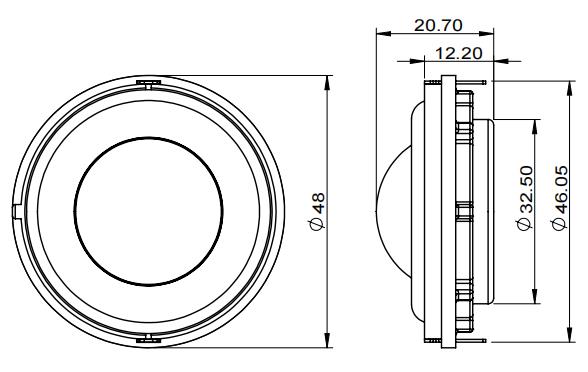

2D Drawing
Frequently Asked Questions
- - smooth frequency response, working range from 1,200Hz ~ 25kHz
- - high powerhandling
- - very compact size, shallow depth
AES Power: 10 W,
Continuous: 20 W,
Peak: 40 W.
Sensitivity: 92.00 dB (1W/1m).
