HF
Compression Driver
3"

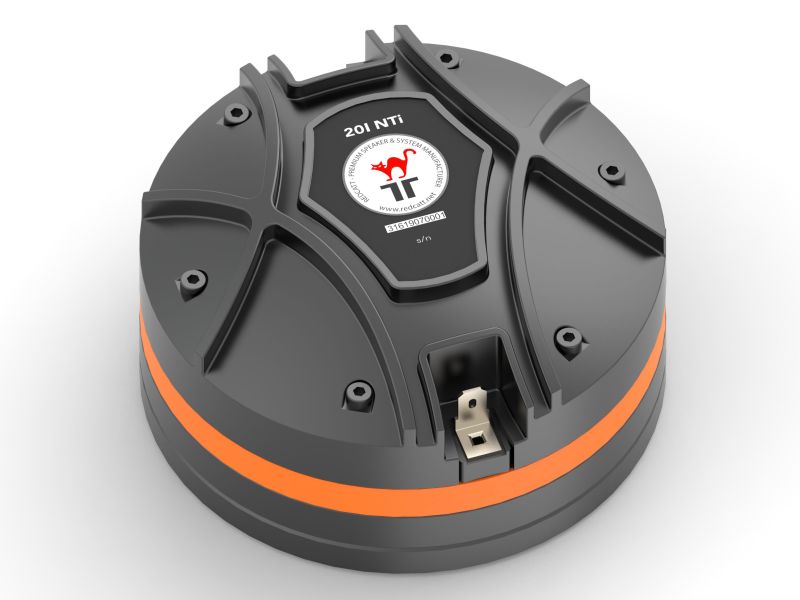

201NTi
Code: 201NTiX8-316
Compression Driver/3inch/Neo/Titanium/100W/76mmVC/8ohm
Key Features
- Very compact design
- Pure titanium dome with surround integrated resonance control features
- Portable products, 2-way and multi-way systems, line-array applications
Quick Specs
Impedance
8 Ω
Program Power
200 W
Sensitivity
109.00 dB
Fs
700.00 Hz
Magnet
Neodymium
Voice Coil
76 mm
Design Notes
The 201NTi compression driver is based on the design of our successful 200NTi. We have shared the same dome assembly between these two models, while we have packed the driver into a smaller form factor. Not any compromises have been made to the sound character. This driver is here to supports your needs in the applications where the space is limited. The driver’s Neodymium based magnetic circuit provides a robust, high force BL field, delivering precision control of the pure titanium diaphragm assembly, featuring 1.4inch exit throat.

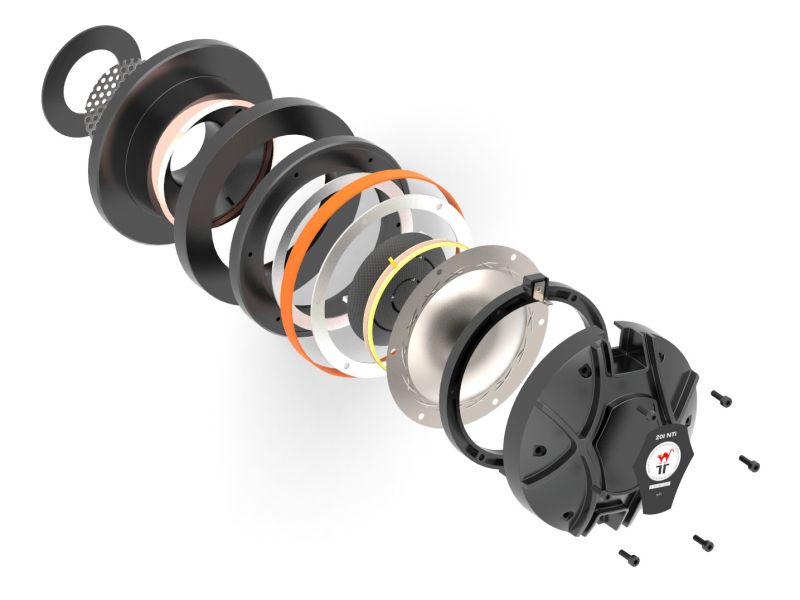

Dome Assembly Design
REDCATT has designed the dome and the surround of this compression driver as a single part. The voice coil former is attached to the dome as “L” sandwich. This solution greatly improves the transfer of all frequencies onto the dome, with a good transient response. It also dramatically improves the power handling capability of the driver.
Dome Assembly Design
REDCATT has designed the dome and the surround of this compression driver as a single part. The voice coil former is attached to the dome as “L” sandwich. This solution greatly improves the transfer of all frequencies onto the dome, with a good transient response. It also dramatically improves the power handling capability of the driver.
Specifications
General Specs
Nominal Diameter
3"
Rated Impedance
8 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
100 W
Continuous Power
200 W
Peak Power
400 W
Voice Coil
Diameter
76 mm
Winding Wire
CCAR
Former
kapton
Winding Height
2.9 mm
T/S Parameters
Resonant Frequency (Fs)
700.00 Hz
Re
5.90 \u2126
Sensitivity
109.00 dB
Design Details
Surround Material
Titanium
Cone/Dome Material
Titanium
T-Plate
3 mm
Overall Diameter
112.00 mm
Bolt Circle Diameter
102.00 mm
Mounting Holes
4
Depth (flange to rear)
62.10 mm
Net Weight
1.95 kg
Ordering Codes
Product Code
201NTiX8-316
Horn Exit
35mm
Downloads

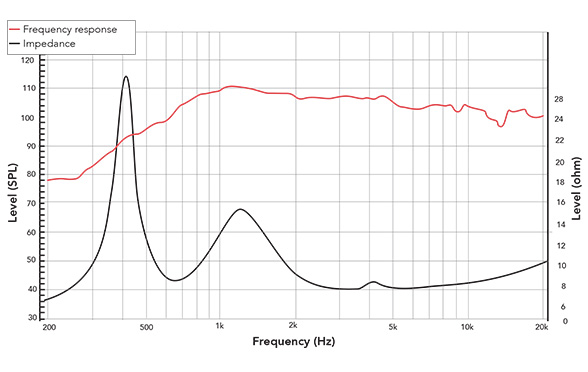

Frequency Response & Impedance

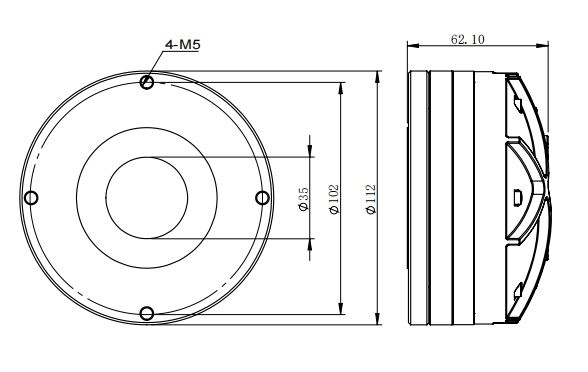

2D Drawing
Frequently Asked Questions
- - Very compact design
- - Pure titanium dome with surround integrated resonance control features
- - Portable products, 2-way and multi-way systems, line-array applications
AES Power: 100 W,
Continuous: 200 W,
Peak: 400 W.
Sensitivity: 109.00 dB (1W/1m).
