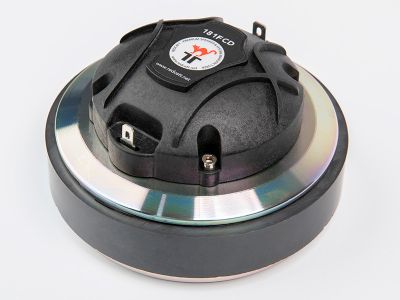

HF
Compression Driver
1.8"
181FCD
Code: 181FCDX8-227B
Compression Driver/1.8inch/Ferrite/Polymer/70W/44mmVC/8ohm
Quick Specs
Impedance
8 Ω
Program Power
140 W
Fs
1000.00 Hz
Magnet
Ferrite
Voice Coil
45.7 mm
Specifications
General Specs
Nominal Diameter
1.8"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Plastic
Power Handling
AES Power
70 W
Continuous Power
140 W
Peak Power
280 W
Voice Coil
Diameter
45.7 mm
Former
NSV
Winding Height
2.5 mm
T/S Parameters
Resonant Frequency (Fs)
1000.00 Hz
Re
5.20 \u2126
Design Details
Surround Material
N/A
Cone/Dome Material
PEN
T-Plate
6.5 mm
Overall Diameter
110.00 mm
Bolt Circle Diameter
57.00 mm
Mounting Holes
4
Depth (flange to rear)
62.83 mm
Net Weight
1.75 kg
Ordering Codes
Product Code
181FCDX8-227B
Horn Exit
26mm
Downloads

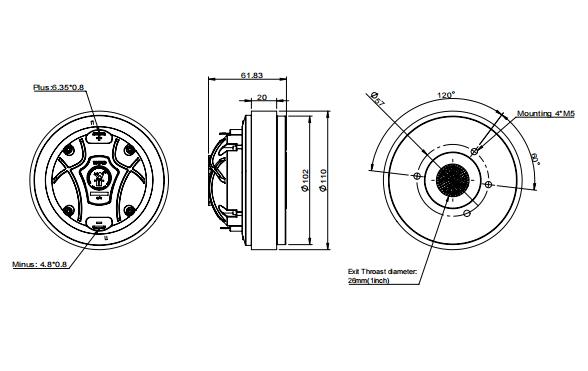

2D Drawing
