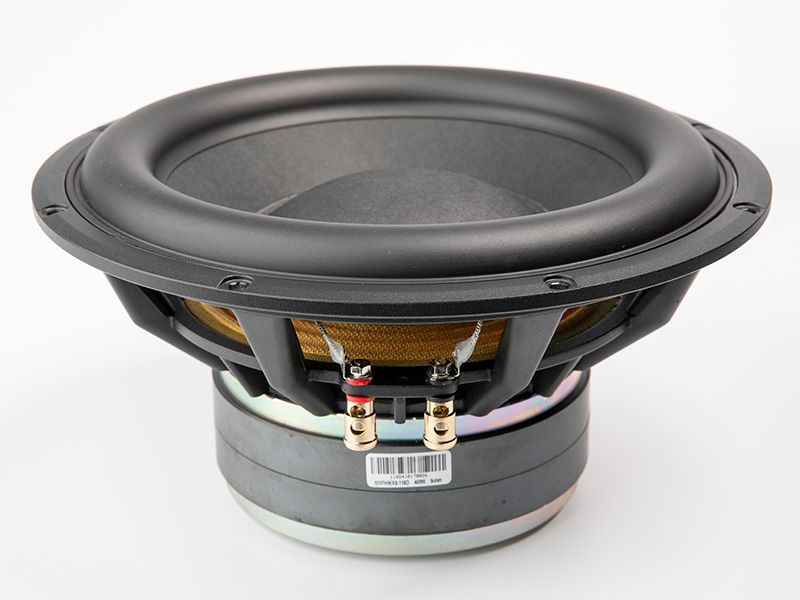

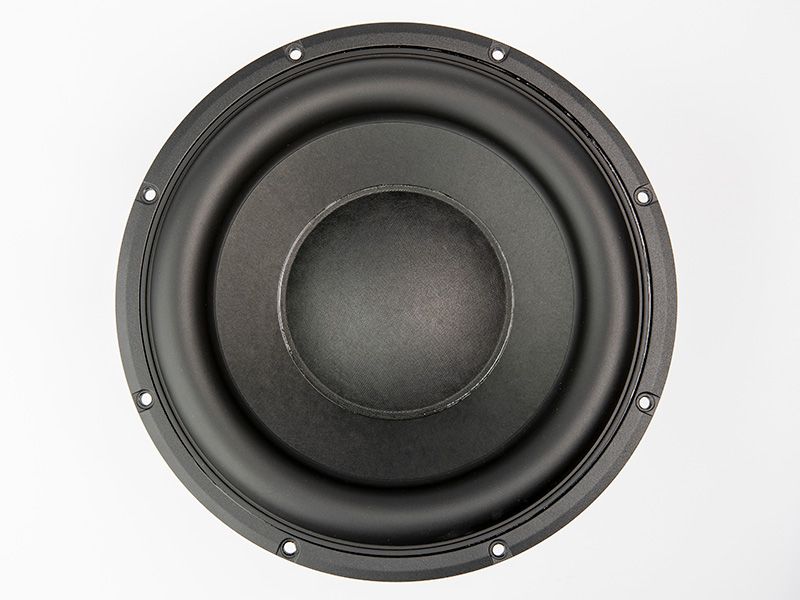

LF
Sub-woofer
10"
101FHW
Code: 101FHWX8-118D
Subwoofer/10inch/Ferrite/Paper/200W/8ohm
Key Features
- FIBER REINFORCED PAPER CONE
- TWO DEMODULATION RINGS
- OPTMIZED AIR VENTILATION
Quick Specs
Impedance
8 Ω
Program Power
400 W
Sensitivity
87.00 dB
Fs
25.00 Hz
Magnet
Ferrite
Voice Coil
50.8 mm
Design Notes
Introducing the 101FHW: the latest iteration of our award-winning 10FHW woofer model. This high-efficiency 10-inch subwoofer delivers an impressive 87dB sensitivity (1 watt / 1 meter), offering extended low-frequency response and robust power handling capabilities.
Crafted with a fiber-reinforced paper cone assembly and a single roll rubber surround, the 101FHW is built for durability and performance. Its Nomex spider, featuring stitched tinsel wires, ensures long-lasting reliability even in high-powered applications. Enhanced back plate space and additional venting have been integrated to optimize power handling and cooling, making this woofer truly exceptional.
The carefully selected materials provide remarkable strength, high efficiency, and sustained output under extreme conditions.
On the magnetic front, our REDCATT engineers have designed a cutting-edge ferrite-based magnetic circuit that sets a new standard for performance. This innovative design features a consistent, high-integrity magnetic flux gap, ultra-low distortion characteristics, and an efficient cooling system. With integrated aluminum shorting rings, the magnetic circuit minimizes flux modulation, ensuring exceptional stability and reliability.
Experience the power and precision of the 101FHW—where cutting-edge technology meets outstanding performance.
Crafted with a fiber-reinforced paper cone assembly and a single roll rubber surround, the 101FHW is built for durability and performance. Its Nomex spider, featuring stitched tinsel wires, ensures long-lasting reliability even in high-powered applications. Enhanced back plate space and additional venting have been integrated to optimize power handling and cooling, making this woofer truly exceptional.
The carefully selected materials provide remarkable strength, high efficiency, and sustained output under extreme conditions.
On the magnetic front, our REDCATT engineers have designed a cutting-edge ferrite-based magnetic circuit that sets a new standard for performance. This innovative design features a consistent, high-integrity magnetic flux gap, ultra-low distortion characteristics, and an efficient cooling system. With integrated aluminum shorting rings, the magnetic circuit minimizes flux modulation, ensuring exceptional stability and reliability.
Experience the power and precision of the 101FHW—where cutting-edge technology meets outstanding performance.
Specifications
General Specs
Nominal Diameter
10"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
200 W
Continuous Power
400 W
Peak Power
800 W
Voice Coil
Diameter
50.8 mm
Winding Wire
Copper
Former
Aluminum
Winding Height
32.3 mm
T/S Parameters
Resonant Frequency (Fs)
25.00 Hz
Re
5.80 \u2126
Qes
0.430
Qms
1.76
Qts
0.340
Vas
73.30 liters
Sd
363.00 cm\u00B2
Mms
100.20 grams
Rms
8.94
Cms
0.4000
Bl
14.60 T\u00B7m
Le
0.630 mH
Sensitivity
87.00 dB
Design Details
Surround Material
NBR
Cone/Dome Material
Paper GF
Spider
Nomex
T-Plate
8 mm
Xmax (peak)
12.15 mm
Xmech
20.15 mm
Overall Diameter
269.00 mm
Bolt Circle Diameter
257.00 mm
Baffle Cutout Dia.
238.00 mm
Mounting Holes
8
Depth (flange to rear)
123.00 mm
Net Weight
6.00 kg
Ordering Codes
Product Code
101FHWX8-118D
Downloads

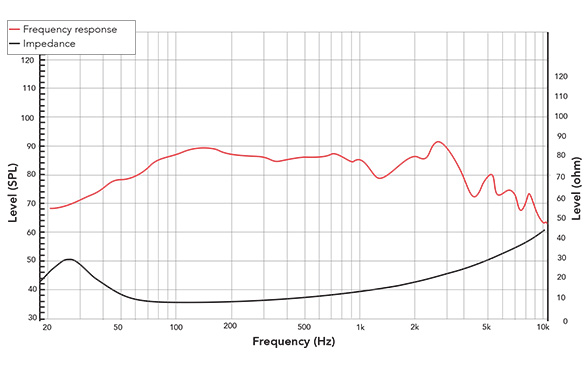

Frequency Response & Impedance

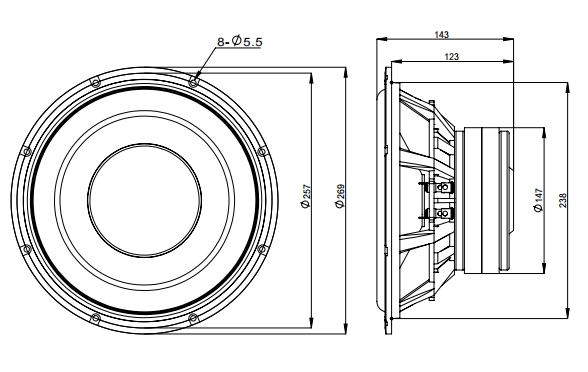

2D Drawing
Enclosure Recommendations
Recommended enclosure alignments (bass reflex): - 40 liters tuned to 29 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 27 Hz, HP filter 25 Hz - 50 liters tuned to 26 Hz: balanced response, general-purpose (recommended); -3 dB approx. 24 Hz, HP filter 22 Hz - 50 liters tuned to 24 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 20 Hz, HP filter 20 Hz
Frequently Asked Questions
- - FIBER REINFORCED PAPER CONE
- - TWO DEMODULATION RINGS
- - OPTMIZED AIR VENTILATION
Recommended enclosure alignments (bass reflex): - 40 liters tuned to 29 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 27 Hz, HP filter 25 Hz - 50 liters tuned to 26 Hz: balanced response, general-purpose (recommended); -3 dB approx. 24 Hz, HP filter 22 Hz - 50 liters tuned to 24 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 20 Hz, HP filter 20 Hz
Vented or sealed pa bass-mid; sub assist below 80 hz recommended
AES Power: 200 W,
Continuous: 400 W,
Peak: 800 W.
Sensitivity: 87.00 dB (1W/1m).
