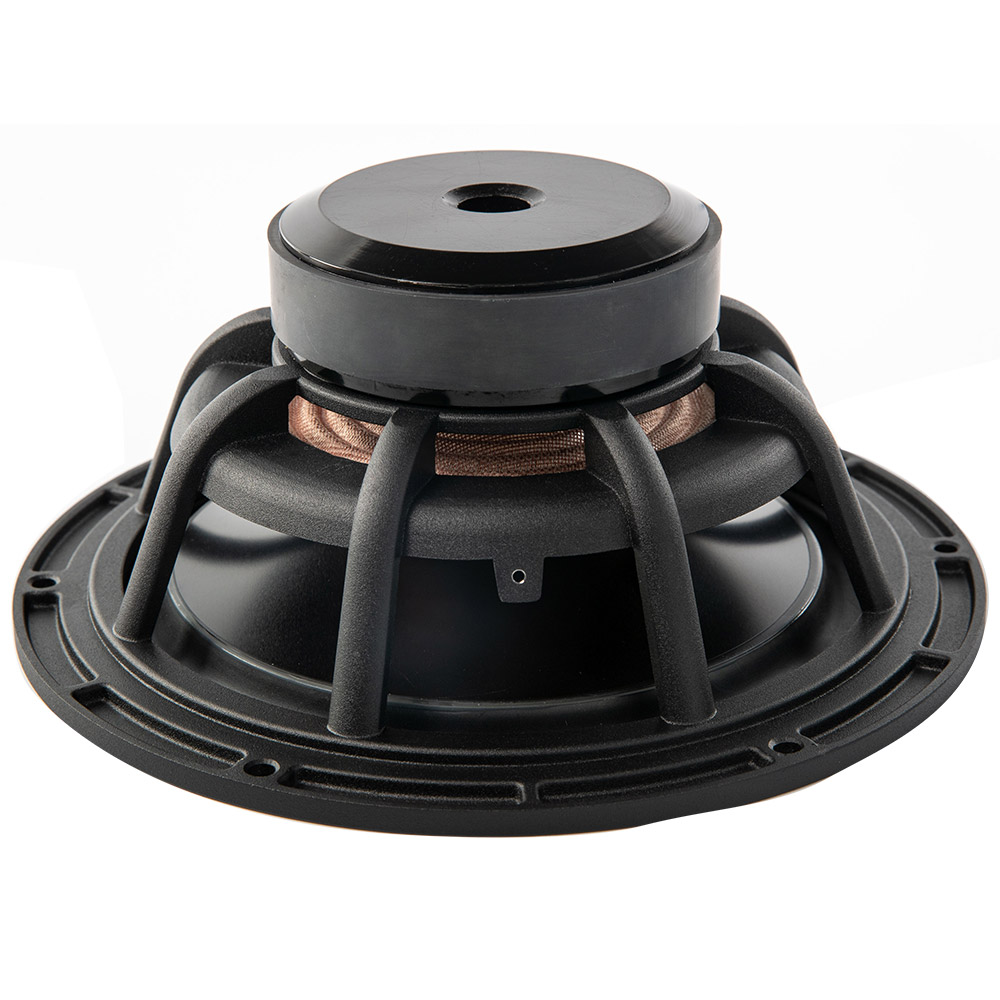

8" | 82FHM
Ferrite Mid-Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE

  • Hard anodized aluminum cone with rubber surround

  • Aluminum basket

Design notes:
    • 82FHM is mid-woofer driver, designed for hi-fi, studio monitors and outdoor applications. Design sports hard-anodized aluminum cone and dustcap. These two key components extend the working range of the woofer. The parameters were optimized for usage in sealed enclosures. All metal parts are coated to further
    • increase weatherized protection, surround has UV stabilizers. Strong aluminum basket was used in this design which further improves the mechanical fatigue and allow the speaker to be used in demanding portable products. Further more, we have developed new magnetic circuit for this model. Our clever engineering
    • takes the best balance between the performance and cost. Rest assure we have FEM optimized air-venting of this design that minimizes the air-noise and greatly improves voice coil winding venting.
Specifications:
    • General specs
      Nominal Diameter:8 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:60 Watts
      Program Power:120 Watts
      Voice Coil
      Diameter:1.5 in.
      Winding wire:Copper
      Former:Aluminum
      Winding height:15.9 mm
    • T/S Parameters
      Resonant frequency:42 Hz
      Re:5.7 ohm
      Qes:0.76
      Qms:3.1
      Qts:0.61
      Vas:33.6 liters
      Sd:213.8 cm2
      Mms:28.3 grams
      Bl:7.56
      Le:0.47 mH
      Sensitivity:88.31 dB
    • Design details
      Surround Material:Rubber
      Cone material:Aluminum
      Spider:Nomex
      Plate thickness:5 mm
      Peak to peak linear cone Displacement16.8 mm
      Overall diameter:223.5 mm
      Bolt circle diameter:210 mm
      Baffle cutout dia.:189 mm
      Number of mounting holes:6
      Depth (flange to rear):87.5 mm
      Net weight:1.8 kg
    • Ordering codes:
      8 ohm version:82FHMX8-445A
      Recone kits:
      Download:
      Spec download

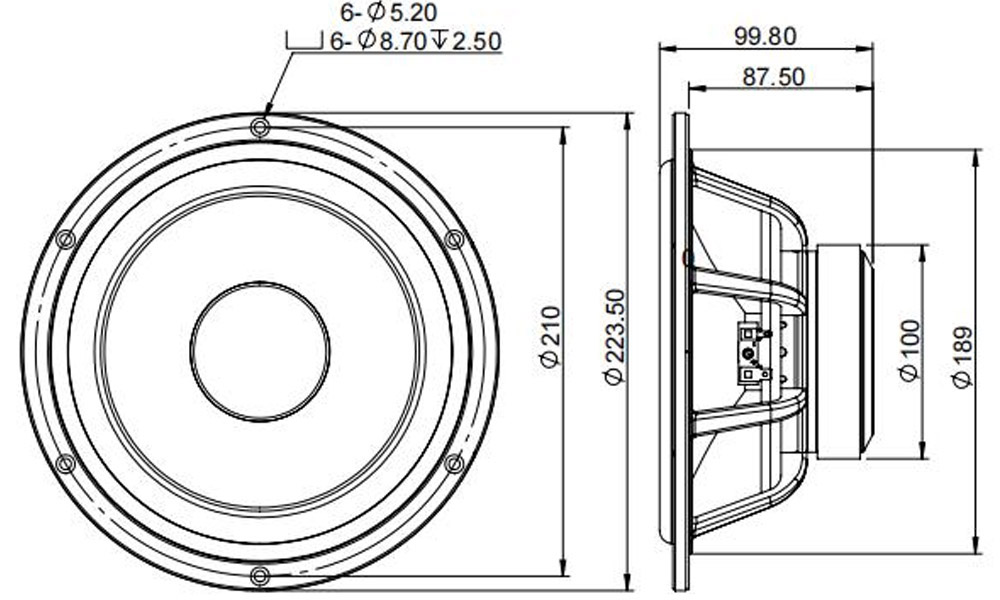

      2D drawing
      3D model

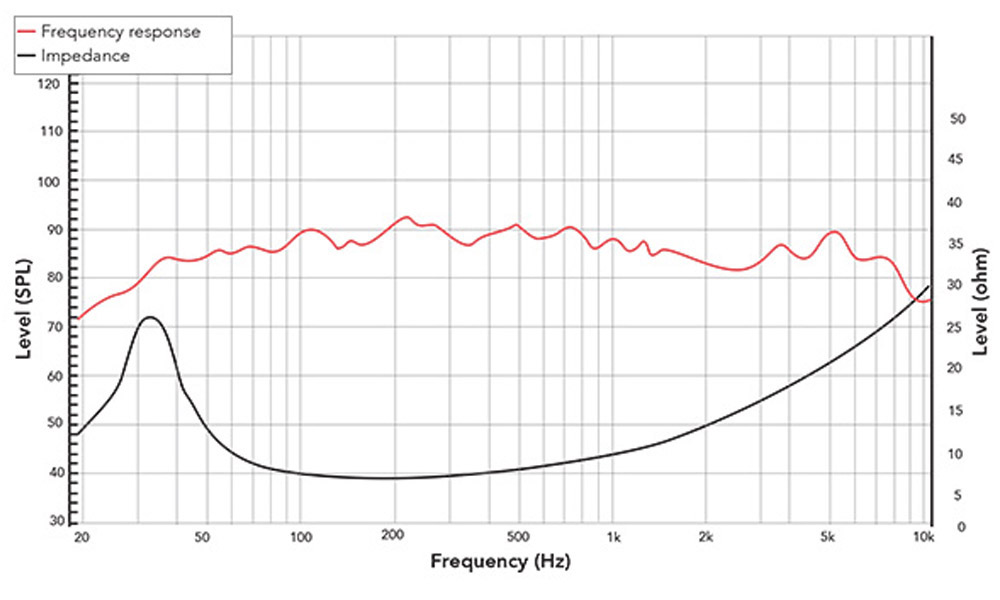

Frequency response & lmpedance
