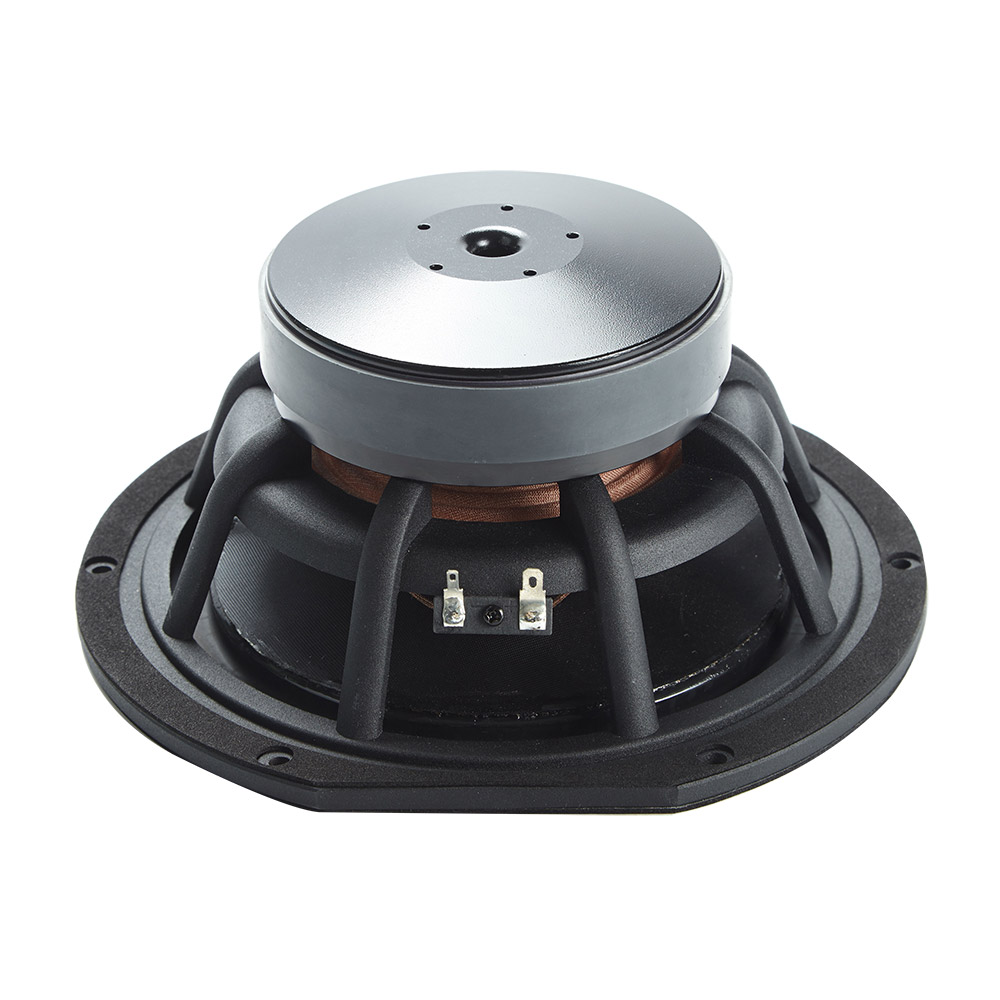

8" | 8FHM
Ferrite Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE

  • 1k carbon-fiber nomex core honeycomb cone

  • Ideal for high quality hi-fi applications, studio monitors

Design notes:
    • The 8FHM is a high efficiency, (89 dB 1watt / 1 meter) 8-inch mid-woofer with incredibly linear frequency response characteristics and ultra low harmonic distortion artifacts. The 8FHM uses a lightweight 1k carbon fiber material, assembled from both sides of Nomex honey-comb core. This unique cone provides the ideal weight to strength
    • ratio. The rubber surround has been FEM modeled and optimized. The honeycomb cone with high end 1k carbon fiber material provides remarkable strength, while pushing the cone break-up modes to high frequencies, significantly extending the working range of the speaker.The coneThe 8FHM cone is made using 1k
    • carbon fiber hone-comb, placed from both sides of Nomex core, while the dustcap is made off hard-anodization reinforced aluminum. The dustcap shape and the hard anodizing are further improving the high frequency behavior.
Specifications:
    • General specs
      Nominal Diameter:8 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:50 Watts
      Program Power:100 Watts
      Voice Coil
      Diameter:1.4 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:18 mm
    • T/S Parameters
      Resonant frequency:38 Hz
      Re:3.6 ohm
      Qes:0.41
      Qms:12.9
      Qts:0.39
      Vas:32.1 liters
      Sd:206.1 cm2
      Mms:31.5 grams
      Bl:8.19
      Le:0.46 mH
      Sensitivity:89.04 dB
    • Design details
      Surround Material:Rubber
      Cone material:CF Honeycomb
      Spider:Nomex
      Plate thickness:8 mm
      Peak to peak linear cone Displacement18.2 mm
      Overall diameter:223.5 mm
      Bolt circle diameter:210 mm
      Baffle cutout dia.:189 mm
      Number of mounting holes:6
      Depth (flange to rear):94.5 mm
      Net weight:2.8 kg
    • Ordering codes:
      4 ohm version:8FHMX4-091
      Recone kits:
      Download:
      Spec download

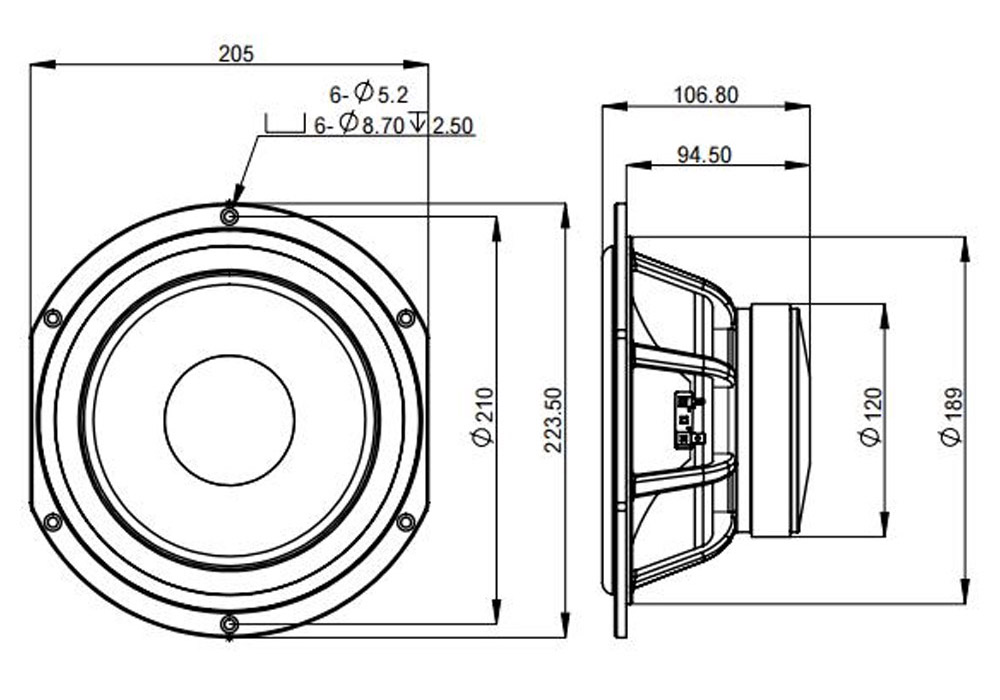

      2D drawing
      3D model

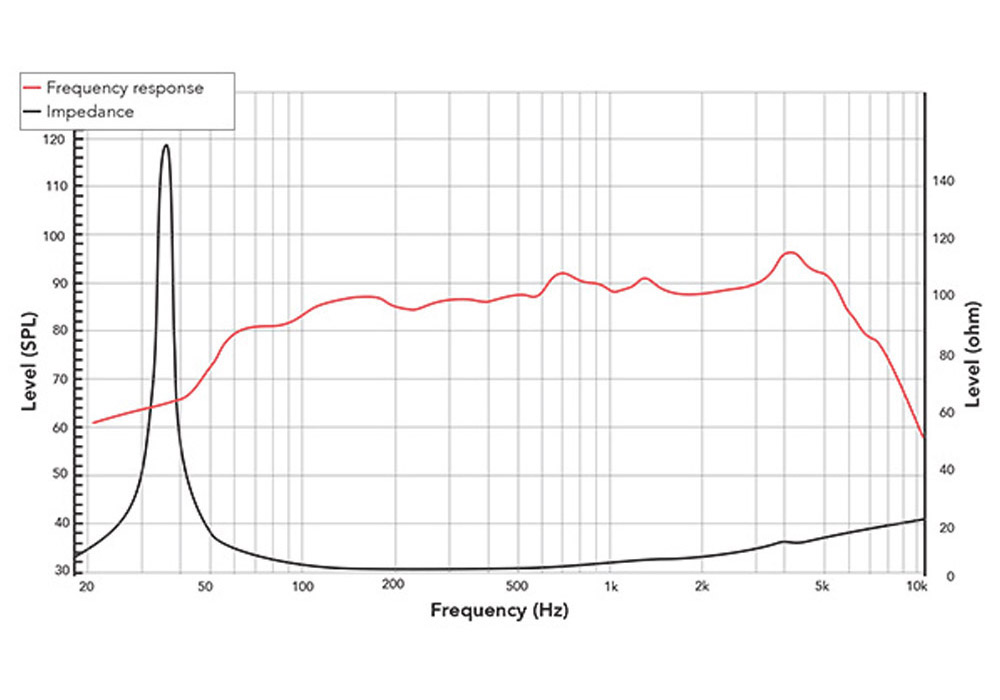

Frequency response & lmpedance
