6" | 6FHM

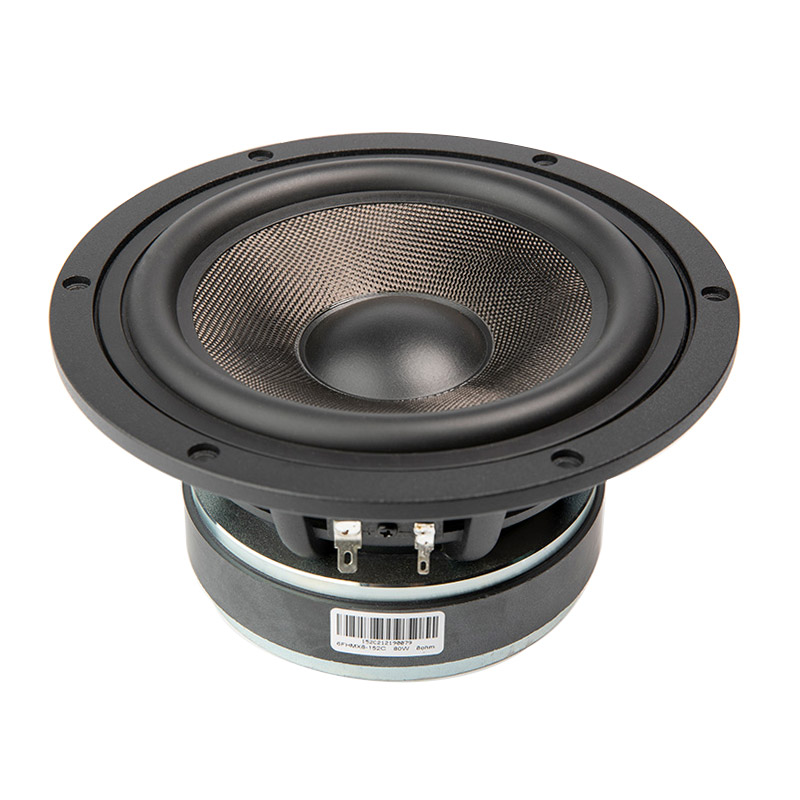

Ferrite Mid-Woofer
Key features:
  • 3 layer cone, consisting hi-end 1k carbon fiber on nomex honeycomb core

  • Fem optimized motor structure

  • Low harmonic distortion

Design notes:
    • The 6FHM is a high efficiency, (89 dB 1watt / 1 meter) 6-inch mid-woofer with incredibly linear frequency response characteristics and ultra low harmonic distortion artifacts. The 6FHM uses a lightweight 1k carbon fiber material, assembled on both sides of Nomex honey-comb core. This unique cone provides the ideal weight to strength
    • ratio. The rubber surround has been FEM modeled and optimized. The honeycomb cone with high-end 1k carbon fiber material provides remarkable strength, while pushing the cone break-up modes to high frequencies, significantly extending the working range of the speaker.The coneThe 6FHM cone is made using 1k
    • carbon fiber honey-comb, placed from both sides of Nomex core, while the dustcap is made off hard-anodization reinforced aluminum. The dustcap shape and the hard anodizing are further improving the mid to high frequency behavior.
Specifications:
    • General specs
      Nominal Diameter:6 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:40 Watts
      Program Power:80 Watts
      Voice Coil
      Diameter:1.3 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:14.5 mm
    • T/S Parameters
      Resonant frequency:36 Hz
      Re:6.9 ohm
      Qes:0.29
      Qms:12.7
      Qts:0.29
      Vas:26.1 liters
      Sd:132.7 cm2
      Mms:18.1 grams
      Bl:9.89
      Le:0.26 mH
      Sensitivity:89.01 dB
    • Design details
      Surround Material:Rubber
      Cone material:CF Honeycomb
      Spider:Nomex
      Plate thickness:6 mm
      Peak to peak linear cone Displacement8.8 mm
      Overall diameter:181.5 mm
      Bolt circle diameter:169.5 mm
      Baffle cutout dia.:151 mm
      Number of mounting holes:6
      Depth (flange to rear):81.7 mm
      Net weight:2.4 kg
    • Ordering codes:
      8ohm version:6FHMX8-152C
      Recone kits:
      Download:
      Spec download

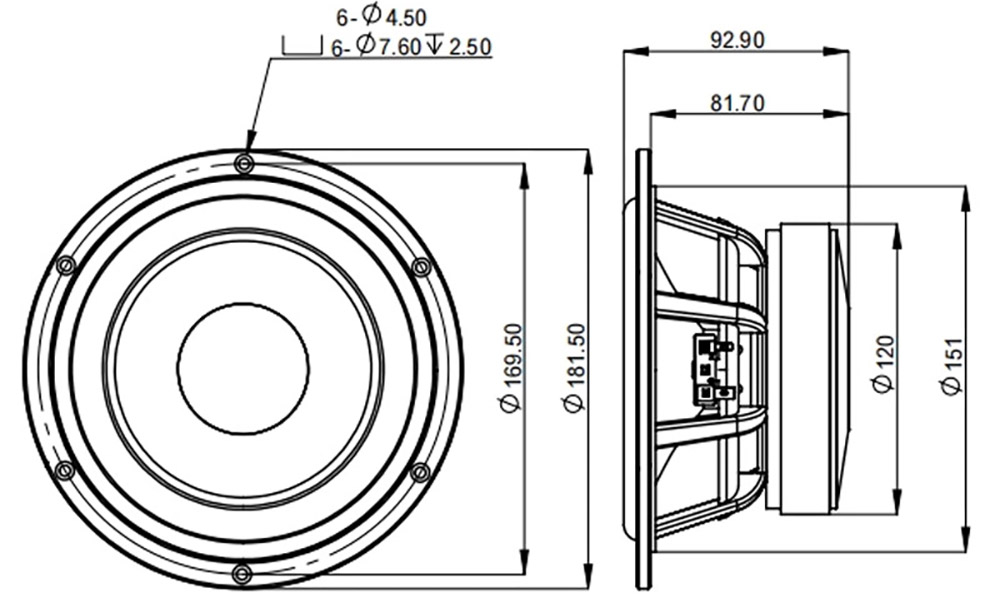

      2D drawing
      3D model

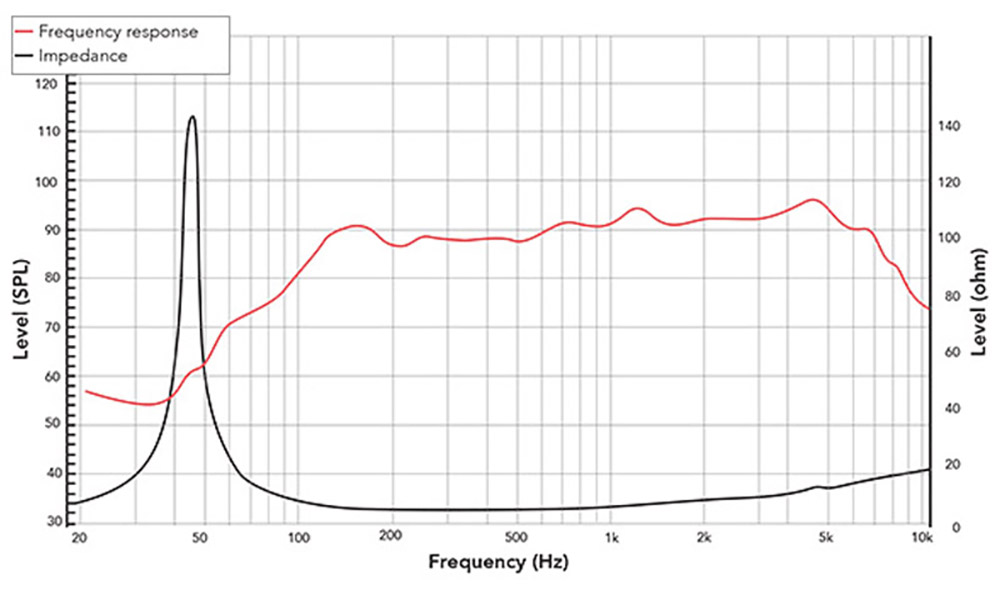

Frequency response & lmpedance
2D drawing
redcatt
Redcatt

REDCATT IS THE PARTNER OF CHOICE
REDCATT designs and manufactures world class loudspeakers. Additionally to the loudspeakers sold under REDCATT brand name, we also design and manufacture OEM / ODM loudspeakers.
