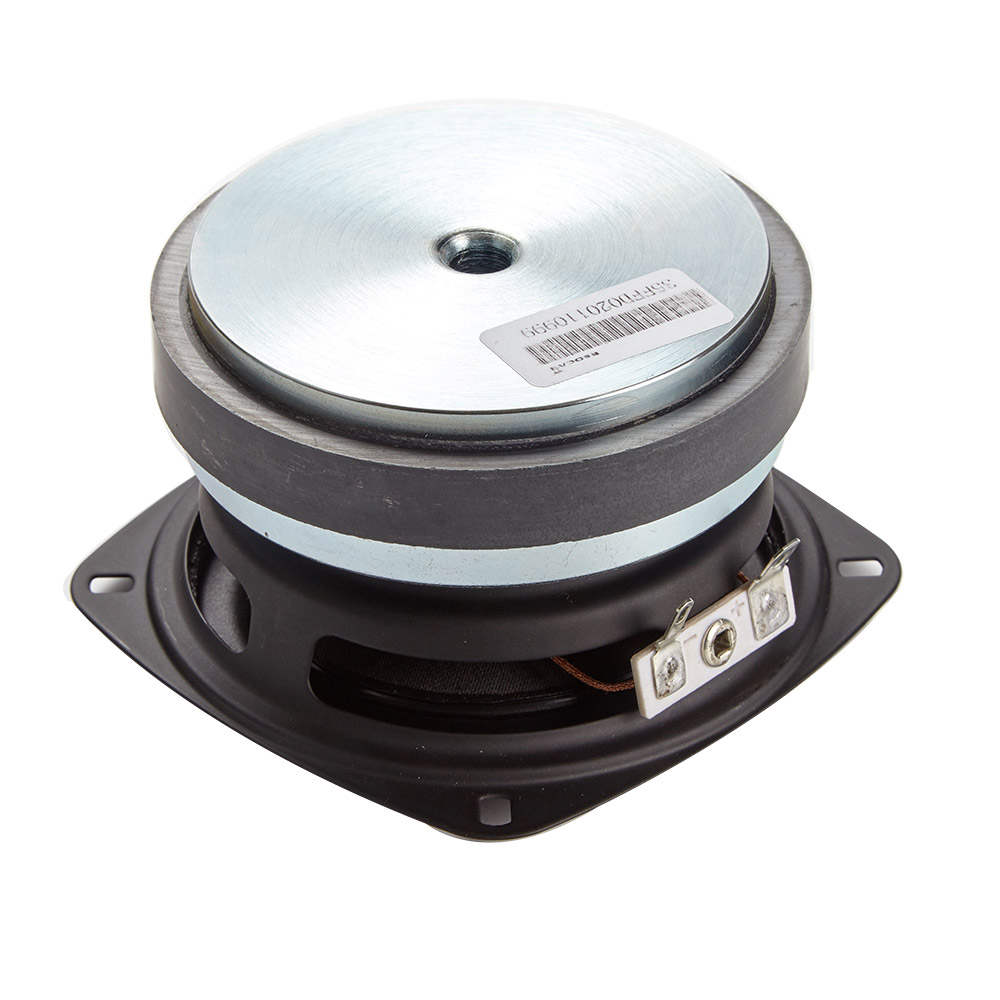

3.5" | 35FR
Ferrite Full-Range
Key features:
  • Mighty driver delivering the highest performance

  • Very good LF extension, large peak to peak cone displacement

Design notes:
    • 35FR was developed as full-range ferrite magnet driver. It has an excellent HF extension and provides extended level of LF performance. The driver was designed for usage in sealed speaker systems. It could be in column
    • speakers, 2-way or 1-way speakers. It is also possible design a speaker system with a passive radiator to further extend the low frequency range. Voice coil is wound with copper hi temperature wire directly on the aluminum former,
    • ensuring good power handling and high temperature stability. This driver brings good balance between performance and cost. Depending on intended usage, we can deliver the driver either as 4 or 8 ohm version.
Specifications:
    • General specs
      Nominal Diameter:3.5 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:25 Watts
      Program Power:50 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:Copper
      Former:Aluminum
      Winding height:6.9 mm
    • T/S Parameters
      Resonant frequency:67 Hz
      Re:3.5 ohm
      Qes:0.37
      Qms:4.35
      Qts:0.34
      Vas:1.6 liters
      Sd:38.5 cm2
      Mms:7.5 grams
      Bl:5.46
      Le:0.14 mH
      Sensitivity:83.7 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:8 mm
      Peak to peak linear cone Displacement12.2 mm
      Overall diameter:93 mm
      Bolt circle diameter:101 mm
      Baffle cutout dia.:85 mm
      Number of mounting holes:4
      Depth (flange to rear):51 mm
      Net weight:0.85 kg
    •
      Ordering codes:
      4 ohm version:35FRX4 ohm-155

      Recone kits:
      Download:
      Spec download

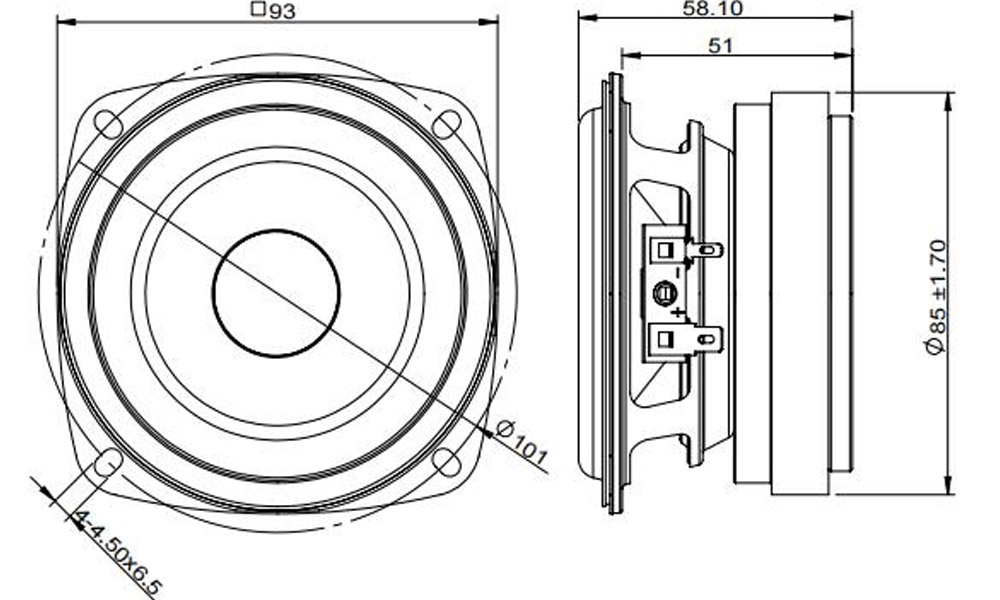

      2D drawing
      3D model

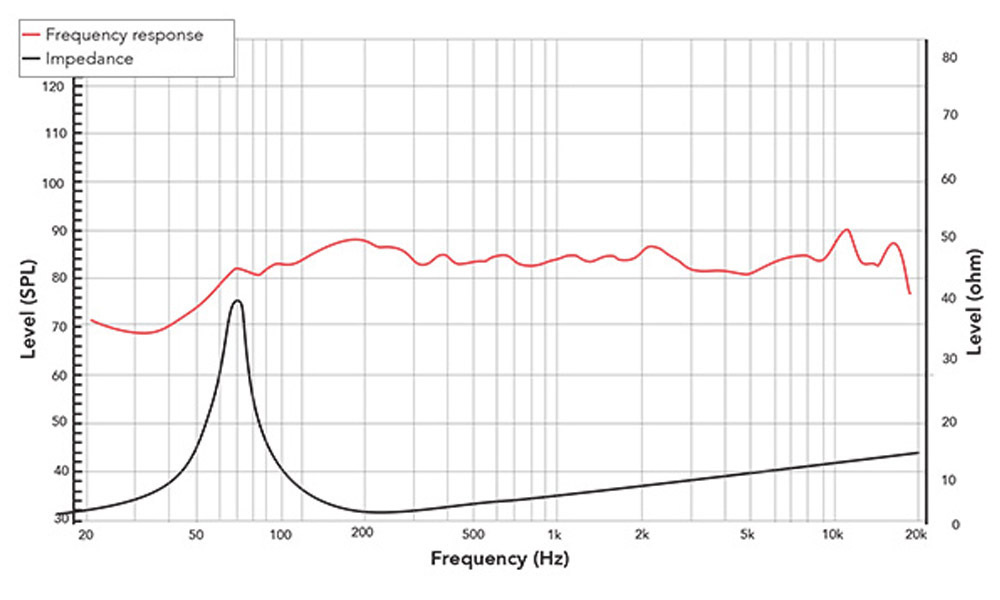

Frequency response & lmpedance
2D drawing
