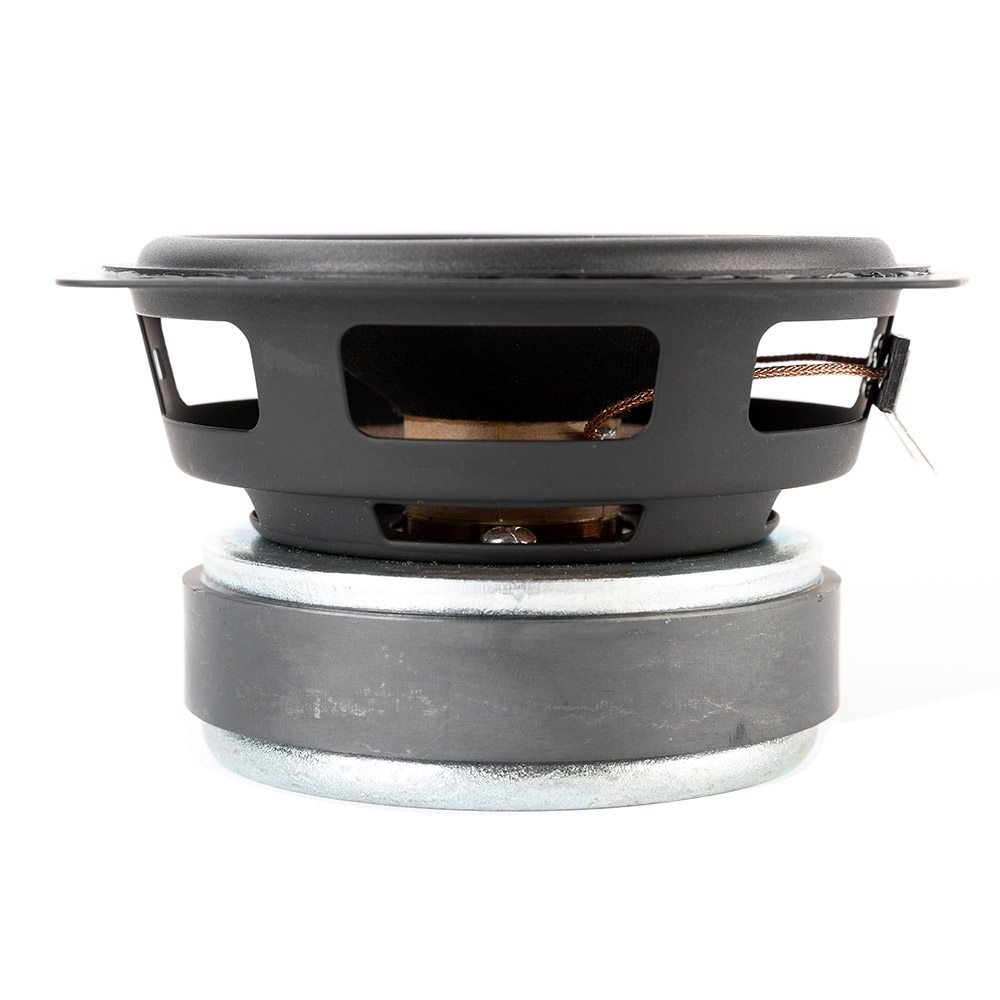

4" | 4FR
Ferrite Full-Range
Key features:
- Optimized full-range performance
- Good low frequency behavior
- Affordable design
Design notes:
- 4FR ferrite based mid-woofer was developed for applications where small size mid-woofer is required. Low resonant frequency and large cone excursion delivers seizable amounts of low frequencies. Yet, this driver delivers very good
- performance in mid-high frequency range. Our engineers have chosen lightweight, yet strong, paper cone with rubber surround. Cone optimized shape brings remarkable strength of the piston and greatly improves harmonic distortion
- artifacts. Overall this model delivers very good performance and is well balanced between performance - cost.
Specifications:
General specs Nominal Diameter: 4 in. Rated Impedance: 4 Ohm Power handling AES Power: 30 Watts Program Power: 60 Watts Voice Coil Diameter: 1 in. Winding wire: Copper Former: Aluminum Winding height: 10.6 mm T/S Parameters Resonant frequency: 79 Hz Re: 3.5 ohm Qes: 0.61 Qms: 3.47 Qts: 0.52 Vas: 1.8 liters Sd: 50.3 cm2 Mms: 7.9 grams Bl: 4.8 Le: 0.09 mH Sensitivity: 84.14 dB Design details Surround Material: Rubber Cone material: Paper Spider: Nomex Plate thickness: 5 mm Peak to peak linear cone Displacement 6.6 mm Overall diameter: 105.5 mm Bolt circle diameter: 106 mm Baffle cutout dia.: 93.6 mm Number of mounting holes: 4 Depth (flange to rear): 56 mm Net weight: 0.77 kg Ordering codes: 4 ohm version: 4FRX4-322 Recone kits: Download: Spec download 2D drawing 3D model

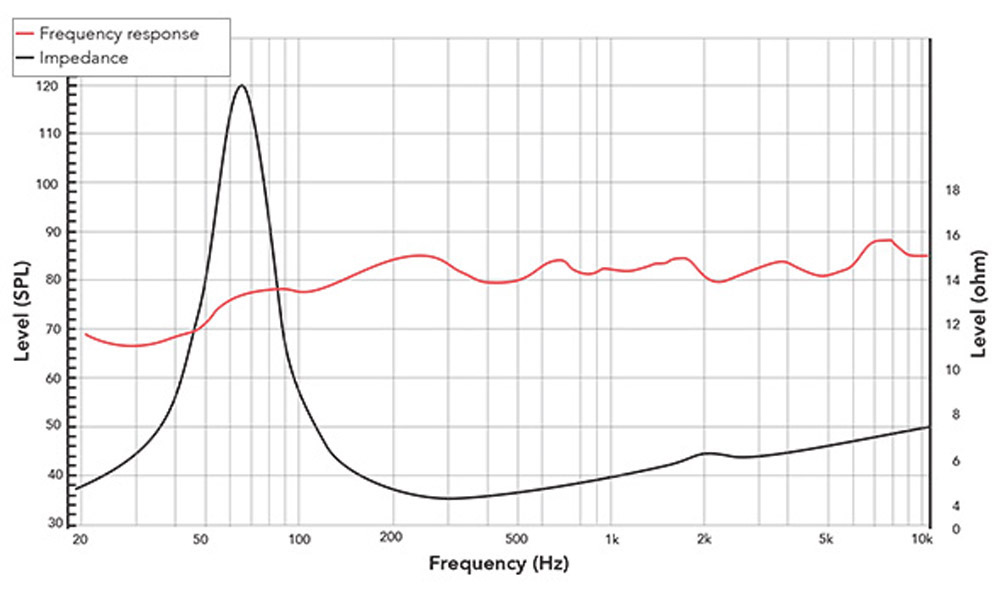

Frequency response & lmpedance

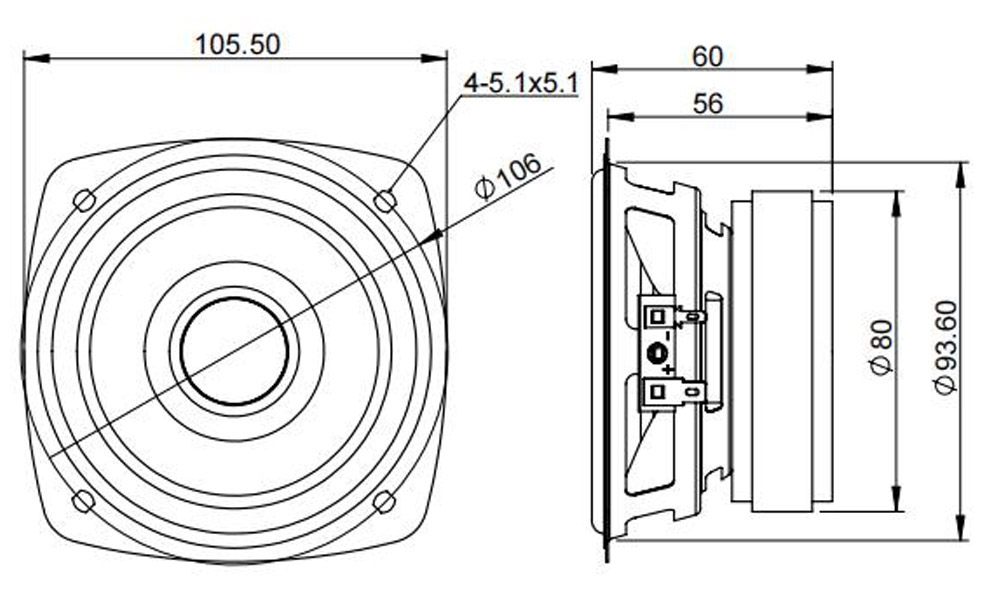

2D drawing
