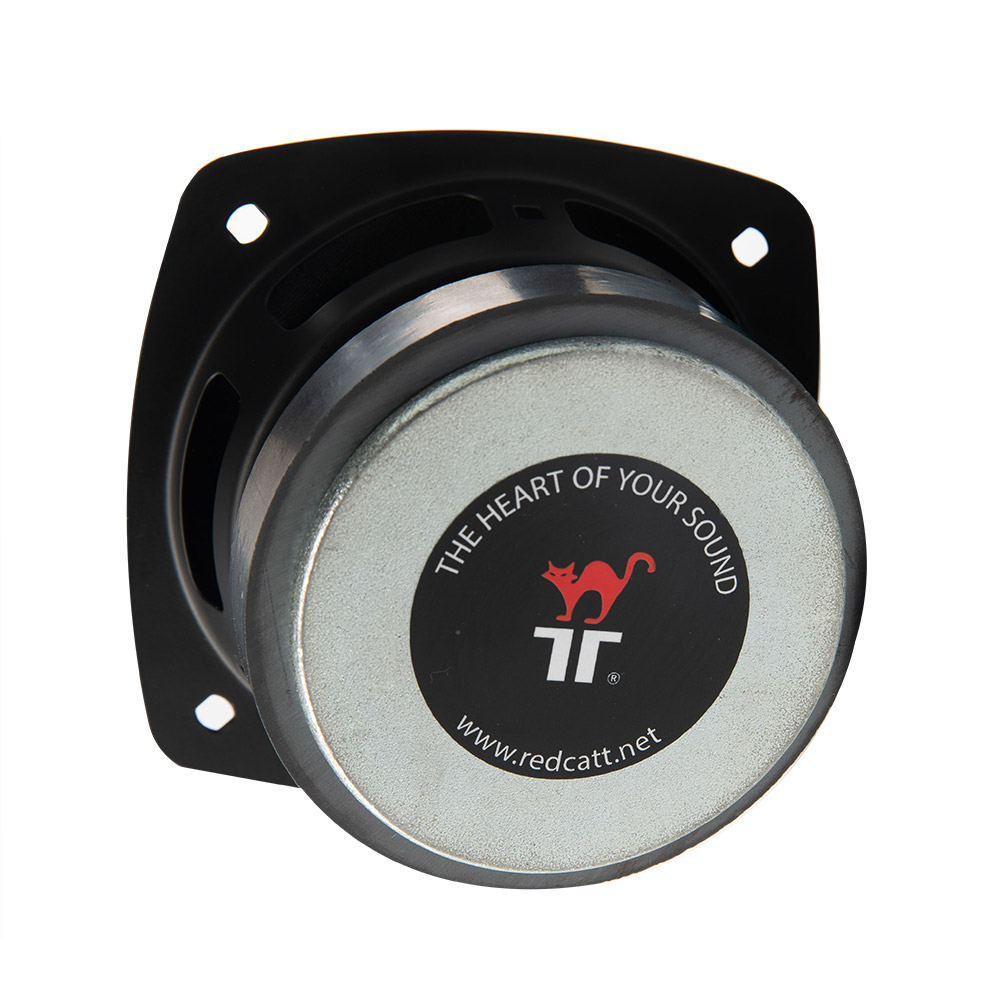

4" | 41FR
Ferrite Full-Range
Key features:
- Very good performance at affordable price
- Excellent HF extension
- Array applications, 2-way systems, can be used without HF unit
Design notes:
- 41FR is ferrite based mid-woofer, developed for applications where small size mid-woofer is required. This version was developed with extended HF response and in some cases could be used as full-range driver.
- Yet, this driver delivers very good performance low frequency range as well. Our engineers have chosen lightweight, yet strong, paper cone with rubber surround. Cone optimized shape brings remarkable strength of
- the piston and greatly improves harmonic distortion artifacts. Overall this model delivers very good performance and is well balanced between performance - cost.
Specifications:
General specs Nominal Diameter: 4 in. Rated Impedance: 8 Ohm Power handling AES Power: 20 Watts Program Power: 40 Watts Voice Coil Diameter: 1 in. Winding wire: CCAW Former: kapton Winding height: 7.2 mm T/S Parameters Resonant frequency: 134 Hz Re: 5.6 ohm Qes: 0.81 Qms: 10.6 Qts: 0.75 Vas: 1.3 liters Sd: 50.3 cm2 Mms: 3.8 grams Bl: 4.78 Le: 0.09 mH Sensitivity: 89.44 dB Design details Surround Material: Fabric Cone material: Paper Spider: Nomex Plate thickness: 5 mm Peak to peak linear cone Displacement 7 mm Overall diameter: 105.5 mm Bolt circle diameter: 106 mm Baffle cutout dia.: 93.6 mm Number of mounting holes: 4 Depth (flange to rear): 55.9 mm Net weight: 0.78 kg Ordering codes: 8 ohm version: 41FRX8-360B Recone kits: Download: Spec download 2D drawing 3D model

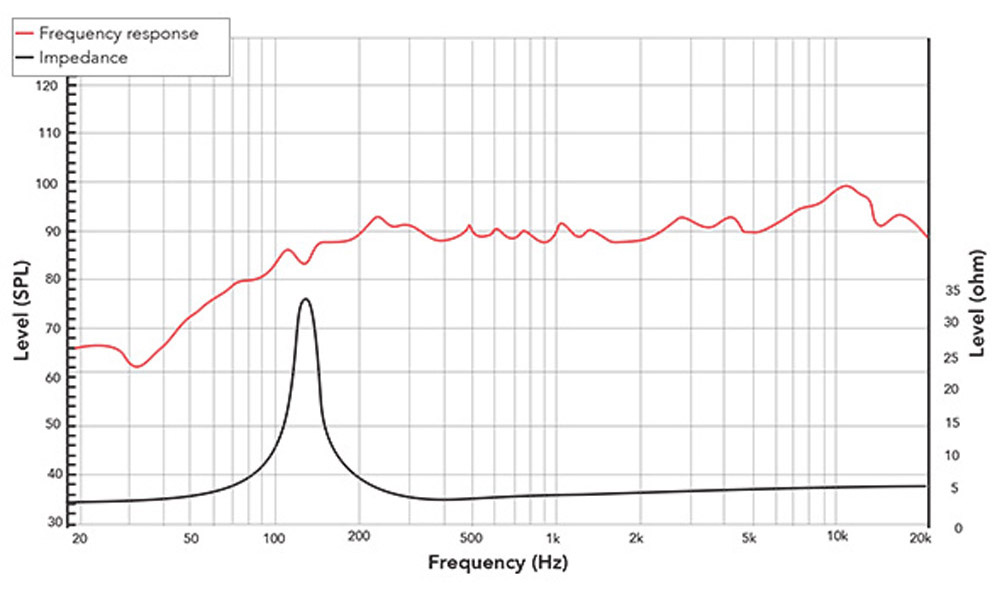

Frequency response & lmpedance

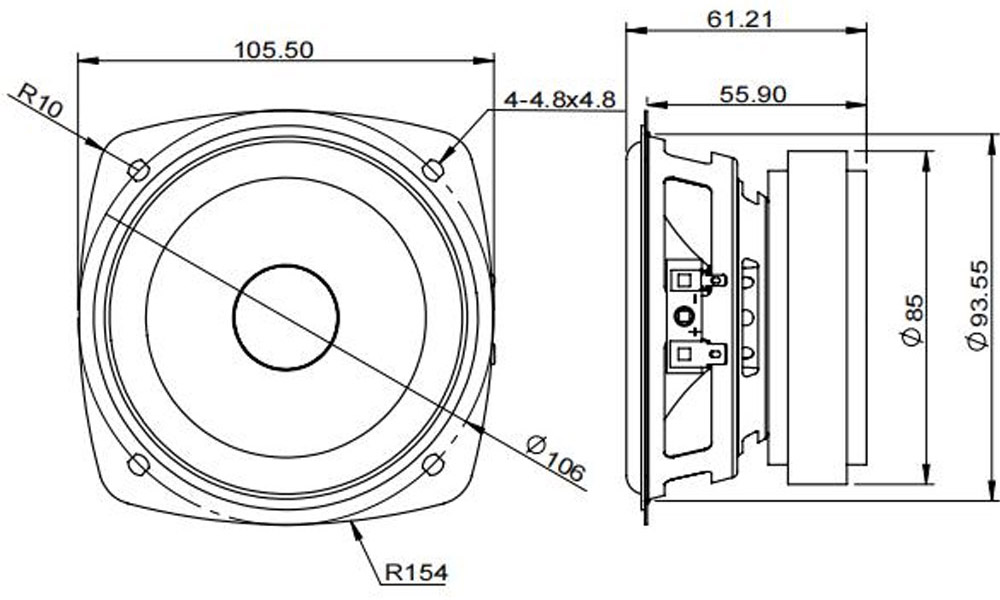

2D drawing
