- Remarkably slim 10.15mm mounting depth
- 3.8mm cone excursion
- Power handling capacity of 20 watts
- Introducing the 35Twiggy mid-woofer, designed for ultra-thin applications. With its remarkably slim 10.15mm mounting depth and maximum 3.8mm cone excursion, this driver delivers exceptional performance. The 3-layer
- honeycomb cone ensures optimal functionality across all ranges. Boasting a power handling capacity of 20 watts, the 35Twiggy is a standout in our Twiggy product line. Designed with our patented technology,
- Twiggy drivers offer unparalleled design flexibility for unique product shapes and space-constrained environments. Experience world-class audio innovation with the 35Twiggy.

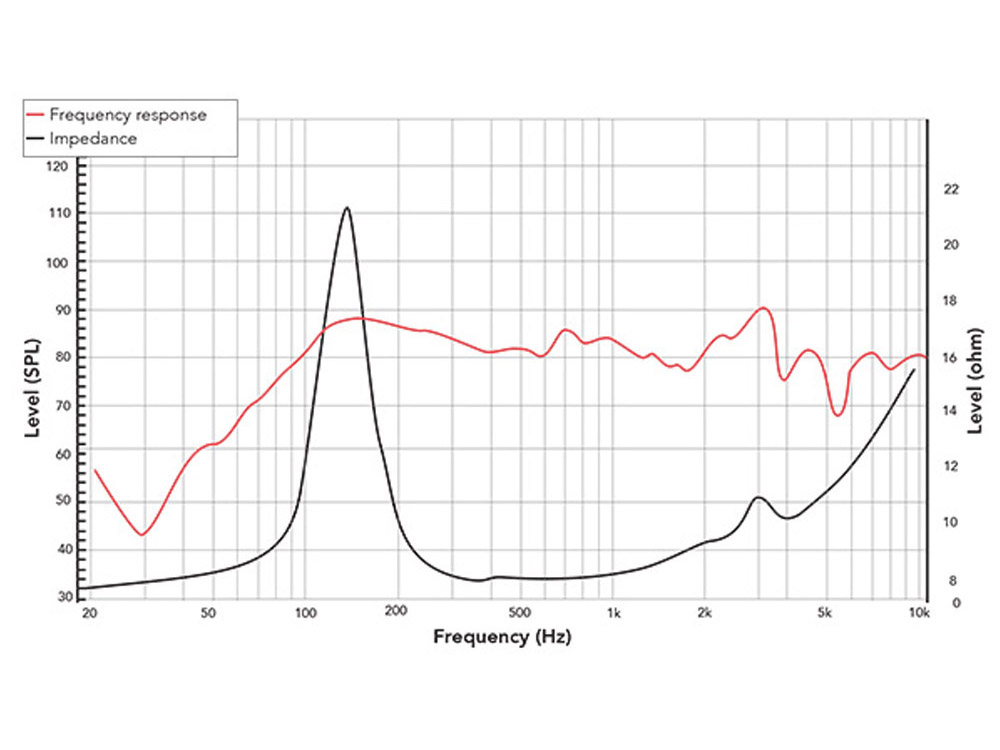

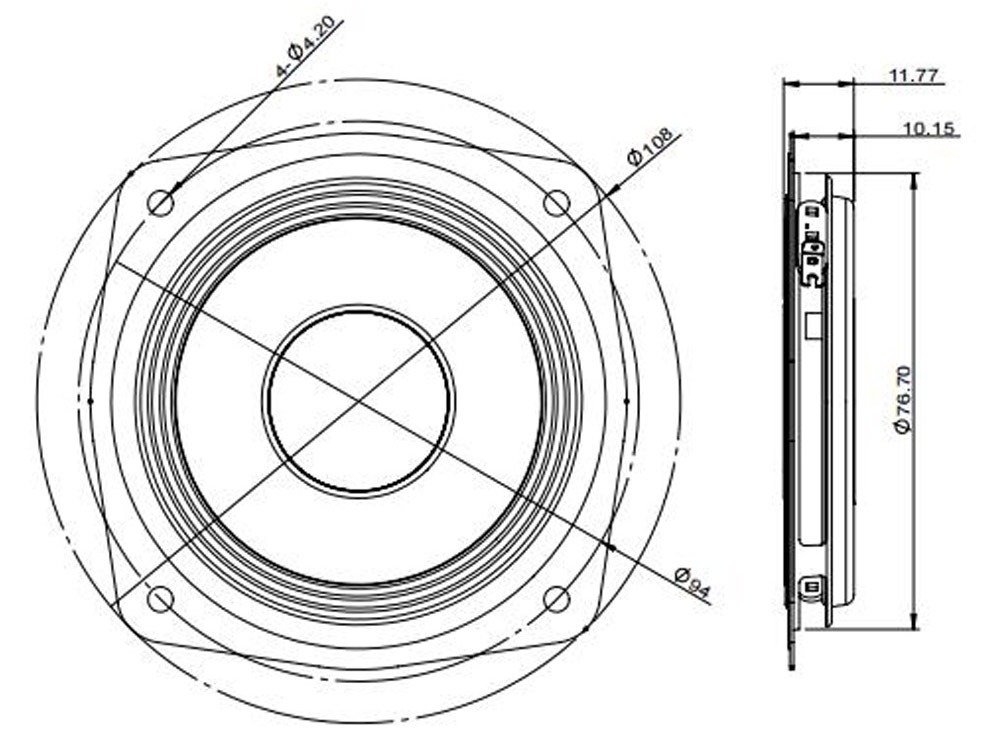

General specs Nominal Diameter: 3.5 in. Rated Impedance: 8 Ohm Power handling AES Power: 10 Watts Program Power: 20 Watts Voice Coil Diameter: 1.3 in. Winding wire: CCAW Former: Aluminum Winding height: 3 mm T/S Parameters Resonant frequency: 145 Hz Re: 7.3 ohm Qes: 1.75 Qms: 4.38 Qts: 1.25 Vas: 0.6 liters Sd: 36.32 cm2 Mms: 3.7 grams Bl: 3.7 Le: 0.19 mH Sensitivity: 83 dB Design details Surround Material: Rubber Cone material: Paper Honeycomb Spider: Nomex Plate thickness: 2.5 mm Peak to peak linear cone Displacement 3.8 mm Overall diameter: 90*90 mm Bolt circle diameter: 94 mm Baffle cutout dia.: 77 mm Number of mounting holes: 4 Depth (flange to rear): 10.15 mm Net weight: 0.1 kg Ordering codes: 8 ohm version: Twiggy35-X8 ohm-535D Recone kits: Download: Spec download 2D drawing 3D model
======================================================================
PRODUCT CODE: Twiggy12X4-470A
======================================================================
--- ENCLOSURE RECOMMENDATIONS ---
======================================================================BE18
ENCLOSURE RECOMMENDATIONS: Twiggy12X4-470A
======================================================================
Driver: Twiggy12X4-470A (Twiggy12) — 12" Sub-woofer
Key T/S: Fs=30.0Hz, Qts=1.08, Vas=59.8L, Sens=84.2dB
Power: AES 200W / Cont 400W / Peak 800W
Xmax=9.25mm, Sd=506.7cm², Bl=9.9T·m
BH17 for hi-fi subwoofer systems, home theater, in-wall and under-seat installations, and similar domestic or automotive applications. It operates at 84.2 dB sensitivity (1W/1m). The driver features a compliant suspension design suited to moderate-volume enclosures with extended low-frequency response.
In a sealed enclosure, the driver is best suited to a net internal volume of approximately 20 liters, yielding an estimated –3 dB point of 60 Hz. The sealed alignment provides smooth, well-damped response with a predictable second-order roll-off below resonance, well suited to active crossover integration and DSP-controlled bass management.
The driver is intended for use with moderate amplification (approx. 200 W AES / 400 W continuous) and DSP control. A high-pass filter set at approximately 50 Hz is recommended to protect the driver below its usable range. Typical operating bandwidth is 60–100 Hz, making it suitable for integration with a mid-bass or full-range system.
This design is particularly effective in sealed enclosure systems used in hi-fi subwoofer systems, home theater, in-wall installations, automotive, and under-seat applications, where low-frequency extension and compact form factor are prioritized over high acoustic efficiency.
──────────────────────────────────────────────────────────────────────
======================================================================
--- ENCLOSURE RECOMMENDATIONS ---
======================================================================
ENCLOSURE RECOMMENDATIONS: Twiggy12X4-470A
======================================================================
Driver: Twiggy12X4-470A (Twiggy12) — 12" Sub-woofer
Key T/S: Fs=30.0Hz, Qts=1.08, Vas=59.8L, Sens=84.2dB
Power: AES 200W / Cont 400W / Peak 800W
Xmax=9.25mm, Sd=506.7cm², Bl=9.9T·m
RECOMMENDED ENCLOSURE TYPE: Sealed
Sealed Alignment (Qtc = 0.707)
Net Volume: 20 liters
Est. -3dB: 60 Hz
Notes: Sealed enclosure with Butterworth (Qtc=0.707) alignment
--- Summary ---
The Twiggy12X4-470A is a 12-inch sub-woofer driver designed for hi-fi subwoofer systems, home theater, in-wall and under-seat installations, and similar domestic or automotive applications. It operates at 84.2 dB sensitivity (1W/1m). The driver features a compliant suspension design suited to moderate-volume enclosures with extended low-frequency response.
In a sealed enclosure, the driver is best suited to a net internal volume of approximately 20 liters, yielding an estimated –3 dB point of 60 Hz. The sealed alignment provides smooth, well-damped response with a predictable second-order roll-off below resonance, well suited to active crossover integration and DSP-controlled bass management.
The driver is intended for use with moderate amplification (approx. 200 W AES / 400 W continuous) and DSP control. A high-pass filter set at approximately 50 Hz is recommended to protect the driver below its usable range. Typical operating bandwidth is 60–100 Hz, making it suitable for integration with a mid-bass or full-range system.
This design is particularly effective in sealed enclosure systems used in hi-fi subwoofer systems, home theater, in-wall installations, automotive, and under-seat applications, where low-frequency extension and compact form factor are prioritized over high acoustic efficiency.
──────────────────────────────────────────────────────────────────────
======================================================================
PRODUCT CODE: Twiggy12X4-470A
======================================================================
--- ENCLOSURE RECOMMENDATIONS ---
======================================================================
ENCLOSURE RECOMMENDATIONS: Twiggy12X4-470A
======================================================================
Driver: Twiggy12X4-470A (Twiggy12) — 12" Sub-woofer
Key T/S: Fs=30.0Hz, Qts=1.08, Vas=59.8L, Sens=84.2dB
Power: AES 200W / Cont 400W / Peak 800W
Xmax=9.25mm, Sd=506.7cm², Bl=9.9T·m
RECOMMENDED ENCLOSURE TYPE: Sealed
Sealed Alignment (Qtc = 0.707)
Net Volume: 20 liters
Est. -3dB: 60 Hz
Notes: Sealed enclosure with Butterworth (Qtc=0.707) alignment
--- Summary ---
The Twiggy12X4-470A is a 12-inch sub-woofer driver designed for hi-fi subwoofer systems, home theater, in-wall and under-seat installations, and similar domestic or automotive applications. It operates at 84.2 dB sensitivity (1W/1m). The driver features a compliant suspension design suited to moderate-volume enclosures with extended low-frequency response.
In a sealed enclosure, the driver is best suited to a net internal volume of approximately 20 liters, yielding an estimated –3 dB point of 60 Hz. The sealed alignment provides smooth, well-damped response with a predictable second-order roll-off below resonance, well suited to active crossover integration and DSP-controlled bass management.
The driver is intended for use with moderate amplification (approx. 200 W AES / 400 W continuous) and DSP control. A high-pass filter set at approximately 50 Hz is recommended to protect the driver below its usable range. Typical operating bandwidth is 60–100 Hz, making it suitable for integration with a mid-bass or full-range system.
This design is particularly effective in sealed enclosure systems used in hi-fi subwoofer systems, home theater, in-wall installations, automotive, and under-seat applications, where low-frequency extension and compact form factor are prioritized over high acoustic efficiency.
──────────────────────────────────────────────────────────────────────
