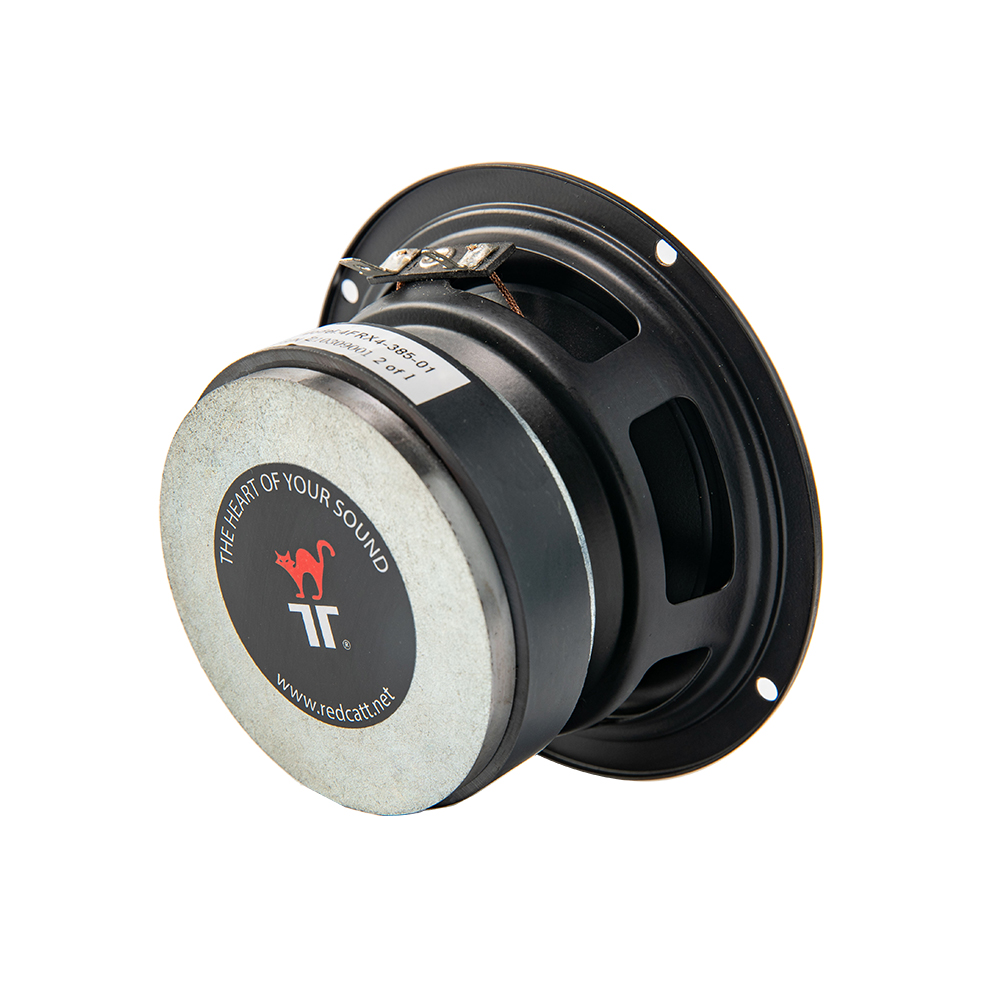

4" | 4FR
Ferrite Full-Range
Key features:
  • 4FR MID-WOOFER WAS DESIGNED WITH OUTDOOR APPLICATIONS IN MIND. ALL

  • EXTENDED LF FREQUENCY RESPONSE

  • 2-way speaker systems

Design notes:
    • 4FR Mid-woofer was designed with outdoor applications in mind. All speaker parts are coated to provide good protection against weather elements. The surround, cone and dust cap are produced with UV stabilizers. Our state of the art glue application and glue selection ensures the
    • glue joints are waterproof. Magnet circuit is designed around sizable ferrite magnet. Consistent and wide Bl field add to the well balanced performance of this driver. Polypropylene cone and dustcap are lightweight solution and deliver the highest levels of performance.Large
    • surround roll extends the peak to peak cone displacement and greatly improves the LF performance. The best application is in 2-way or multi-way speaker systems that can be designed for indoor or outdoor usage in Hi-Fi or professional products.
Specifications:
    • General specs
      Nominal Diameter:4 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:30 Watts
      Program Power:60 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:Copper
      Former:Aluminum
      Winding height:4.3 mm
    • T/S Parameters
      Resonant frequency:80 Hz
      Re:3.3 ohm
      Qes:0.58
      Qms:4.24
      Qts:0.51
      Vas:1.96 liters
      Sd:50.3 cm2
      Mms:7.3 grams
      Bl:4.58
      Le:0.29 mH
      Sensitivity:85.13 dB
    • Design details
      Surround Material:Rubber
      Cone material:Polypropylene
      Spider:Conex
      Plate thickness:5 mm
      Peak to peak linear cone Displacement6.6 mm
      Overall diameter:116 mm
      Bolt circle diameter:109 mm
      Baffle cutout dia.:94.5 mm
      Number of mounting holes:4
      Depth (flange to rear):55.9 mm
      Net weight:0.78 kg
    • Ordering codes:
      4 ohm version:4FRX4-385
      Recone kits:
      Download:
      Spec download

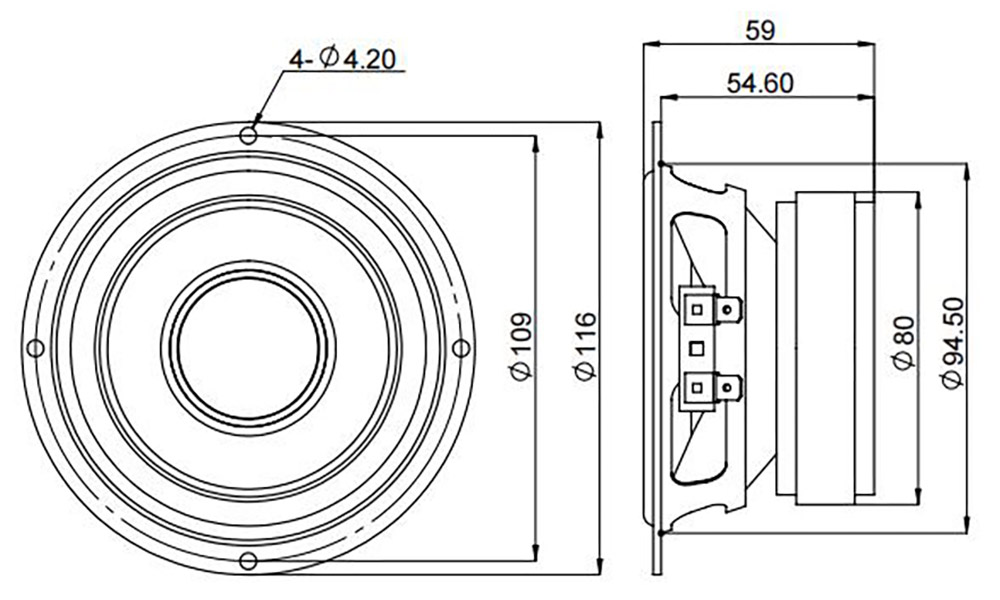

      2D drawing
      3D model

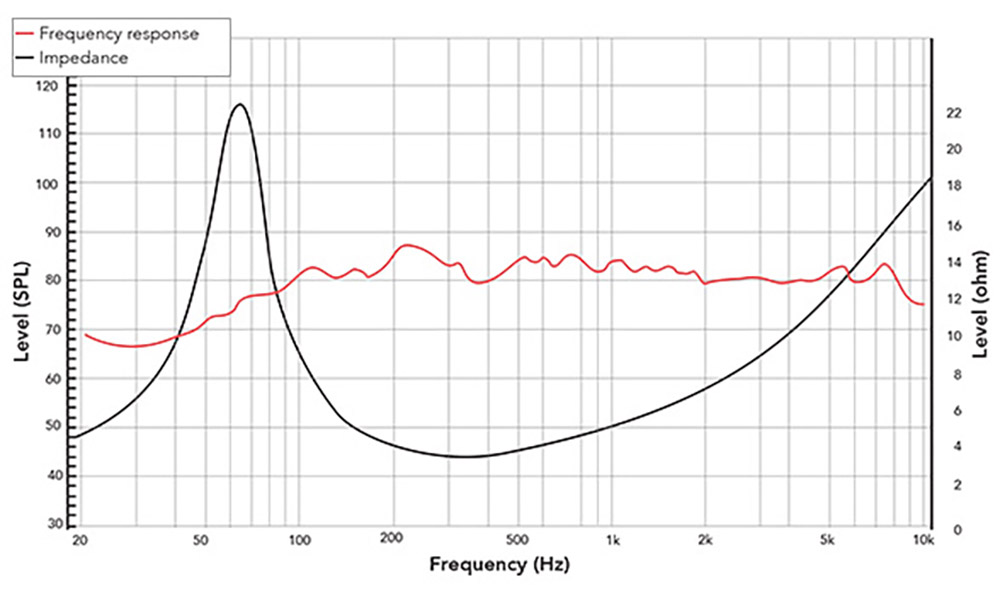

Frequency response & lmpedance
