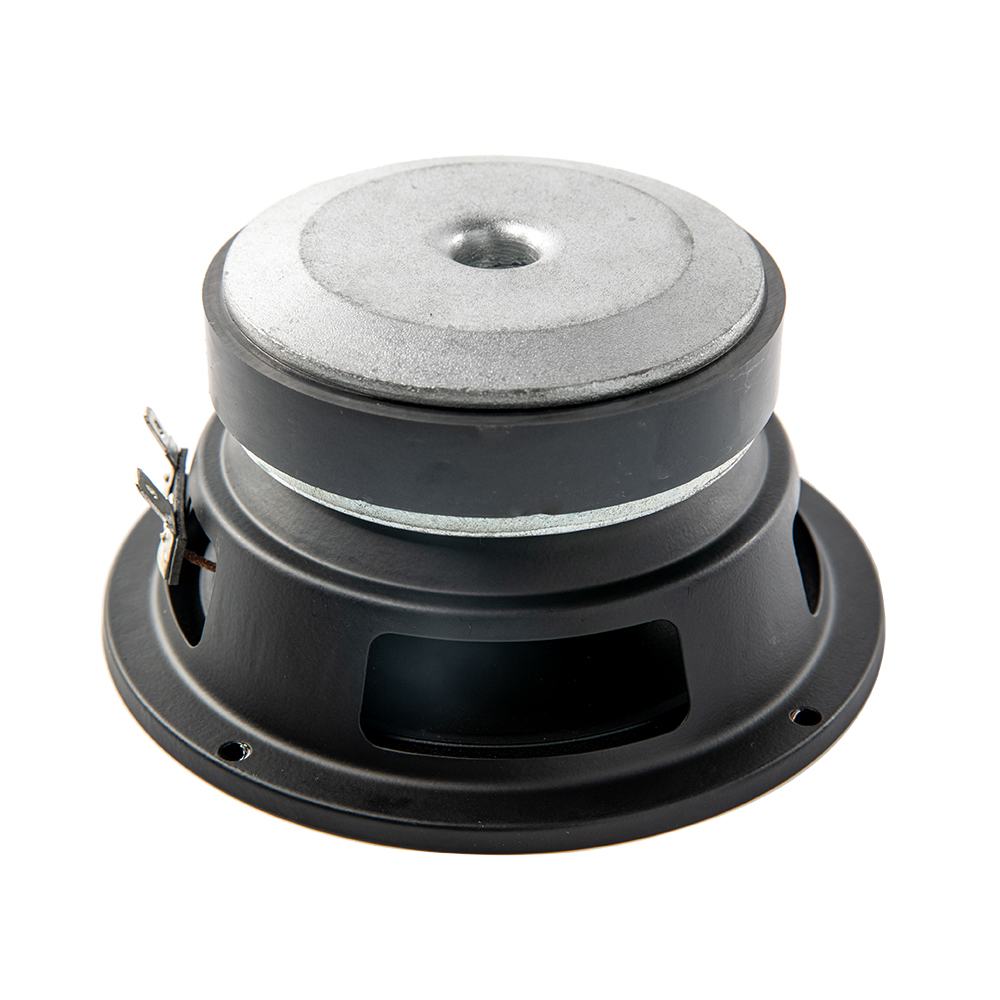

5" | 5FHW
Ferrite Woofer
Key features:
- Small sub-woofers, hi-fi applications
- Designed for indoor or outdoor applications
Design notes:
- The 5FHW was designed for woofer applications in either home hi-fi or outdoor speaker systems. Our engineers have designed polypropylene cone and dustcap for this
- driver, combined with ferrite magnetic circuit. Overall, this model provides great level of balance between the performance and cost. The cone, dust cap and surround material are produced with UV stabilizers. Furthermore,
- the state of the art REDCATT adhesives dispensing and selection ensures the driver is waterproof and thus can be used in outdoor applications.
Specifications:
General specs Nominal Diameter: 5 in. Rated Impedance: 4 Ohm Power handling AES Power: 30 Watts Program Power: 60 Watts Voice Coil Diameter: 1 in. Winding wire: Copper Former: Aluminum Winding height: 12.4 mm T/S Parameters Resonant frequency: 50 Hz Re: 3.2 ohm Qes: 0.38 Qms: 4.94 Qts: 0.35 Vas: 6.55 liters Sd: 86.6 cm2 Mms: 15.8 grams Bl: 6.55 Le: 0.66 mH Sensitivity: 86.39 dB Design details Surround Material: Rubber Cone material: Polypropylene Spider: Conex Plate thickness: 6 mm Peak to peak linear cone Displacement 11.2 mm Overall diameter: 131 mm Bolt circle diameter: 123 mm Baffle cutout dia.: 112 mm Number of mounting holes: 4 Depth (flange to rear): 60 mm Net weight: 1.23 kg Ordering codes: 4 ohm version: 5FHWX4-380 Recone kits: Download: Spec download 2D drawing 3D model

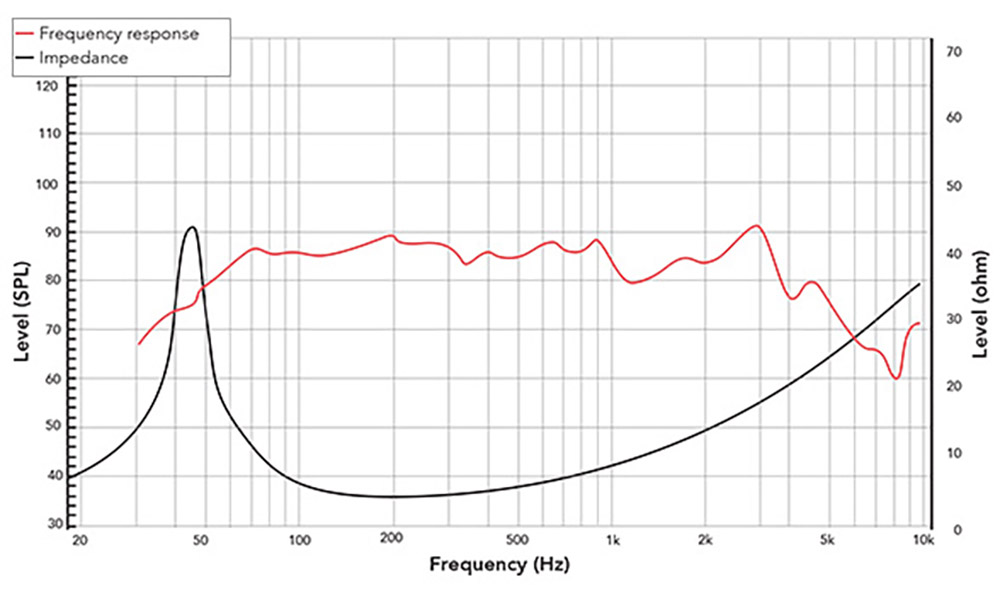

Frequency response & lmpedance

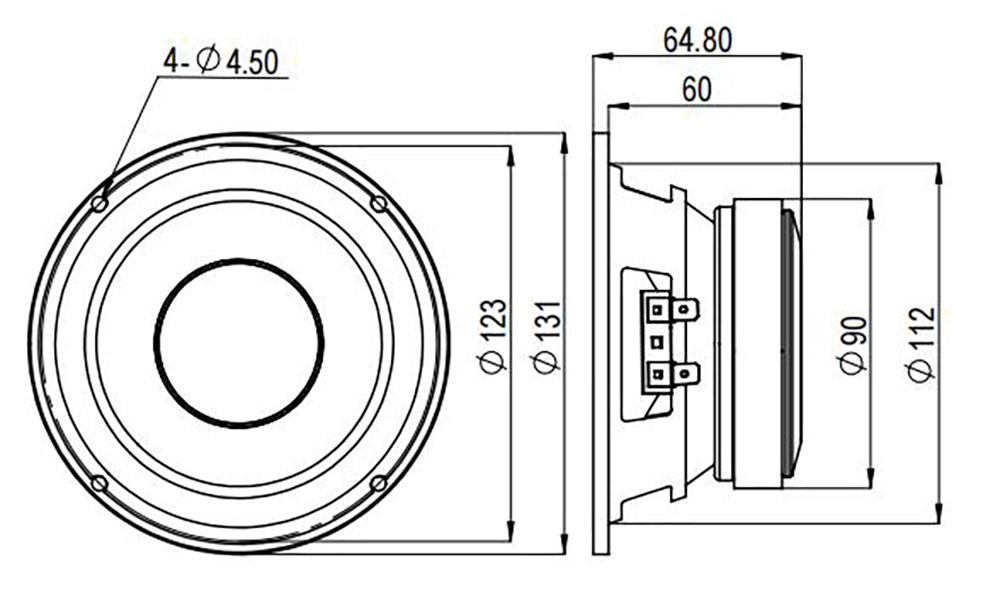

2D drawing
