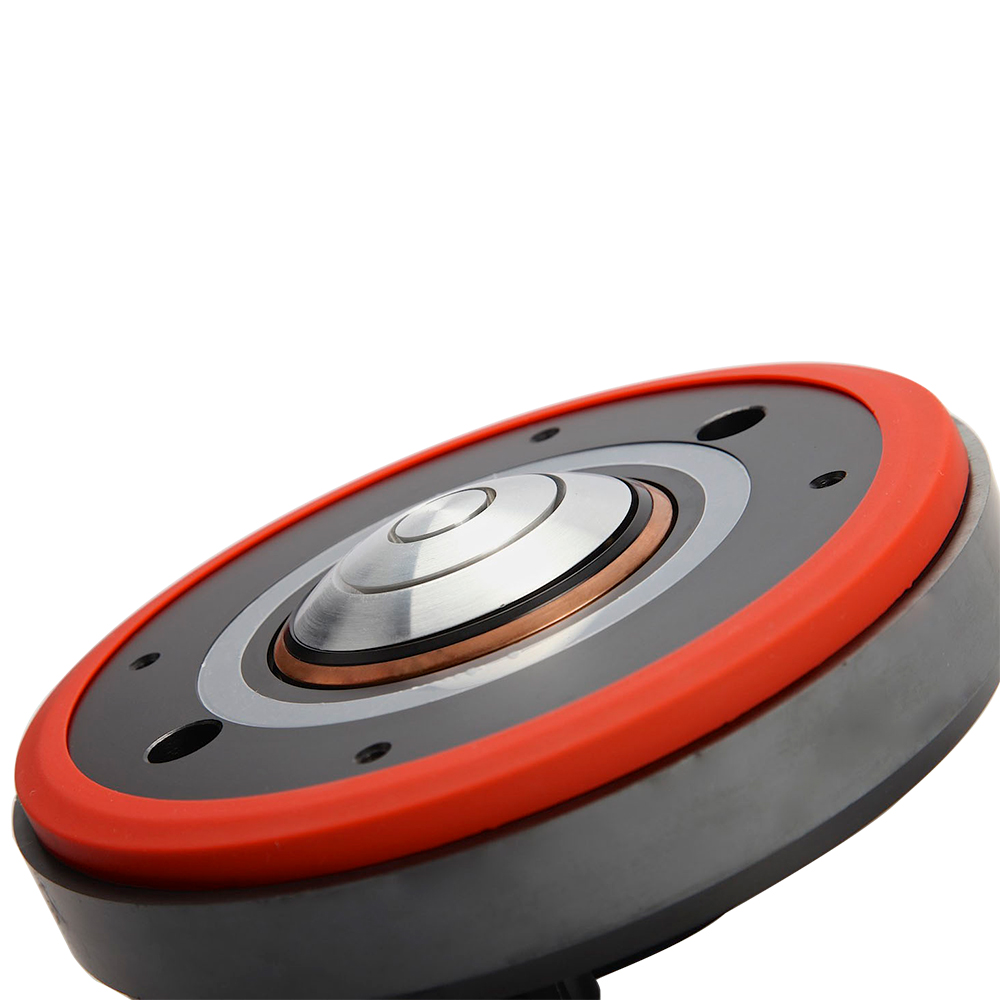

3" | 200FCD
Ferrite Compression Driver
Key features:
- Very low resonant frequency
- Copper cap demodulation ring, powerful motor structure
- Designed for large speaker systems where high SPL is required
Design notes:
- The 200FCD compression driver is a very high performance high frequency device ideal for large professional loudspeaker systems. The driver uses all components that were designed and manufacture with one objective in mind - be the best. The driver’s phase
- plug is CNC machined from solid aluminum with unbeaten level of precision. The dome is carefully attached to the voice coil with our sandwich joint, improving the transfer of the high frequencies and further improving power handling and reliability of the driver.
- Diaphragm AssemblyThe driver features a 75mm pure titanium diaphragm. Suspension is formed from Polyimide material. The acoustic output exits through an aluminum, radial 3 slot phase plug and a 2.0 inch throat aperture. Nominal sensitivity is 108.5 dB 1watt / 1 meter.
Specifications:
General specs Nominal Diameter: 3 in. Rated Impedance: 8 Ohm Power handling AES Power: 110 Watts Program Power: 220 Watts Voice Coil Diameter: 3 in. Winding wire: CCAW Former: kapton T/S Parameters Resonant frequency: 500 Hz Nominal sensitivity: 108.5 dB Re: 5.5 ohm Design details Dome material: Titanium Magnet material: Ferrite Surround Material: Polymer Overall diameter: 180 mm Bolt circle diameter: 102 mm Throat diameter: 48 mm Number of mounting holes: 4 Depth (flange to rear): 91.5 mm Net weight: 5 kg Ordering codes: 8 ohm version: 200FCDX8-049 Recone kits: Download: Spec download 2D drawing 3D model

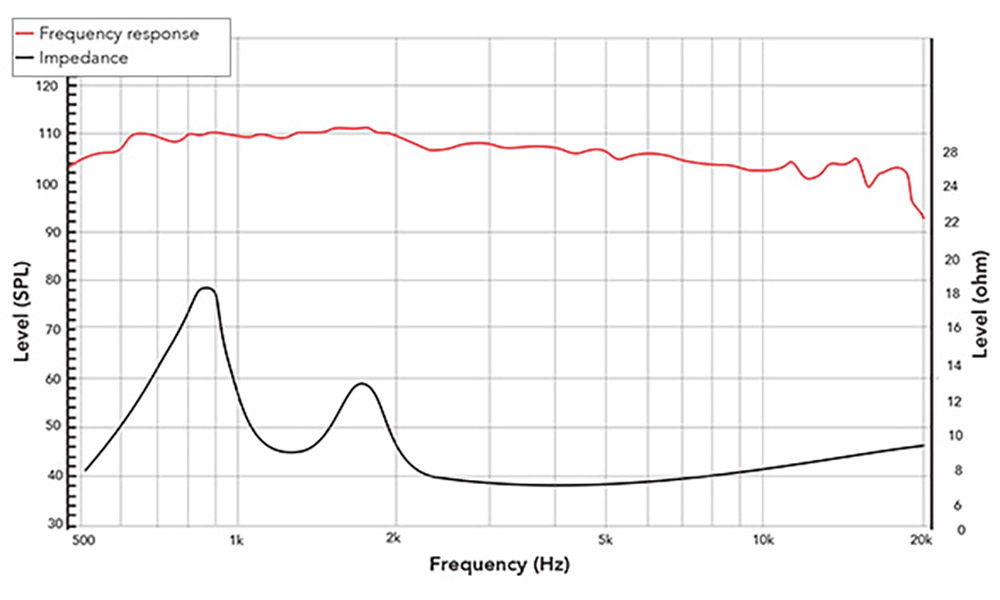

Frequency response & lmpedance

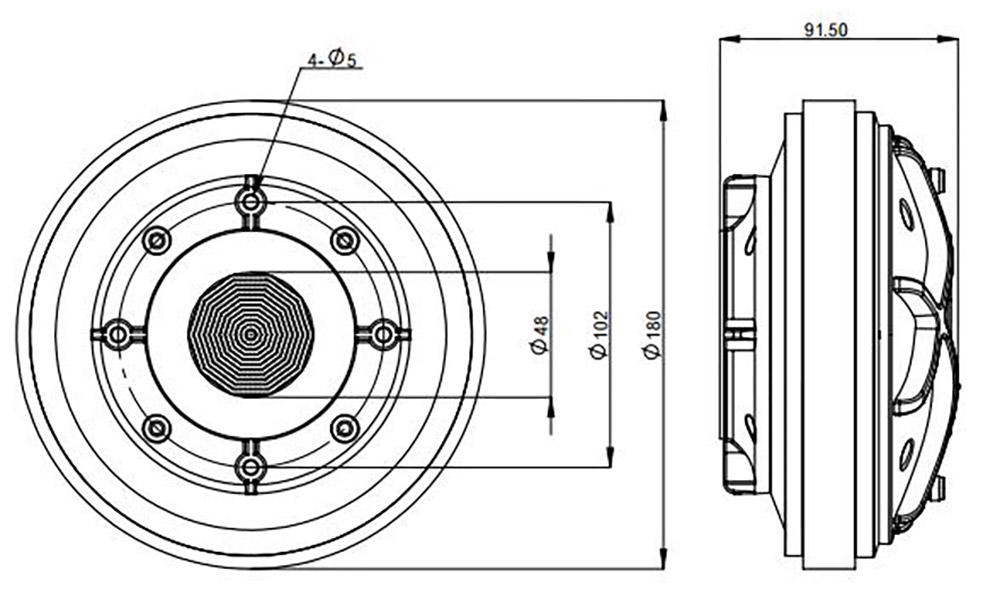

2D drawing
