3" | 201NTi
Neodymium Compression Driver
Key features:
  • Very compact design

  • Pure titanium dome with surround integrated resonance control features

  • Portable products, 2-way and multi-way systems, line-array applications

Design notes:
    • The 201NTi compression driver is based on the design of our successful 200NTi. We have shared the same dome assembly between these two models, while we have packed the driver into a smaller form factor. Not any compromises have been made to the sound character. This driver is here to supports your needs in the

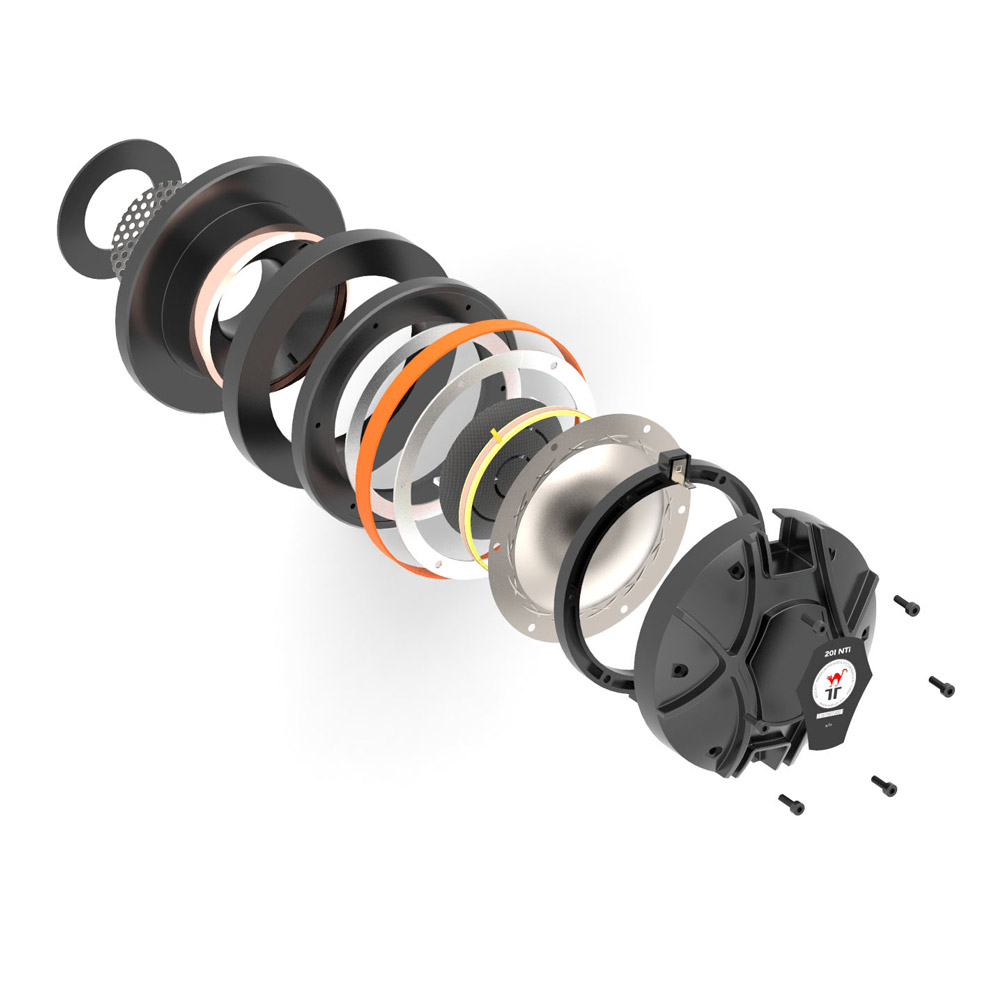

    • applications where the space is limited. The driver’s Neodymium based magnetic circuit provides a robust, high force BL field, delivering precision control of the pure titanium diaphragm assembly, featuring 1.4inch exit throat. Dome Assembly DesignREDCATT has designed the dome and the surround of this compression driver as
    • a single part. The voice coil former is attached to the dome as “L” sandwich. This solution greatly improves the transfer of all frequencies onto the dome, with a good transient response. It also dramatically improves the power handling capability of the driver.
Specifications:
    • General specs
      Nominal Diameter:3 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:100 Watts
      Program Power:200 Watts
      Voice Coil
      Diameter:3 in.
      Winding wire:CCAW
      Former:kapton
    • T/S Parameters
      Resonant frequency:700 Hz
      Nominal sensitivity:109 dB
      Re:5.9 ohm
    • Design details
      Dome material:Titanium
      Magnet material:Neodymium
      Surround Material:Titanium
      Overall diameter:112 mm
      Bolt circle diameter:102 mm
      Throat diameter:36 mm
      Number of mounting holes:4
      Depth (flange to rear):62.1 mm
      Net weight:1.95 kg
    • Ordering codes:
      8 ohm version:201NTiX8-316
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

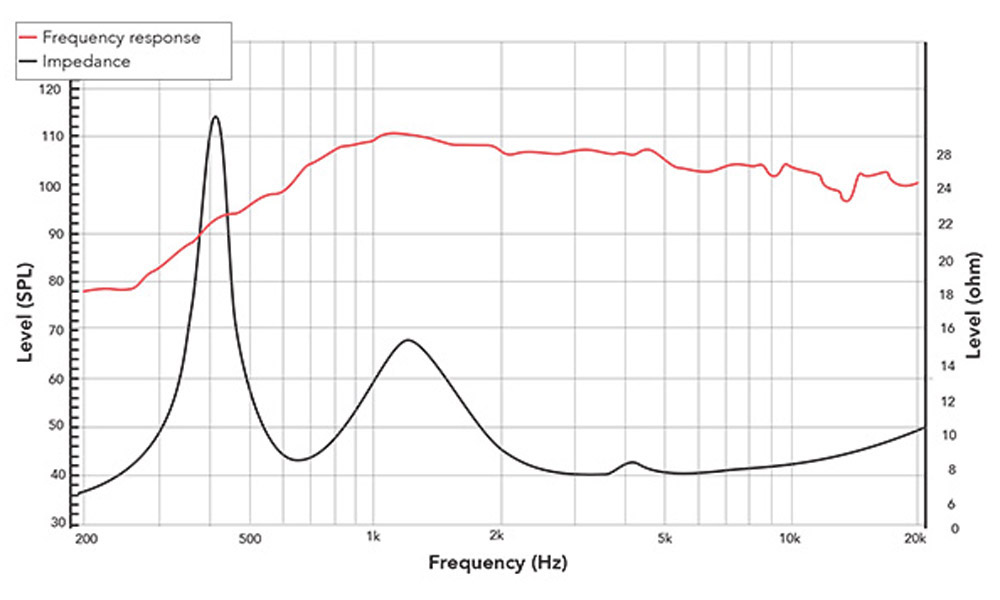

Frequency response & lmpedance

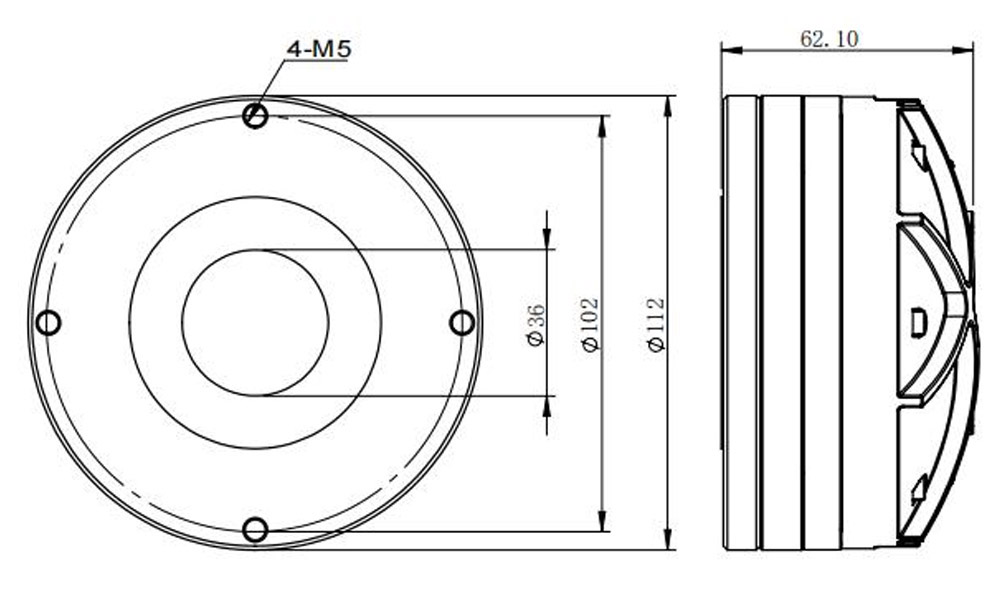

2D drawing
