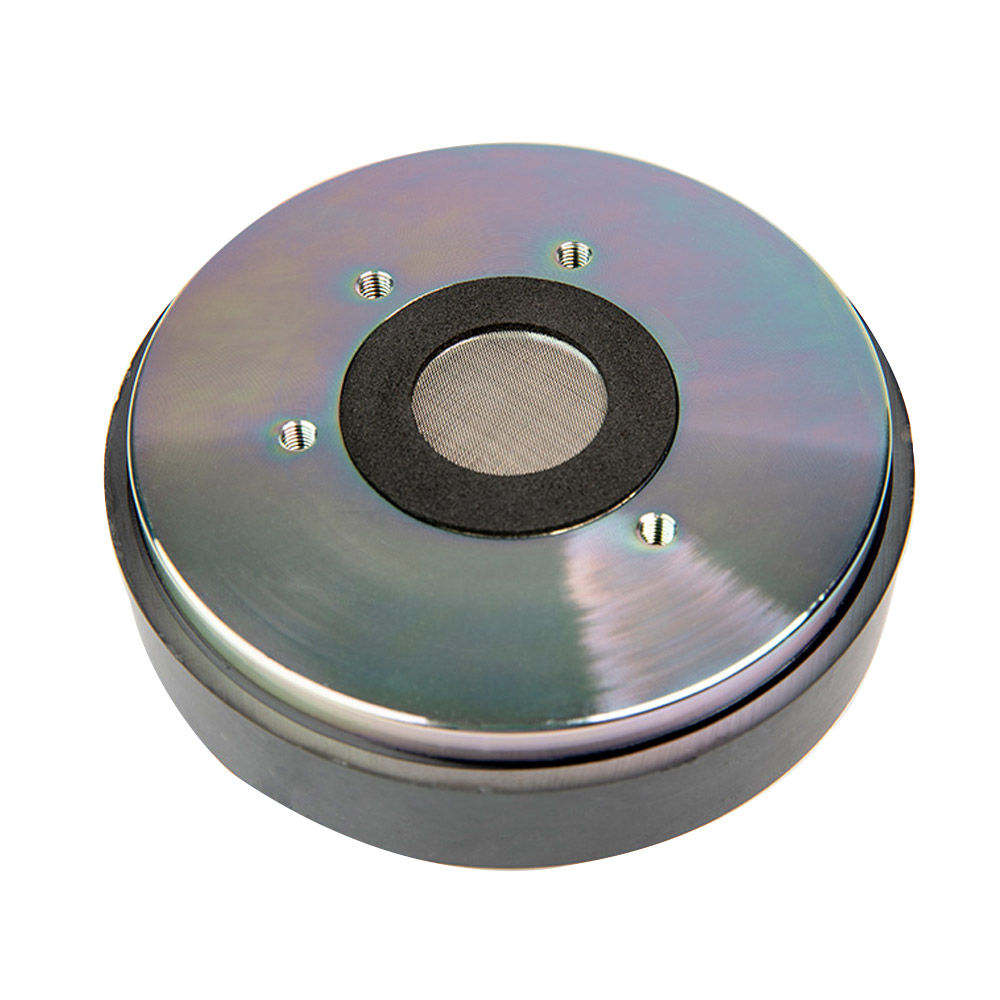

1.8" | 181FCD
Ferrite Compression Driver
Key features:
- EXTENDED FREQUENCY RESPONSE
- FEM optimized magnetic structure
- Use in larger speaker systems
Design notes:
- The 181FCD compression driver is a very high performance high frequency device ideal for professional loudspeaker systems. The driver’s dome is carefully
- attached to based magnetic circuit provides a robust, high force BL field, providing precision control of the Polyimide diaphragm assembly. We have optimized the
- overall performance of this compression driver to deliver pleasant sound.
Specifications:
General specs Nominal Diameter: 1.8 in. Rated Impedance: 8 Ohm Power handling AES Power: 70 Watts Program Power: 140 Watts Voice Coil Diameter: 1.8 in. Winding wire: CCAW Former: kapton T/S Parameters Resonant frequency: 1,500 Hz Nominal sensitivity: 109 dB Re: 5.2 ohm Design details Dome material: Polymer Magnet material: Ferrite Surround Material: Polymer Overall diameter: 110 mm Bolt circle diameter: 57 mm Throat diameter: 26 mm Number of mounting holes: 4 Depth (flange to rear): 62.83 mm Net weight: 1.75 kg Ordering codes: 8 ohm version: 181FCDX8-227A Recone kits: Download: Spec download 2D drawing 3D model

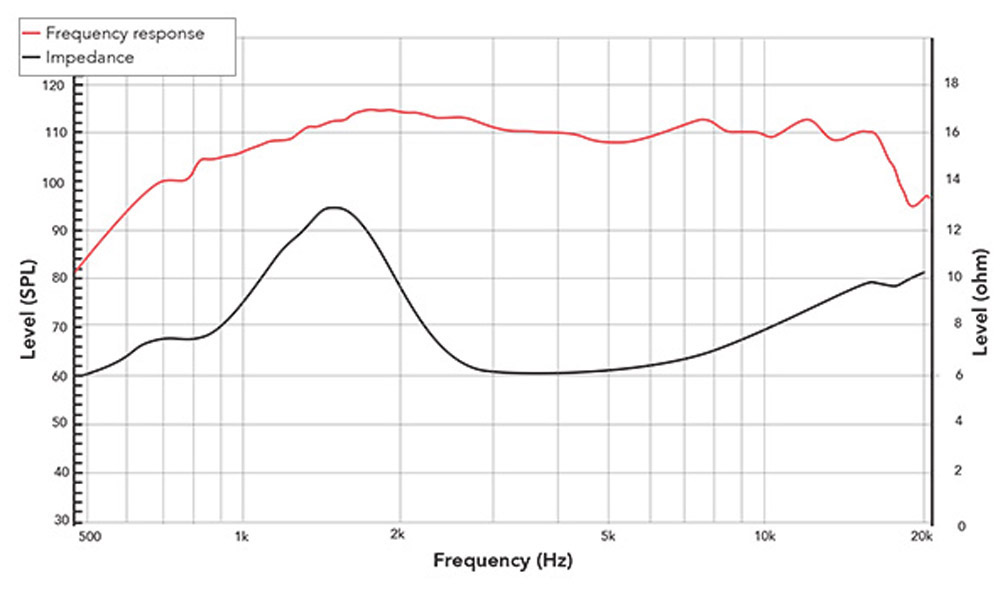

Frequency response & lmpedance

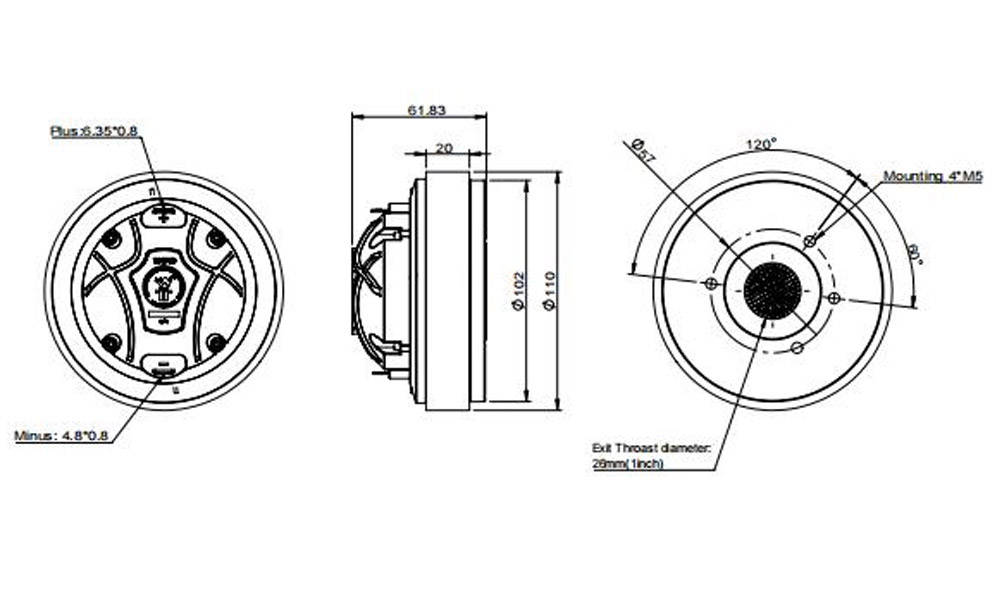

2D drawing
