1" | 25TF

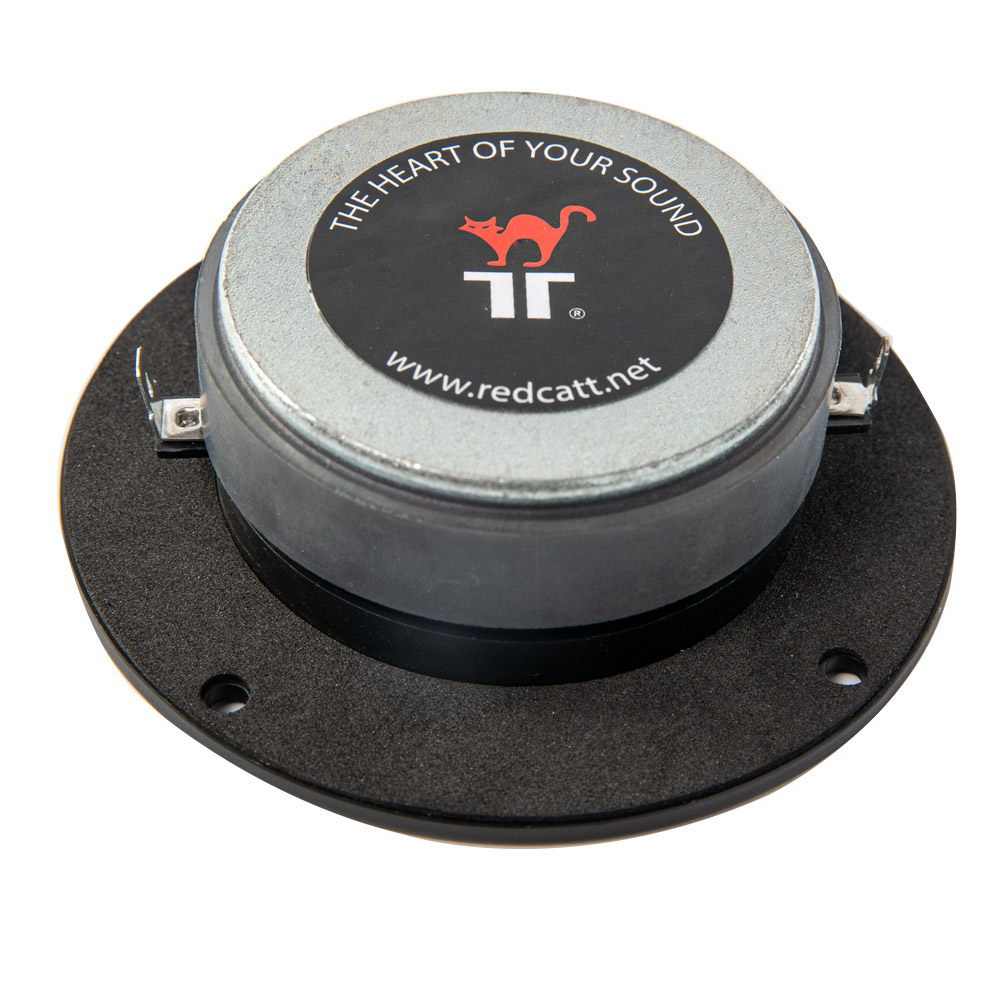

Ferrite Tweeter
Key features:
  • low resonant frequency, high SPL

  • smooth frequency response

  • easy crossover design possible

Design notes:
    • 25TF ferrite based tweter was design for high quality audio applications. It sports single piece poly-silk dome, formed together with surround. Furthermore, the magnetic system and dome sub-assembly is inbuilt into carrier that is later further assembled with our waveguide. The magnetic circuit delivers robust and consistent B field. Its design has been FEM optimized and features
    • small resonant chamber. All metal parts are coated for weather protection. The dome is carefully attached to CCAW winding voice coil, wound on a Kapton former. Our precission adhesive dispensing ensures consistency and reliability of all our products. This version of 25TF style tweeter shares all components with aluminum dome version 25TF. The difference is only the dome itself.
    • While aluminum dome delivers crisp HF, the poly-silk dome is dampened in the high frequencies and has a smoother roll off. Each version has its own application, that perhaps depends on personal preferences of the audio engineer. The best application of this device is in studio monitors, 2-way Hi-Fi systems as well as outdoor products.
Specifications:
    • General specs
      Nominal Diameter:1 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:CCAW
      Former:Aluminum
    • T/S Parameters
      Resonant frequency:1,000 Hz
      Nominal sensitivity:89.5 dB
      Re:3.8 ohm
    • Design details
      Dome material:Paper
      Magnet material:Ferrite
      Surround Material:NBR
      Overall diameter:103.5 mm
      Bolt circle diameter:93.5 mm
      Throat diameter:n/a mm
      Number of mounting holes:4
      Depth (flange to rear):34.2 mm
      Net weight:0.52 kg
    • Ordering codes:
      4 ohm version:25TFX4-431B
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model
Frequency response & lmpedance

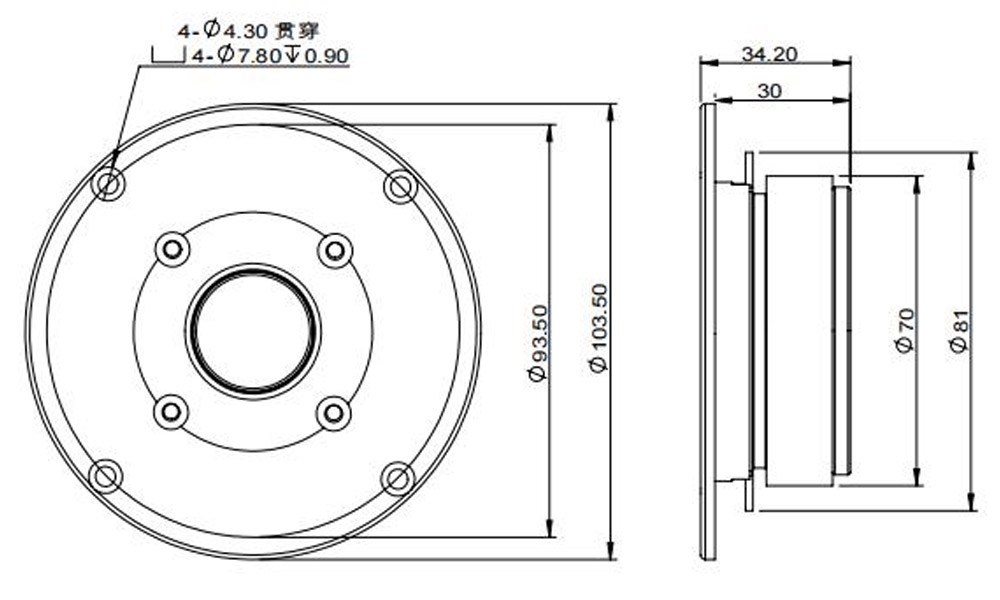

2D drawing
