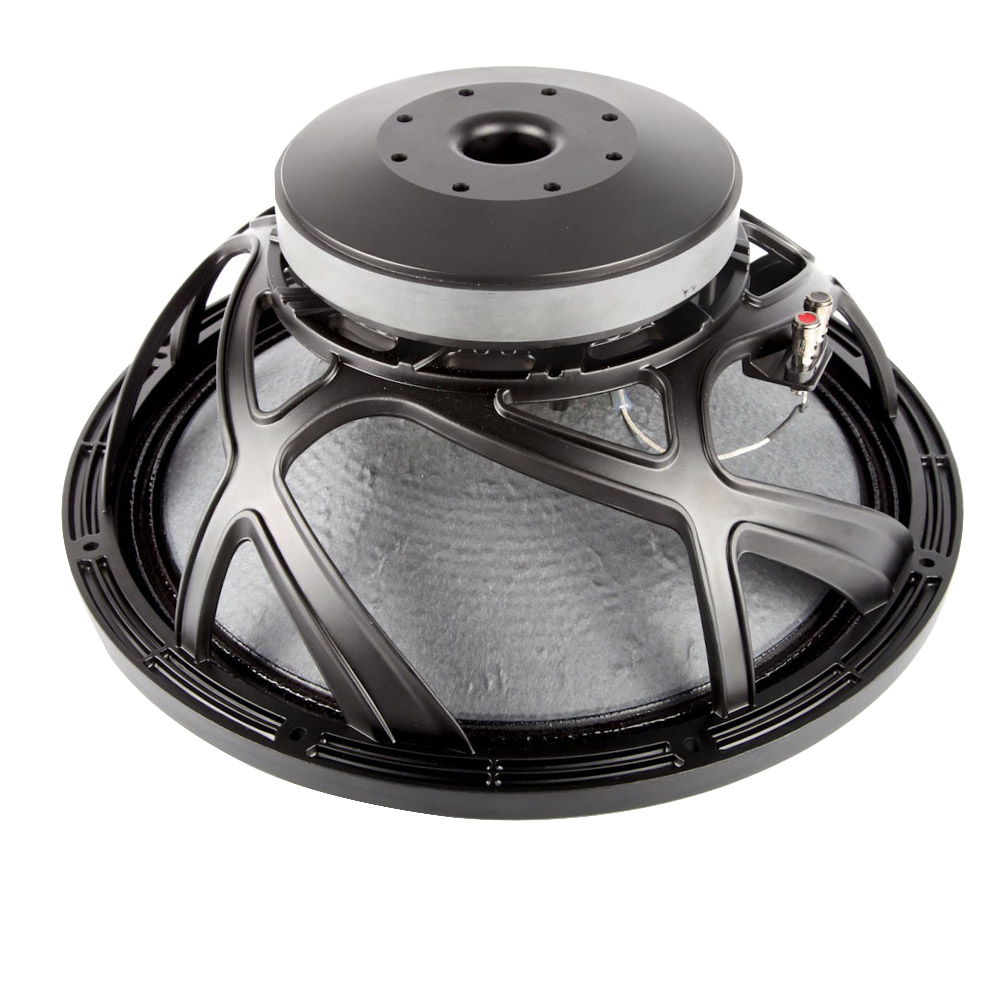

18" | 18FIND
Ferrite Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE

  • Optimized venting system

  • High power handling

Design notes:
    • The 18FIND is a high efficiency, (97 dB 1watt / 1 meter) 18-inch woofer with incredibly linear frequency response characteristics, high power handling capability while generating low harmonic distortion artifacts. The 18FIND uses a lightweight glass fiber loaded cone assembly
    • along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength, high efficiency and a peak to peak maximum excursion of 21mm. Power HandlingAt the core of the 18FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak
    • temperatures in excess of 250C, well beyond the thermal requirements of modern professional audio systems. REDCATT has implemented a silicone spider design to ensure long term shape memory, consistency and diminish anomalies associated with spider deterioration.
Specifications:
    • General specs
      Nominal Diameter:18 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:1,000 Watts
      Program Power:2,000 Watts
      Voice Coil
      Diameter:4 in.
      Winding wire:Copper
      Former:kapton
      Winding height:23.7 mm
    • T/S Parameters
      Resonant frequency:36 Hz
      Re:5.2 ohm
      Qes:0.44
      Qms:8.4
      Qts:0.42
      Vas:203.4 liters
      Sd:1,257 cm2
      Mms:211.8 grams
      Bl:23.6
      Le:1.74 mH
      Sensitivity:97.24 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:12 mm
      Peak to peak linear cone Displacementn/a mm
      Overall diameter:468 mm
      Bolt circle diameter:442 mm
      Baffle cutout dia.:426 mm
      Number of mounting holes:8
      Depth (flange to rear):184 mm
      Net weight:13.7 kg
    • Ordering codes:
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

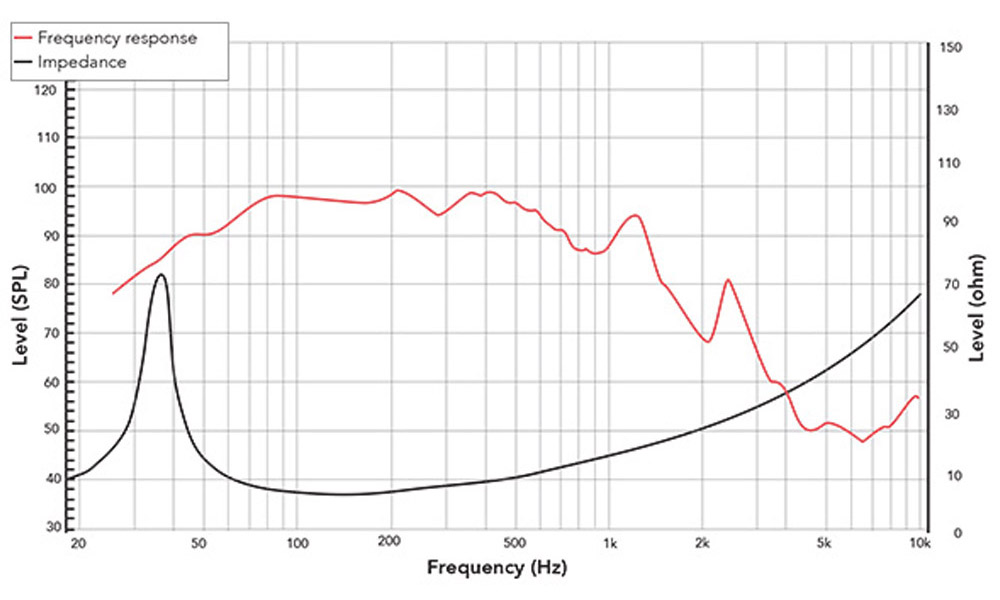

Frequency response & lmpedance

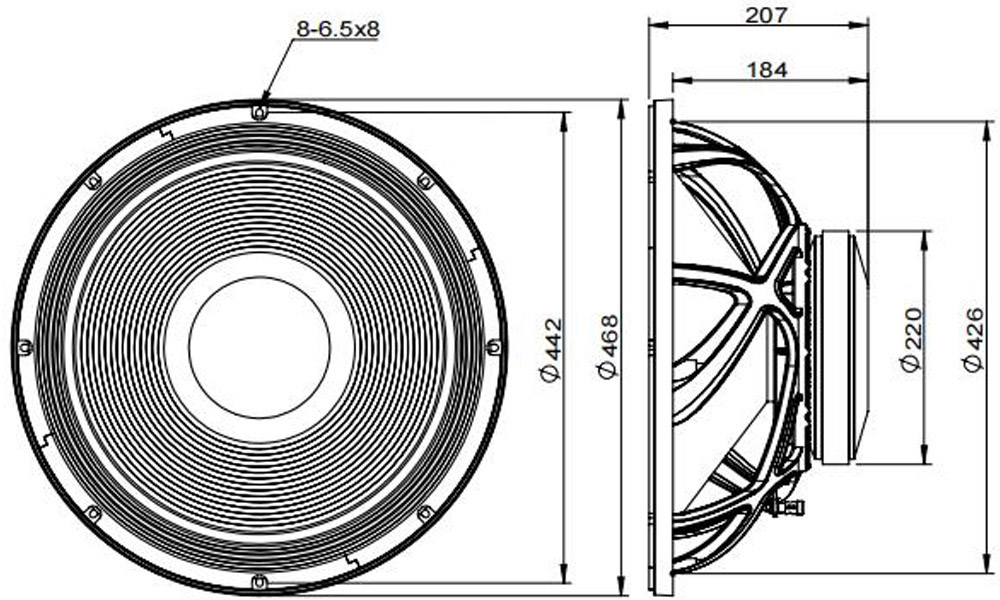

2D drawing
