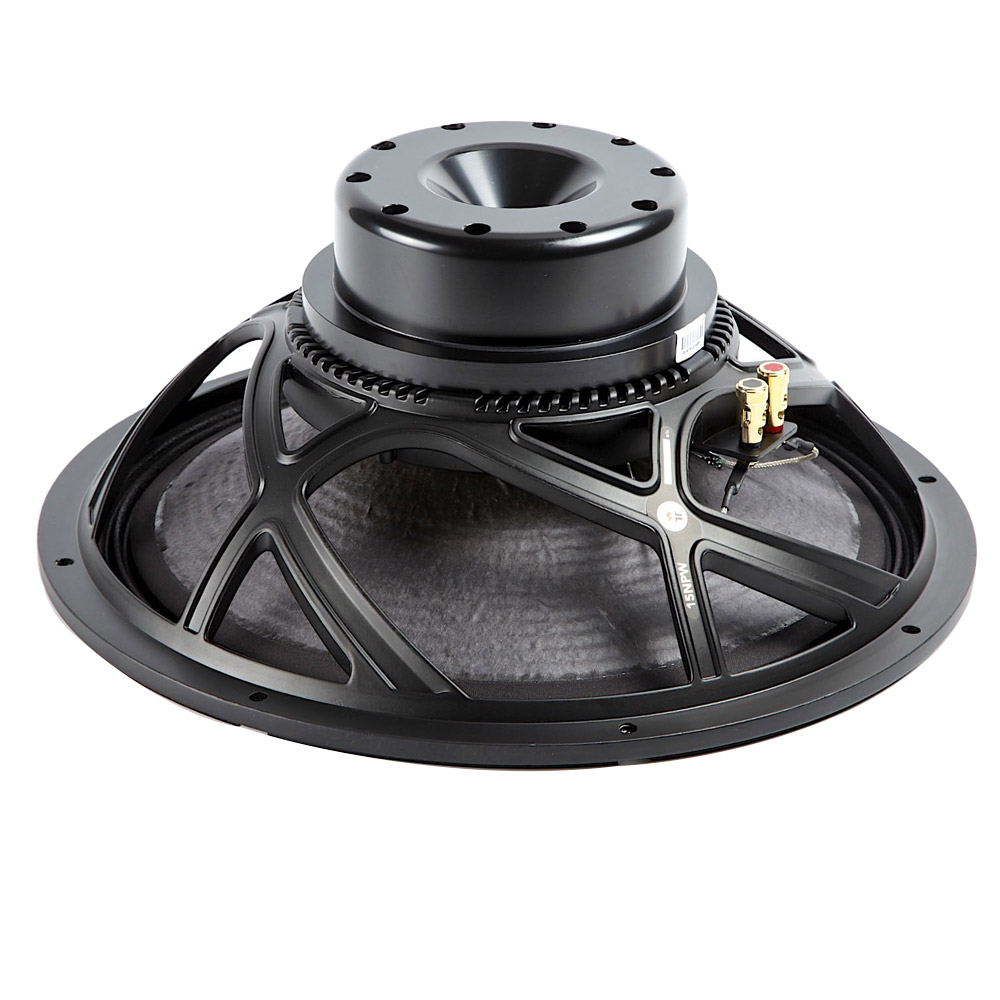

15" | 15NPW
Neodymium Woofer
Key features:
- Carbon fiber loaded paper cone
- Double silicone spider
- High power handling
Design notes:
- The 15NPW is a high efficiency, (97 dB 1watt / 1 meter) 15-inch woofer with linear frequency response characteristics, high power handling capability while generating low harmonic distortion artifacts. The 15NPW uses a lightweight carbon fiber loaded cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable
- strength,high efficiency and a peak to peak maximum excursion of 15mm. Woofer features REDCATT double silicone sealed spider. Power HandlingAt the core of the 15NPW is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 350degC, well beyond the thermal requirements of modern professional
- audio systems. The 15NPW cone and dust cap are made using an advanced carbon fiber loaded REDCATT pulp. The woofer cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
General specs Nominal Diameter: 15 in. Rated Impedance: 8 Ohm Power handling AES Power: 1,200 Watts Program Power: 2,400 Watts Voice Coil Diameter: 4 in. Winding wire: Copper Former: kapton Winding height: 25.5 mm T/S Parameters Resonant frequency: 40 Hz Re: 5.6 ohm Qes: 0.28 Qms: 8.77 Qts: 0.27 Vas: 107 liters Sd: 881 cm2 Mms: 155.1 grams Bl: 28.3 Le: 1.65 mH Sensitivity: 97.34 dB Design details Surround Material: Fabric Cone material: Paper Spider: Nomex Plate thickness: 14 mm Peak to peak linear cone Displacement 14.6 mm Overall diameter: 392 mm Bolt circle diameter: 373 mm Baffle cutout dia.: 360 mm Number of mounting holes: 8 Depth (flange to rear): 155.5 mm Net weight: 8.5 kg Ordering codes: 8 ohm version: 15NPWX8-016 Recone kits: Download: Spec download 2D drawing 3D model

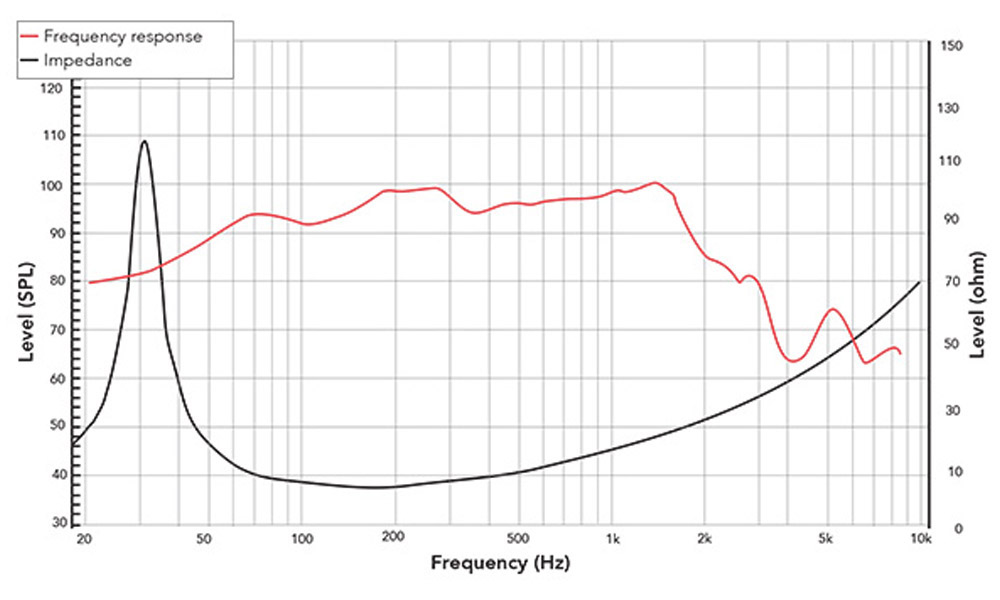

Frequency response & lmpedance

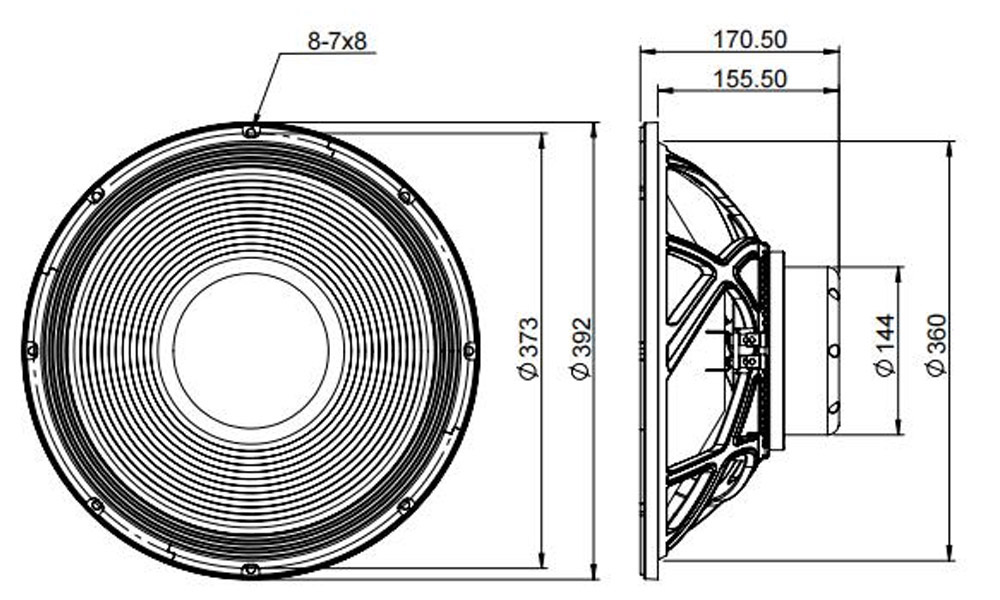

2D drawing
