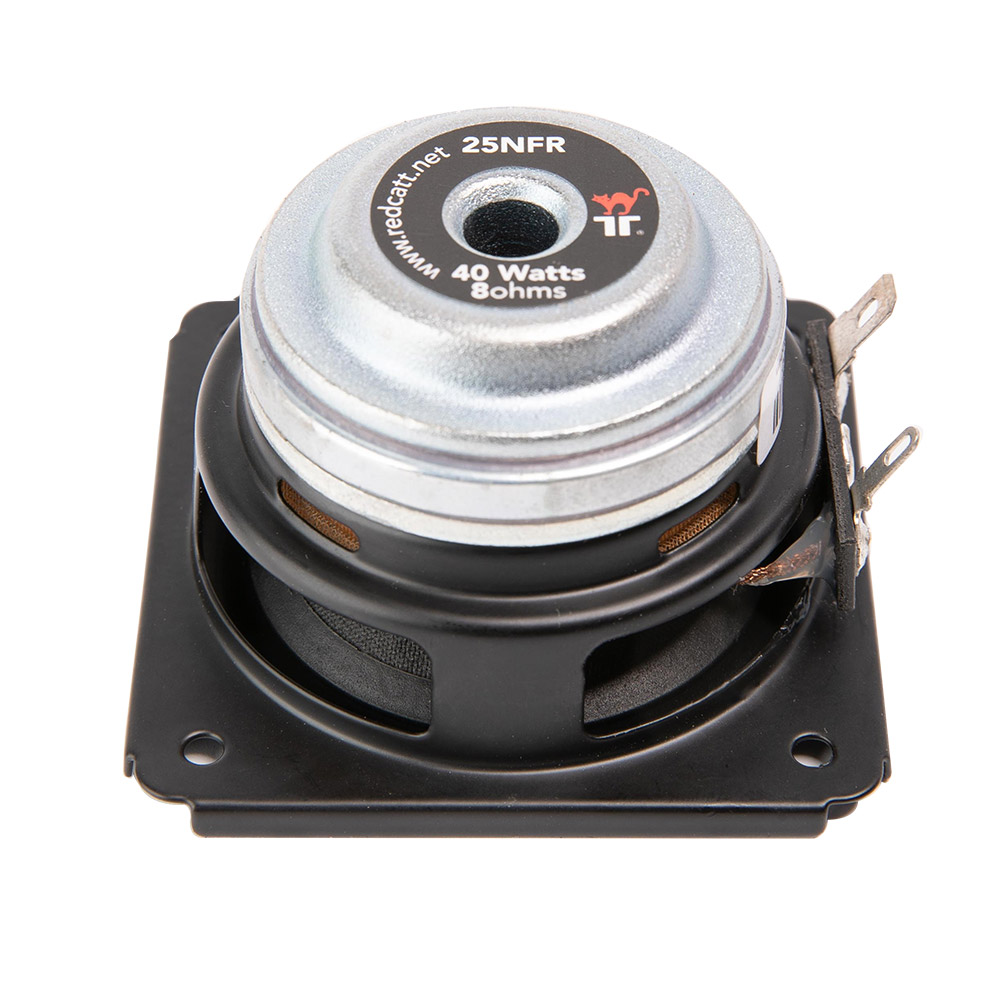

2.5" | 25NFR
Full-range
Key features:
  • Full-range FREQUENCY RESPONSE

  • A very small form factor

  • Optimized frequency response

Design notes:
    • 25NFR was designed around neodymium ring magnet. The magnetic structure delivers very high level of magnetic force, while generating minimum amount of modulation distortion. The lightweight, yet strong, paper cone with attached rubber
    • surround was designed and optimized to deliver the highest level of performance in full-range applications. This speaker finds its best application in columns or multi-way Hi-Fi products. Due to its excellent HF response, further usage of
    • HF units is not required. The small form-factor allows this product to be used in space limited applications or portable products.
Specifications:
    • General specs
      Nominal Diameter:2.5 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:20 Watts
      Program Power:40 Watts
      Voice Coil
      Diameter:0.8 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:8.3 mm
    • T/S Parameters
      Resonant frequency:123 Hz
      Re:7.3 ohm
      Qes:0.81
      Qms:5.97
      Qts:0.71
      Vas:0.46 liters
      Sd:21.2 cm2
      Mms:2.2 grams
      Bl:4
      Le:0.09 mH
      Sensitivity:82.69 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:3 mm
      Peak to peak linear cone Displacement7.8 mm
      Overall diameter:65 mm
      Bolt circle diameter:73 mm
      Baffle cutout dia.:56 mm
      Number of mounting holes:4
      Depth (flange to rear):37 mm
      Net weight:0.18 kg
    • Ordering codes:
      8 ohm version:25NFRX8 ohm-279
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

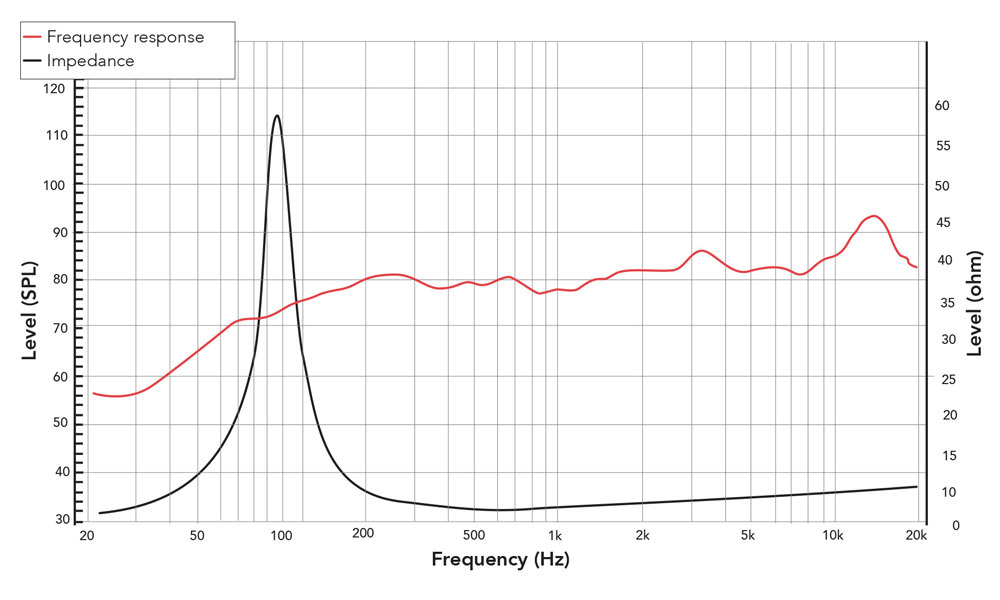

Frequency response & lmpedance

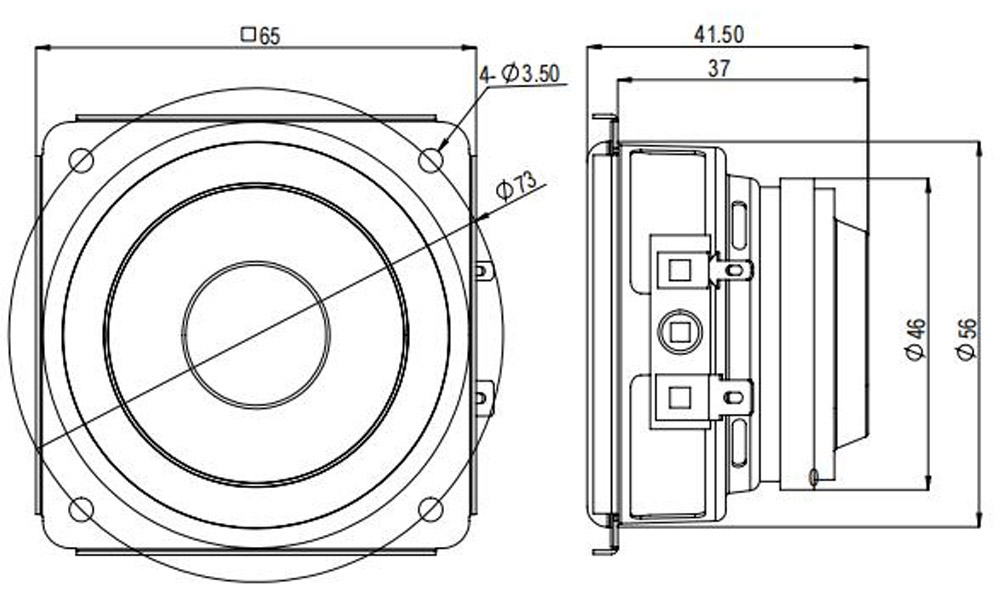

2D drawing
