2" | 21NFR
Neodymium Full-range
Key features:
  • Compact, full-range design

  • Highly efficient magnetic structure

  • High power handling capability

Design notes:

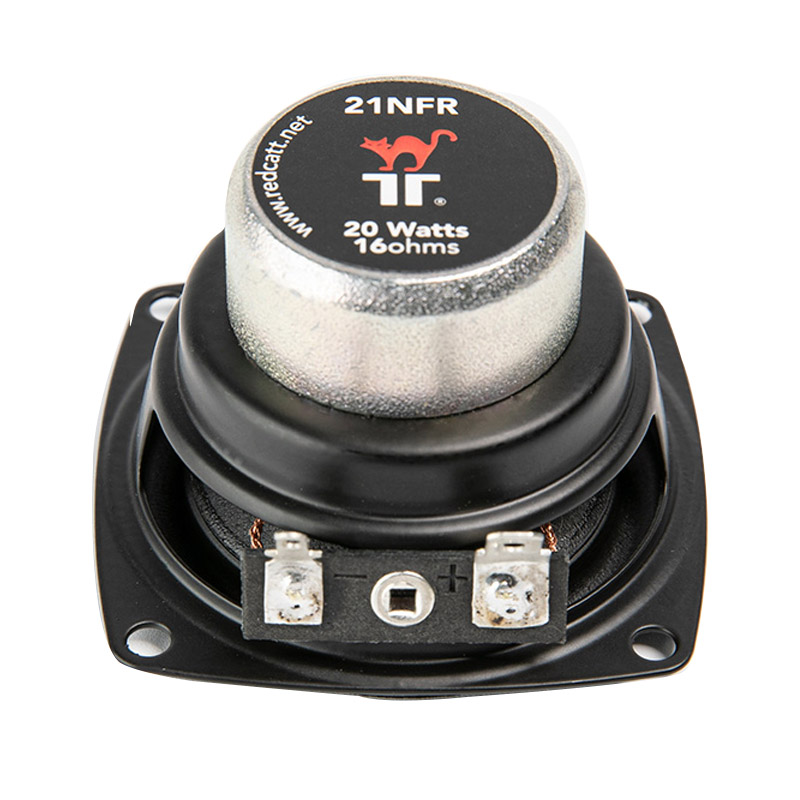

    • Introducing the 21NFR - a small driver with a mighty punch! This gem was developed to deliver a full range of frequencies, from rich bass to crystal-clear highs, making it the perfect choice for portable products, bookshelf speakers, and array applications in columns.What sets the 21NFR apart is its full-range behavior, eliminating the need for additional tweeters
    • while still achieving excellent sound quality. Our extensive experience in designing highly efficient transducers shines through in this driver, offering top-notch performance without breaking the bank.The u-cup style magnetic system is optimized to deliver consistent magnetic flux to the voice coil across the entire operational range, ensuring a powerful and consistent
    • audio experience. Plus, with a lightweight yet robust cone attached to our specially crafted rubber blend surround, the 21NFR is designed to handle low frequencies with ease while also excelling as a high-frequency device.Get ready to experience the power and versatility of the 21NFR - where small size meets massive performance.
Specifications:
    • General specs
      Nominal Diameter:2 in.
      Rated Impedance:16 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:0.8 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:6.4 mm
    • T/S Parameters
      Resonant frequency:157 Hz
      Re:10.2 ohm
      Qes:0.82
      Qms:3.8
      Qts:0.68
      Vas:0.25 liters
      Sd:16.62 cm2
      Mms:1.59 grams
      Bl:4.4
      Le:0.1 mH
      Sensitivity:84.7 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:4 mm
      Peak to peak linear cone Displacement8.2 mm
      Overall diameter:57.3 mm
      Bolt circle diameter:45.45 mm
      Baffle cutout dia.:50.5 mm
      Number of mounting holes:4
      Depth (flange to rear):34.5 mm
      Net weight:0.12 kg
    • Ordering codes:
      16 ohm version:21NFR-X16 ohm-393D
      Recone kits:
      Download:
      Spec download

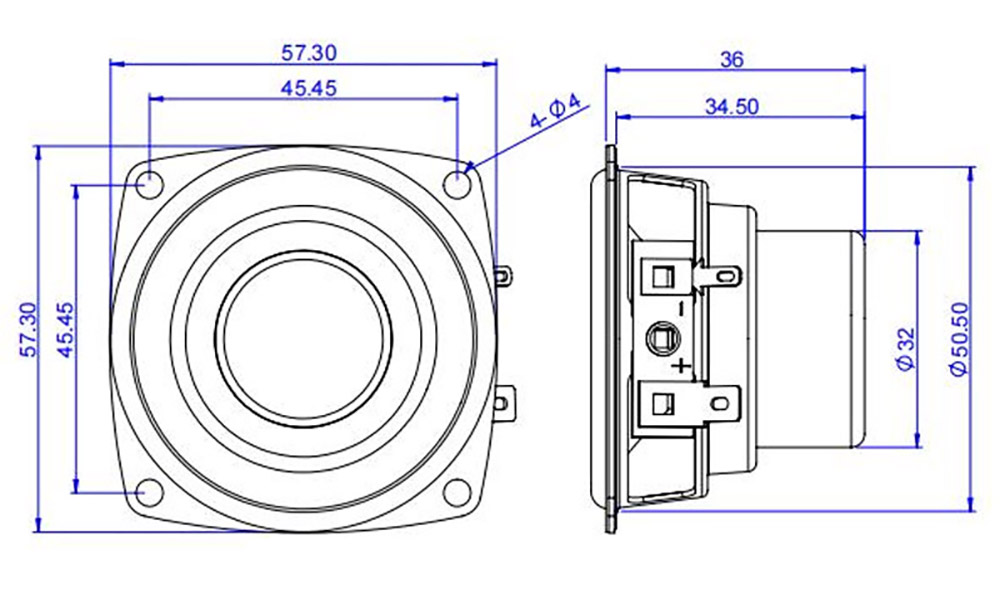

      2D drawing
      3D model

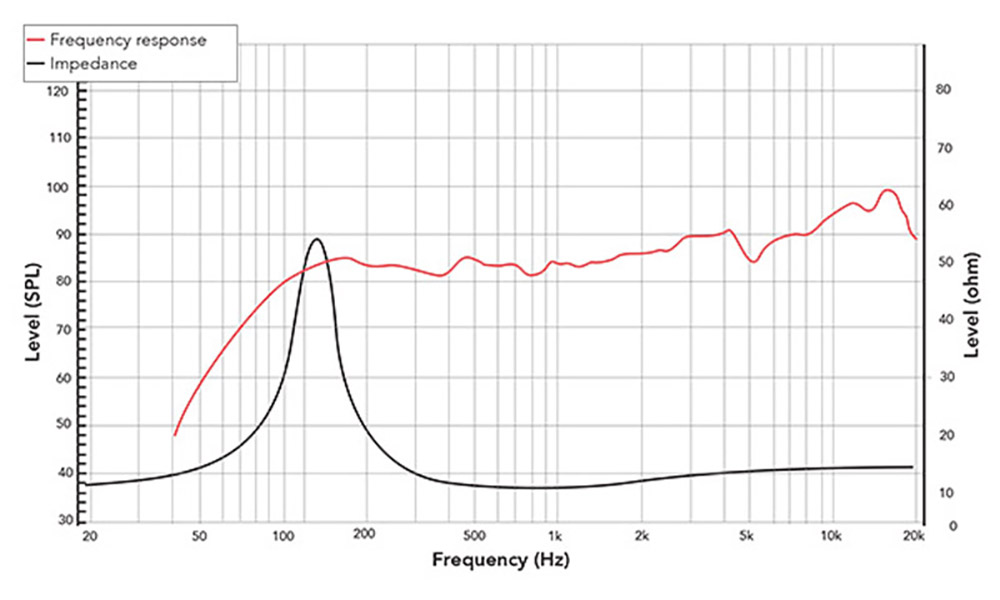

Frequency response & lmpedance
