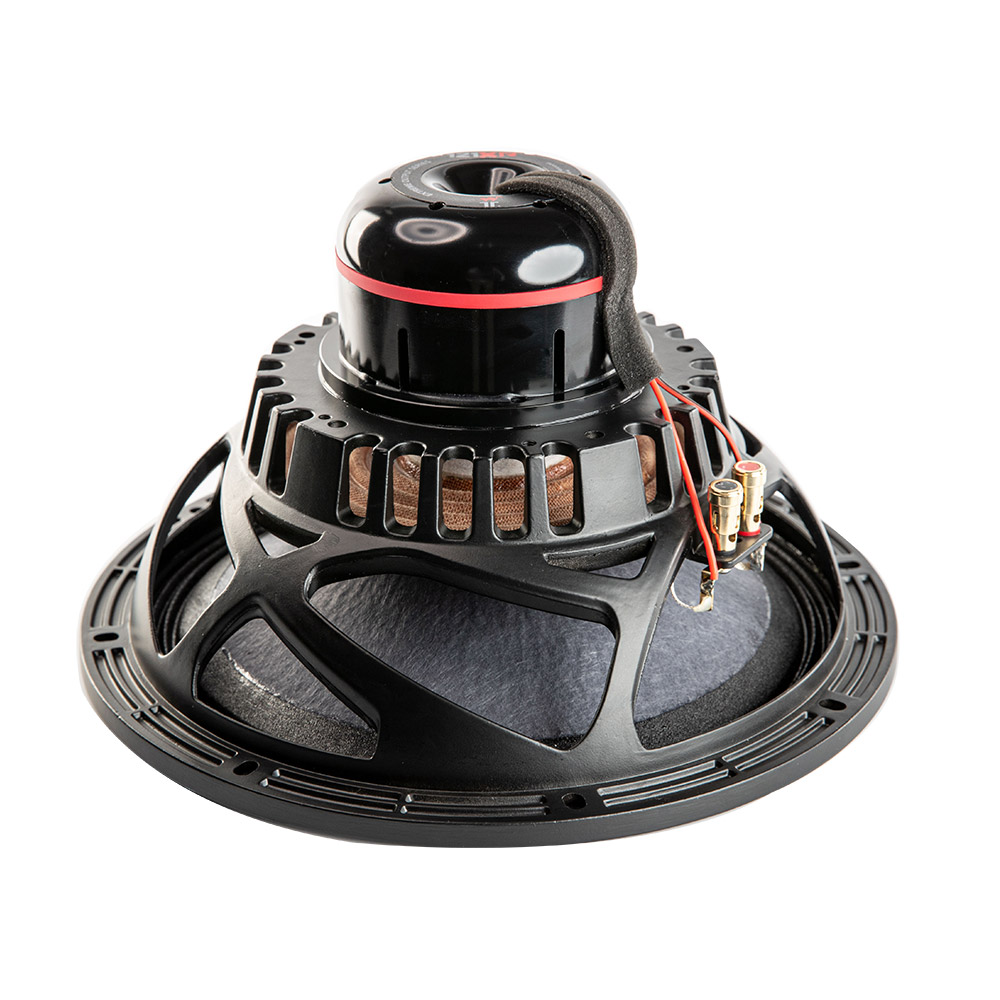

12" | 121XR
Neodymium X-Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE, high excursion, ultra low THD

  • Static demodulation coil, large spider with stitched tinsel wires

  • Carbon fiber loaded paper cone

Design notes:
    • The 121XR was designed to be simply the best driver for 2-way and multi-way systems on the market, yet this driver will also shine in sub-woofer applications. The combination of our XR patented technology with static shorting coil brings an nonparallel opportunity to the audio designers. The common request for 2-way speakers is “more of everything”. Designers wishes for
    • more bass, more mids. Well, there you have it! But not only that. We bring this with clarity in the mid-frequencies and undistorted bass. Our designers were able to achieve THD below 0.5% from 20Hz up to 2.5kHz. There isn’t another driver like this on the market.Motor DesignThe magnetic design incorporates large neodymium magnets placed along the voice coil
    • winding, together with the 2nd and static coil placed on the pole piece. This has allowed us to push the cone excursion to 25mm peak to peak, while lowering the inductance. The shorting coil covers the complete main coil excursion. This is also an improvement compared to some previous designs on the market. Unique gap venting ensures good air circulation and greatly improves the reliability of this driver.
Specifications:
    • General specs
      Nominal Diameter:12 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:500 Watts
      Program Power:1,000 Watts
      Voice Coil
      Diameter:2.5 in.
      Winding wire:Copper
      Former:kapton
      Winding height:18.3 mm
    • T/S Parameters
      Resonant frequency:46 Hz
      Re:5.6 ohm
      Qes:0.42
      Qms:1.56
      Qts:0.33
      Vas:69.1 liters
      Sd:531 cm2
      Mms:66.8 grams
      Bl:16
      Le:0.16 mH
      Sensitivity:95.78 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:31 mm
      Peak to peak linear cone Displacement25.4 mm
      Overall diameter:320 mm
      Bolt circle diameter:299 mm
      Baffle cutout dia.:281 mm
      Number of mounting holes:8
      Depth (flange to rear):172.5 mm
      Net weight:5.1 kg
    • Ordering codes:
      8 ohm version:121XRX8-352
      Recone kits:
      Download:
      Spec download

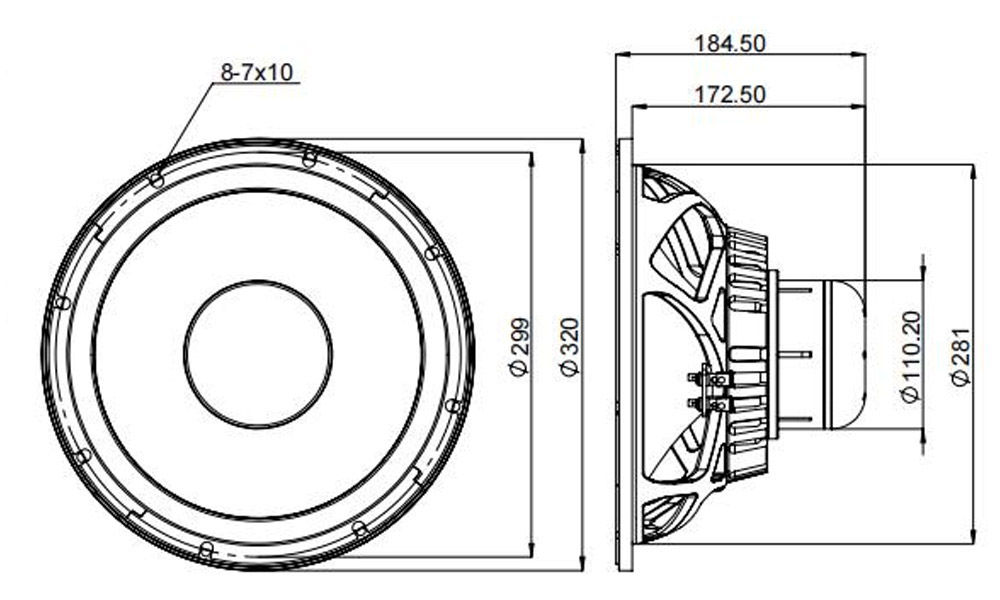

      2D drawing
      3D model

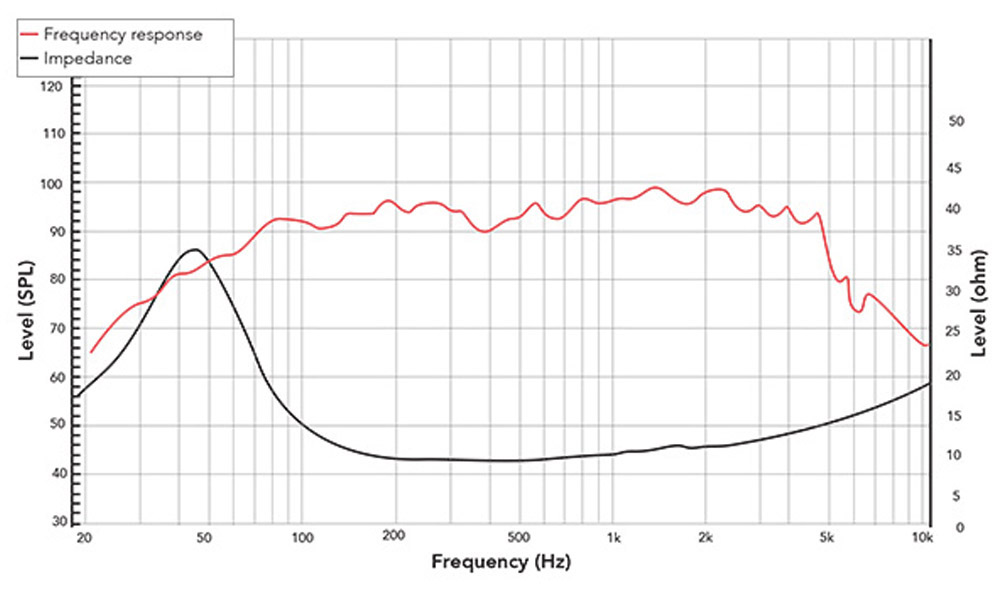

Frequency response & lmpedance
