- Shallow, yet high cone excursion
- Honeycomb cone
- Ideal for 4x4” wall subwoofer, car underseat subwoofers

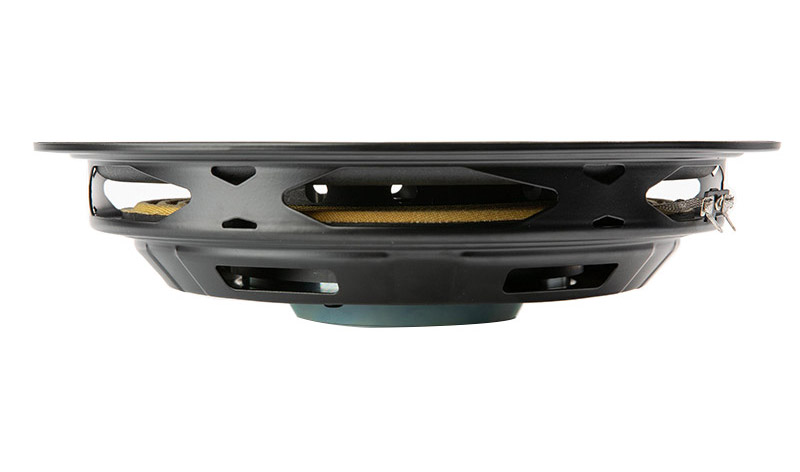

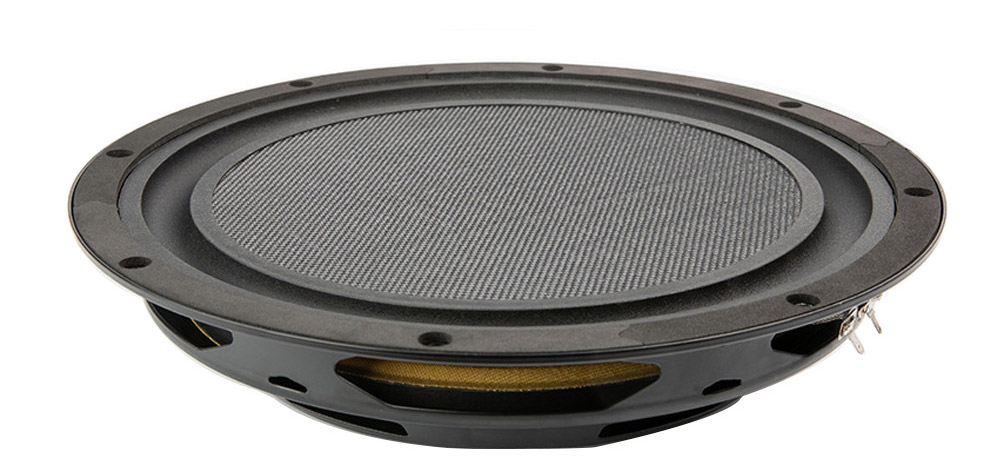

- The ultimate in shallow depth woofer design! We created this powerhouse of a speaker with limited spaces in mind, allowing you to fit it into the most compact areas while still delivering massive low frequencies. The extreme shallowness of the Twiggy 12 opens up a world of possibilities, allowing designers to craft enclosures that seamlessly integrate into typical 4x4" wall structures, under vehicle seats, beneath sofas,and more. But don't
- be fooled by its shallow design –the cone excursion approaches an impressive 22.4mm peak to peak, ensuring that this woofer will deliver sizable amounts of low frequencies without compromising on performance. The cone is constructed with a honeycomb structure and layers of woven glass fibers, adding not only to its strength but also to the overall rigidity and performance.Our patented design guarantees that the
- depth versus cone excursion ratio is the best available in the market, ensuring optimal sound quality in any installation. The unique magnetic structure of the Twiggy 12 delivers a high-strength B field with minimal distortion artifacts, further enhancing the audio experience.To top it off, this little powerhouse can handle up to 800 watts of peak power amplification, making it the go-to choice for delivering excelent sound experience.

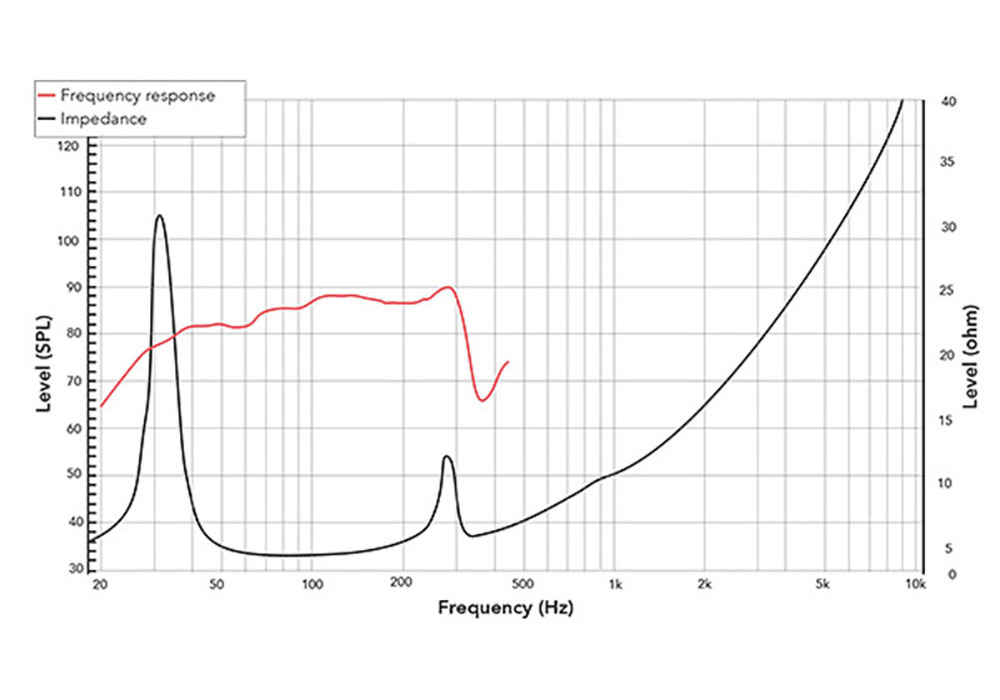

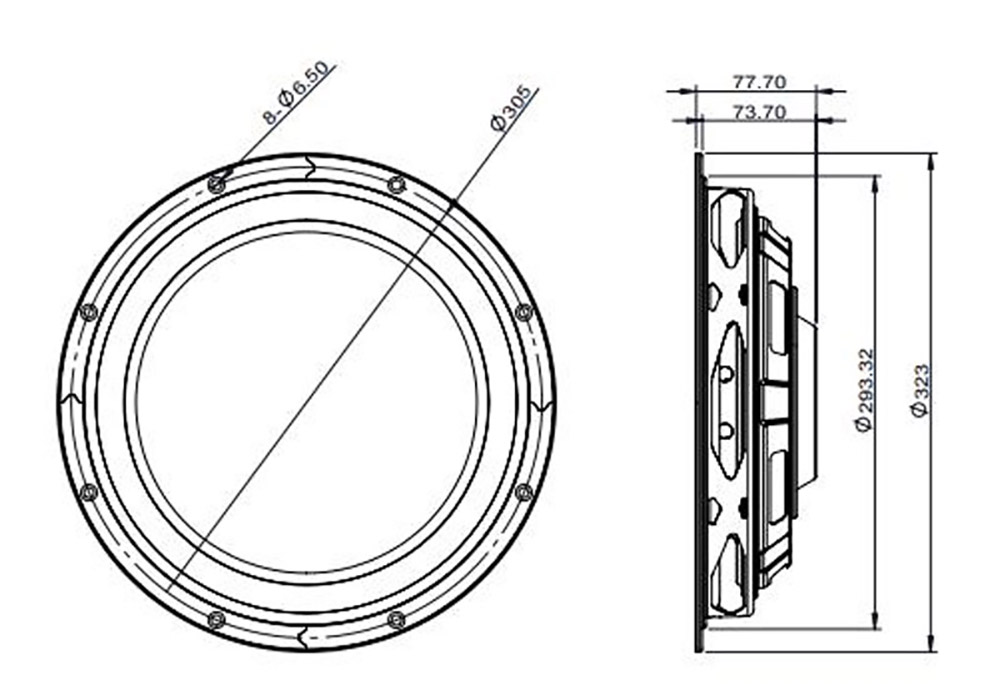

General specs Nominal Diameter: 12 in. Rated Impedance: 4 Ohm Power handling AES Power: 200 Watts Program Power: 400 Watts Voice Coil Diameter: 3 in. Winding wire: CCAW Former: kapton Winding height: 26.5 mm T/S Parameters Resonant frequency: 30 Hz Re: 3.6 ohm Qes: 1.16 Qms: 16 Qts: 1.08 Vas: 59.8 liters Sd: 506.7 cm2 Mms: 160.7 grams Bl: 9.9 Le: 1 mH Sensitivity: 84.2 dB Design details Surround Material: Rubber Cone material: GF Honeycomb Spider: Nomex Plate thickness: 8 mm Peak to peak linear cone Displacement 22.4 mm Overall diameter: 323 mm Bolt circle diameter: 305 mm Baffle cutout dia.: 293.5 mm Number of mounting holes: 8 Depth (flange to rear): 73.7 mm Net weight: 5.1 kg Ordering codes: 4 ohm version: Twiggy 12X4 ohm-470A Recone kits: Download: Spec download 2D drawing 3D model
======================================================================
PRODUCT CODE: Twiggy12X4-470A
======================================================================
--- ENCLOSURE RECOMMENDATIONS ---
======================================================================BE18
ENCLOSURE RECOMMENDATIONS: Twiggy12X4-470A
======================================================================
Driver: Twiggy12X4-470A (Twiggy12) — 12" Sub-woofer
Key T/S: Fs=30.0Hz, Qts=1.08, Vas=59.8L, Sens=84.2dB
Power: AES 200W / Cont 400W / Peak 800W
Xmax=9.25mm, Sd=506.7cm², Bl=9.9T·m
BH17 for hi-fi subwoofer systems, home theater, in-wall and under-seat installations, and similar domestic or automotive applications. It operates at 84.2 dB sensitivity (1W/1m). The driver features a compliant suspension design suited to moderate-volume enclosures with extended low-frequency response.
In a sealed enclosure, the driver is best suited to a net internal volume of approximately 20 liters, yielding an estimated –3 dB point of 60 Hz. The sealed alignment provides smooth, well-damped response with a predictable second-order roll-off below resonance, well suited to active crossover integration and DSP-controlled bass management.
The driver is intended for use with moderate amplification (approx. 200 W AES / 400 W continuous) and DSP control. A high-pass filter set at approximately 50 Hz is recommended to protect the driver below its usable range. Typical operating bandwidth is 60–100 Hz, making it suitable for integration with a mid-bass or full-range system.
This design is particularly effective in sealed enclosure systems used in hi-fi subwoofer systems, home theater, in-wall installations, automotive, and under-seat applications, where low-frequency extension and compact form factor are prioritized over high acoustic efficiency.
──────────────────────────────────────────────────────────────────────
======================================================================
PRODUCT CODE: Twiggy12X4-470A
======================================================================
--- ENCLOSURE RECOMMENDATIONS ---
======================================================================
ENCLOSURE RECOMMENDATIONS: Twiggy12X4-470A
======================================================================
Driver: Twiggy12X4-470A (Twiggy12) — 12" Sub-woofer
Key T/S: Fs=30.0Hz, Qts=1.08, Vas=59.8L, Sens=84.2dB
Power: AES 200W / Cont 400W / Peak 800W
Xmax=9.25mm, Sd=506.7cm², Bl=9.9T·m
RECOMMENDED ENCLOSURE TYPE: Sealed
Sealed Alignment (Qtc = 0.707)
Net Volume: 20 liters
Est. -3dB: 60 Hz
Notes: Sealed enclosure with Butterworth (Qtc=0.707) alignment
--- Summary ---
The Twiggy12X4-470A is a 12-inch sub-woofer driver designed for hi-fi subwoofer systems, home theater, in-wall and under-seat installations, and similar domestic or automotive applications. It operates at 84.2 dB sensitivity (1W/1m). The driver features a compliant suspension design suited to moderate-volume enclosures with extended low-frequency response.
In a sealed enclosure, the driver is best suited to a net internal volume of approximately 20 liters, yielding an estimated –3 dB point of 60 Hz. The sealed alignment provides smooth, well-damped response with a predictable second-order roll-off below resonance, well suited to active crossover integration and DSP-controlled bass management.
The driver is intended for use with moderate amplification (approx. 200 W AES / 400 W continuous) and DSP control. A high-pass filter set at approximately 50 Hz is recommended to protect the driver below its usable range. Typical operating bandwidth is 60–100 Hz, making it suitable for integration with a mid-bass or full-range system.
This design is particularly effective in sealed enclosure systems used in hi-fi subwoofer systems, home theater, in-wall installations, automotive, and under-seat applications, where low-frequency extension and compact form factor are prioritized over high acoustic efficiency.
──────────────────────────────────────────────────────────────────────
