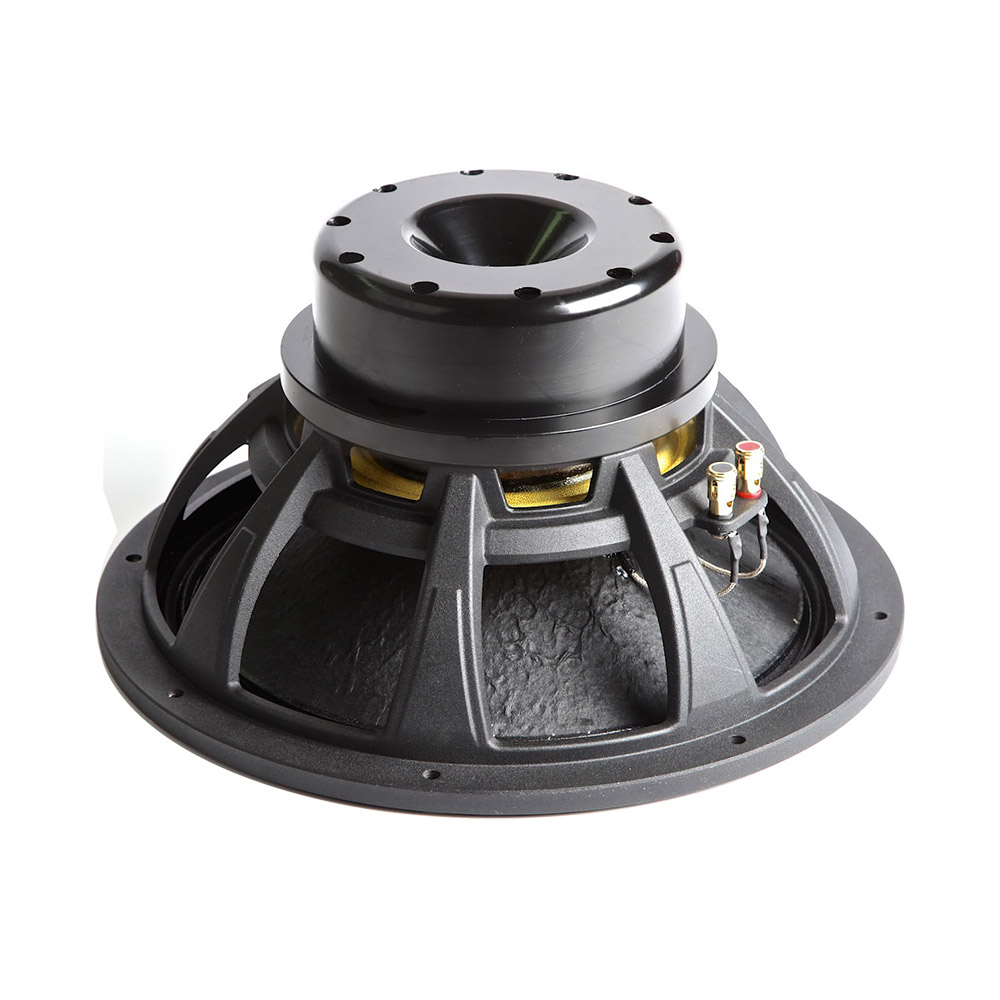

12" | 122NPW
Neodymium Woofer
Key features:
  • Carbon fiber filled paper cone

  • Double silicone spider

  • High power handling

Design notes:
    • The 122NPW is a high efficiency, (97 dB 1watt / 1 meter) 12-inch woofer with incredibly linear frequency response characteristics, extreme high power handling capability while generating low harmonic distortion artifacts. The 122NPW uses a lightweight carbon fiber loaded cone assembly along with a high excursion triple roll constant
    • geometry surround.This combination provides remarkable strength, high efficiency and a peak to peak maximum excursion of 19mm. Woofer features REDCATT double silicone sealed spider. Power HandlingAt the core of the 122NPW is it’s voice coil technology featuring a composite Polyimide former
    • material capable of withstanding peak temperatures in excess of 350degC, well beyond the thermal requirements of modern professional audio systems. The woofer cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
    • General specs
      Nominal Diameter:12 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:800 Watts
      Program Power:1,600 Watts
      Voice Coil
      Diameter:4 in.
      Winding wire:Copper
      Former:kapton
      Winding height:25.5 mm
    • T/S Parameters
      Resonant frequency:35 Hz
      Re:5.5 ohm
      Qes:0.17
      Qms:6.65
      Qts:0.17
      Vas:81.9 liters
      Sd:551 cm2
      Mms:81.9 grams
      Bl:27
      Le:1.27 mH
      Sensitivity:96.88 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:14 mm
      Peak to peak linear cone Displacement19.2 mm
      Overall diameter:322 mm
      Bolt circle diameter:302 mm
      Baffle cutout dia.:287 mm
      Number of mounting holes:8
      Depth (flange to rear):154 mm
      Net weight:7.6 kg
    • Ordering codes:
      8 ohm version:122NPWX8-102
      Recone kits:
      Download:
      Spec download

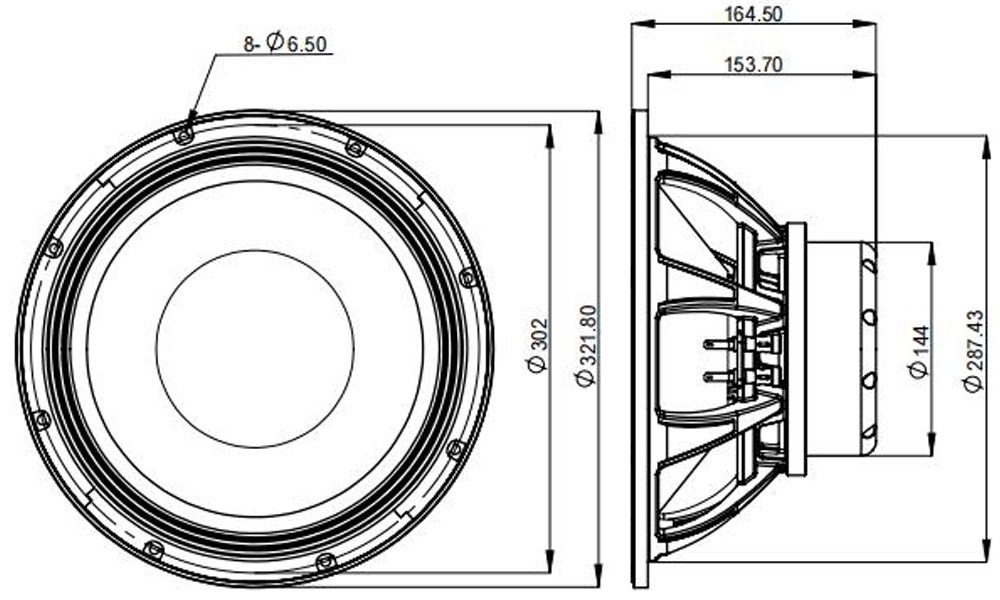

      2D drawing
      3D model

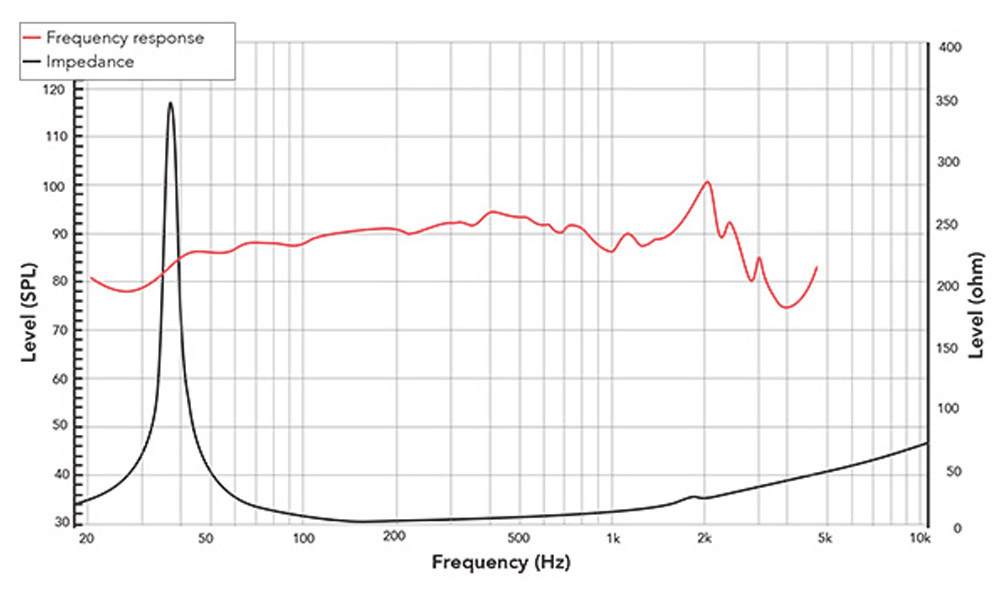

Frequency response & lmpedance
